Steel DN Mate
Steel DN Mate Black T316 Stainless Steel Left&Right Handed Thread Swage Lag Screws for Wood Post of 1/8" Cable Railing Kit, 30 Pack Deck Railing/Stair Railing, DIY Baluster Hardware, Wrench Included
Steel DN Mate Black T316 Stainless Steel Left&Right Handed Thread Swage Lag Screws for Wood Post of 1/8" Cable Railing Kit, 30 Pack Deck Railing/Stair Railing, DIY Baluster Hardware, Wrench Included
Couldn't load pickup availability
About this item

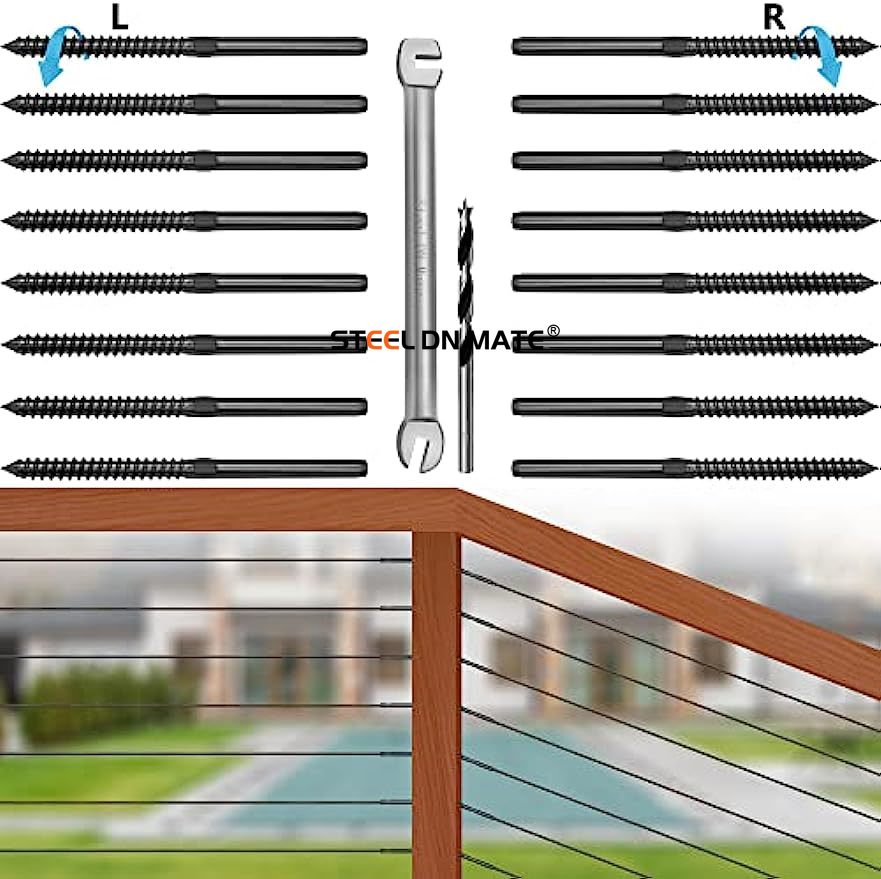

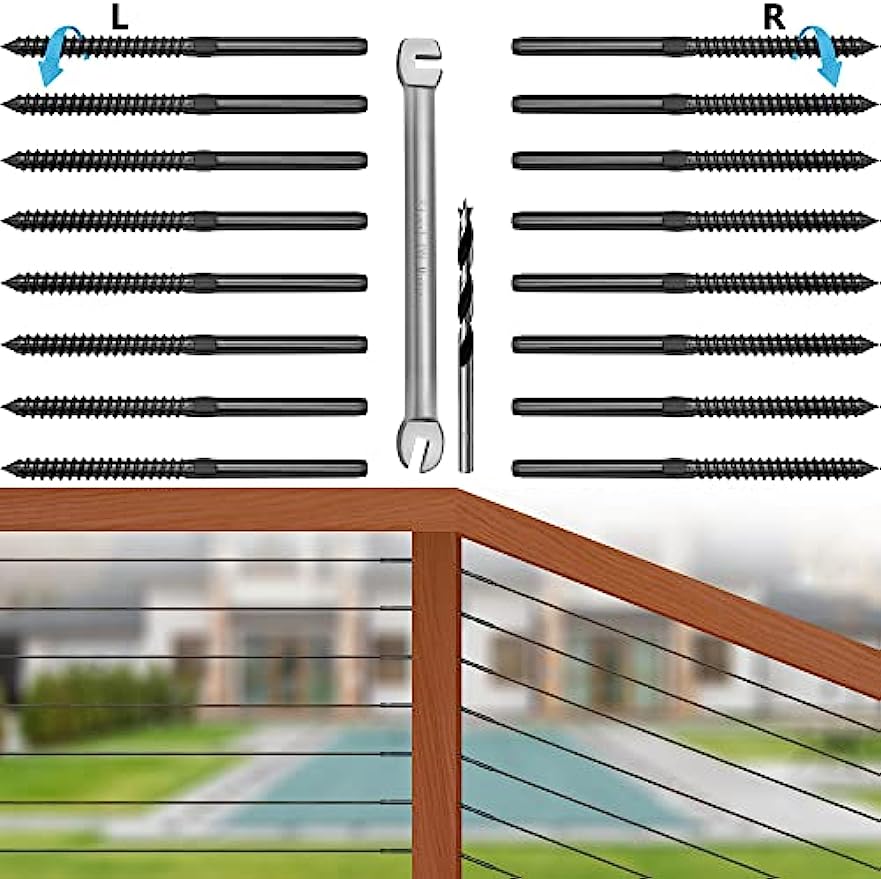

- New BLACK deck railing design, clean and elegant. This cable railing kit includes 15 pcs left, 15 pcs right hand thread lag screws, wrench and 1 drill bit. Stainless Steel T316 material, anti-rust ,water and corrosion，marine Grade, good for indoor or outdoor usage.
- This deck railing hardware fit 1/8" OD cable of railing system. The thread screws are designed for timber/wood post. It will rotate the wire rope in the same direction, which resolves the problem of twisting the attached wire. Products without Left & right will bring you hassle and might damage the cable.
- Length of cable should be 1-1/2" shorter than wood surface distance; if you want to DIY a high quality cable railing system, standard 1/8" (OD) cable which was made of T316-stainless steel is recommended.
- By the design of Right&left handed thread, of course it can be used to adjust the tension of attached cable, so the turnbuckles are not needed in the railing system. And this cable railing won’t be easily unfixed or destroyeded.
- The lag screws could be drilled into wood to adjust the tightness without extra turnbuckle or tensioner. Deck and Stair Cable railing system is not only simple but also won't block your view. Hydraulic crimper is needed to connect the cable to lag screws.
Product Description
Cable Raililng Hardware for level or vertical railings-- All in One Stop Shopping station by Steel DN Mate
Are you looking for a concise railing project system?
Look here! It is clean look, easy to install and maintain;
In addition, it is a simple structure with less problem to happen.

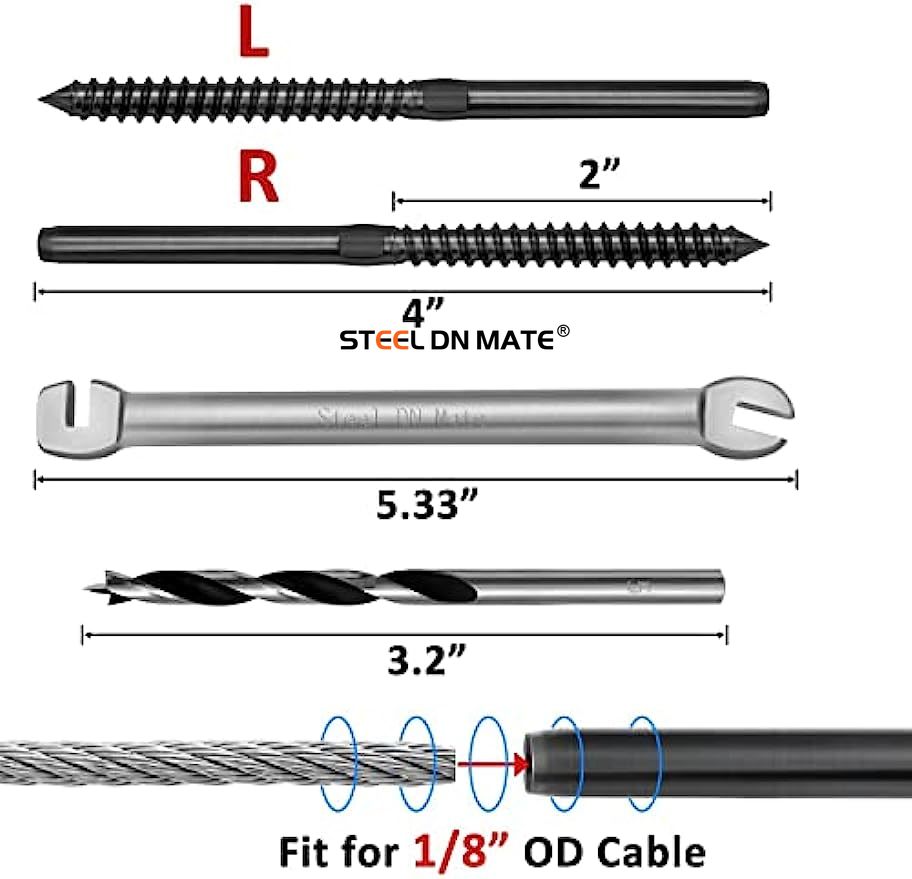

Size
Package includes
- L - screws：15 Pcs
- R - screws：15 Pcs
- Wood drill bit：1 Piece
- Wrench: 1 Piece
- 15 Cable Runs
- 10 Years warrant-y
- Life-time service
Best quality Swage Lag Screws
fits for 1/8" cable railing system
T316 Stainless Steel material, anti-rust, water and corrosion, marine grade, good for outdoor/indoor cable railing;
The Left & Right handed thread swage lag screws are simple fittings for cable railing system, very easy to install.
- Stable and Durable
- Clear look
- Never rust
- Easy to install
- Designed for timber/wood post
Installation Tips:

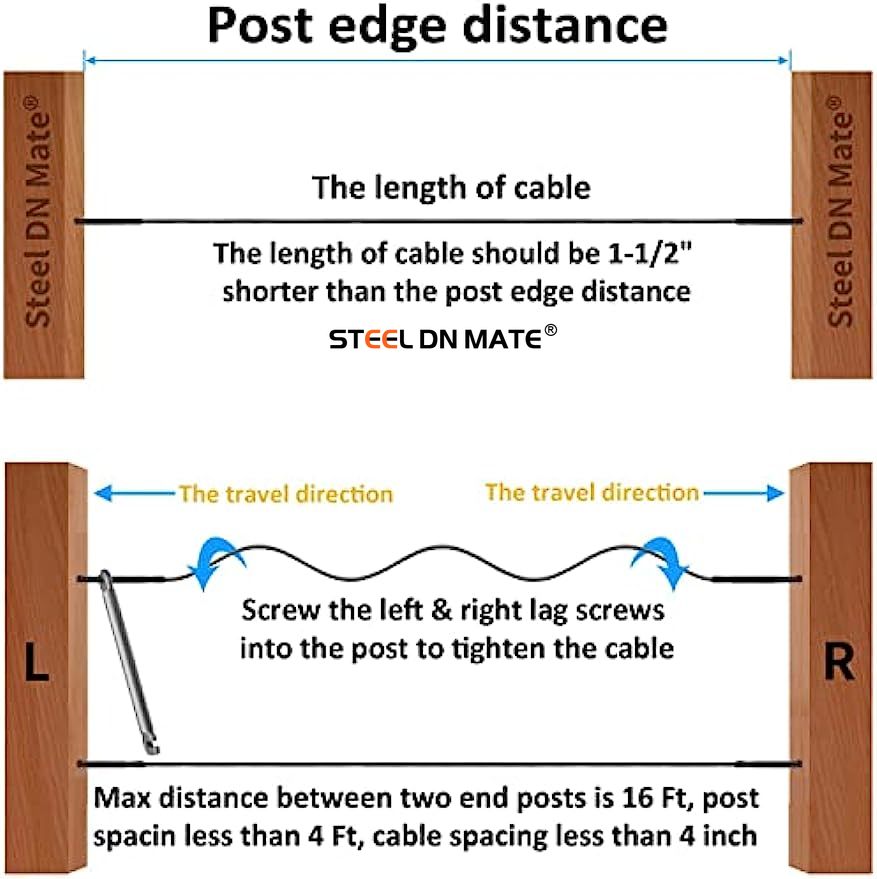

- Cable Length could range from1-1/8"（tight） to 1-1/2"（tightest） shorter than wood distance.
- Screw the Left & Right handed swage lag screws on both ends of the cable into the holes of the wood post at the same time.
- Recommended the maximum distance between two end posts is 16 Ft.
- Recommended that the post spacing between two posts is 4ft.
- Recommended that the spacing between the upper and lower screw holes is 4".
Note: Some states may have special regulations, check with your local agency for building codes.

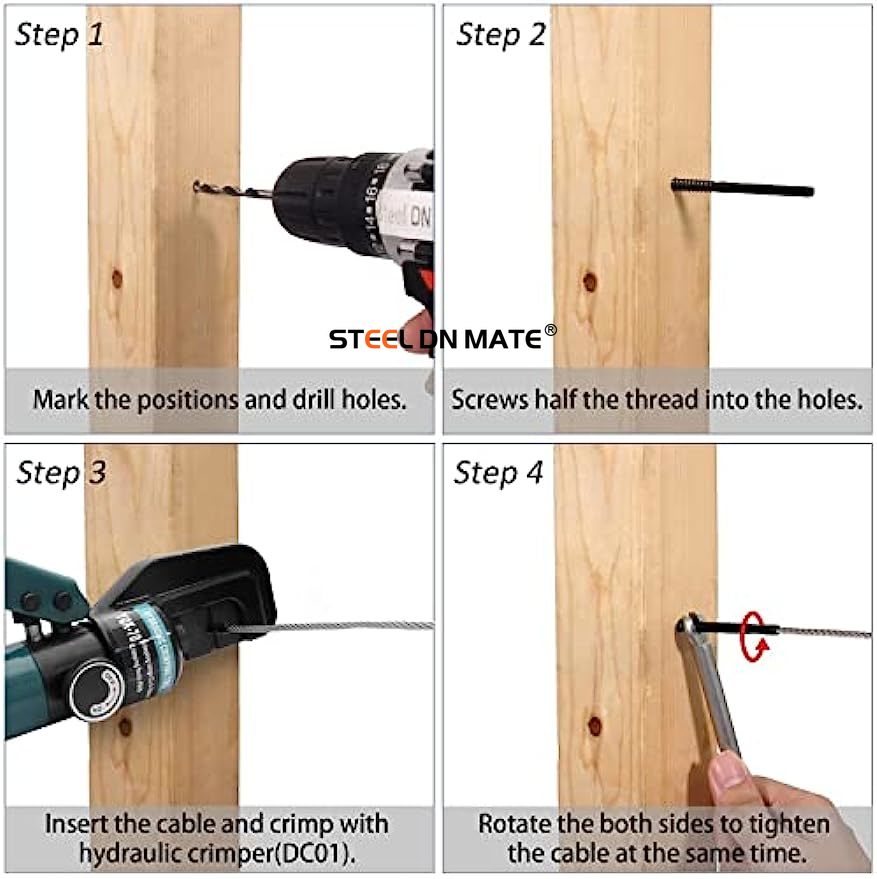

Easy to install-
|
|
|
|
|---|---|---|
Step 1Drill holes, then screws half threads of the Left & right lag screws into the holes to wood posts which have been drilled. Note, leave half threads outside of the post. |
Step 2Insert the measured wire rope, then swage the cable to the screws with the crimping tool. To make it more stable, it is recommended to swage each screw twice. |
Step 3Use our specially Wrench, turn the right lag screws into the right post in the same direction at the same time. This way is to avoid cable twisted. |
FEASTURES
|
|
|
|
|---|---|---|
Cost-effective-Deck Cable Railing SystemIt is simple fittings, it can replace the complicated turnbuckle and other cable kits. Very easy to install and build cable railing system by your own self. |
Elegant Look-Stair Railing KitClear look, it won't block your view, the perfect inexpensive cable railing system, fit for stair, level, vertical cable railing project. A great choice for minimalist style. |

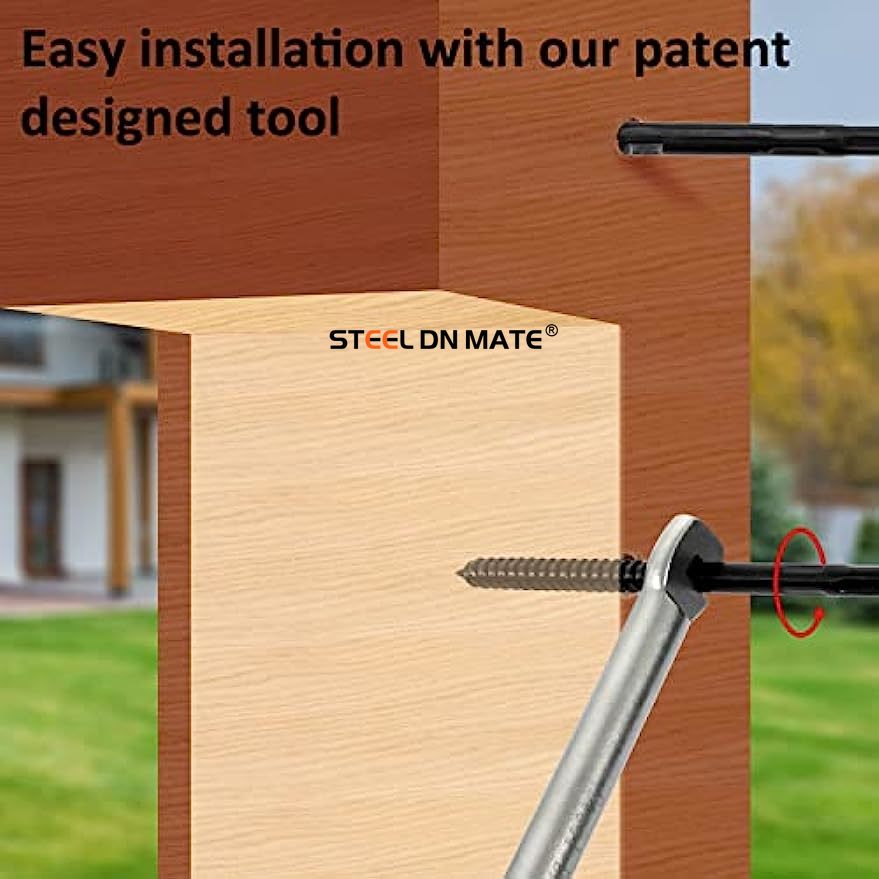

Special Tool-Easy InstallationThickness of generally wrench opening doesn’t fit lag screws well, so we develop a specially Wrench to make this job very easy and save strength. |
One-stop shopping store-deck cable railing system
Must have:
1) 1/8 Stainless Steel Cable, search it : B07YY46T7M, or Model number DW40, we have different length from 110ft to 1000ft.

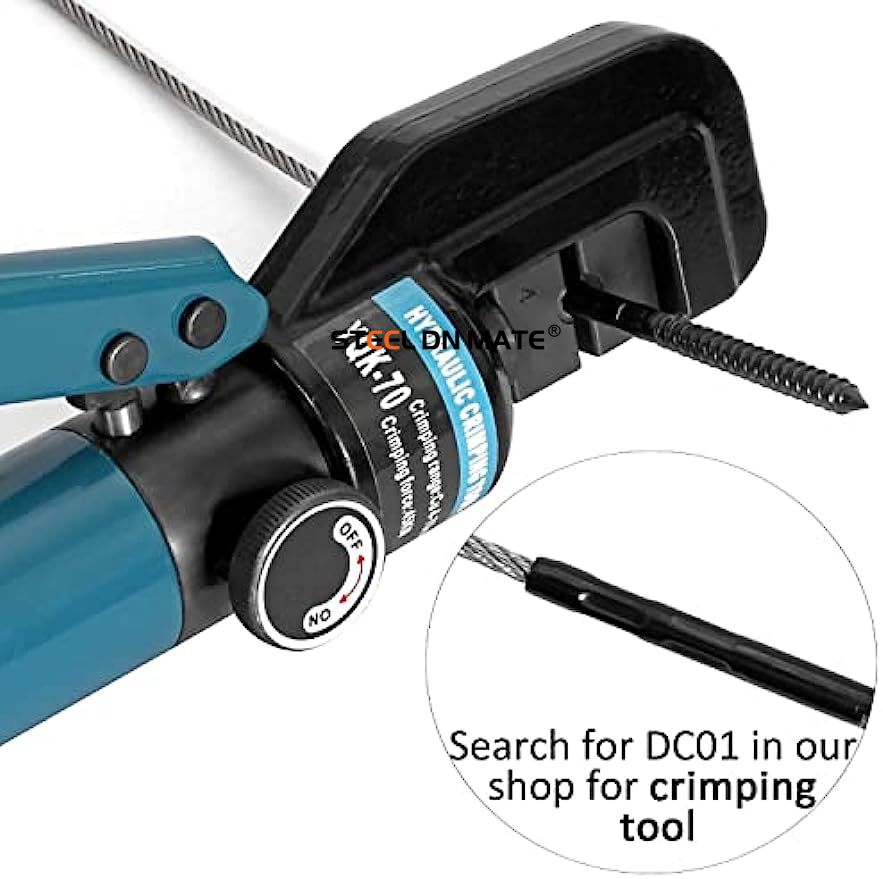

2) Hydraulic crimper: B08BQVKM2Z, or Model number DC01
In the above picture, it is a level cable railing with stair angle cable railing, we use black swage lag screws, level protecor sleeves, search: B09F6B7SGZ or Model number DP10; and angle 30 degree protector sleeves, search B08L3H69R6 or Model number DT05.
We can also use just swage lag screws only to complete this cable railing systm without the sleeves.
This swage lag screws system is not only inexpensive, but also it is simple with elegant look, and won’t be easily unfixed or destroyed....
To build your own cable railing project
We offers different installation cable railing tools, please scroll down to get other items from Steel DN Mate that you need:
| Swage Lag Screws | 1/8" Steel Cable | Hydraulic Crimper | Angle Beveled Protector Sleeves | Level Protector Sleeves | 45 30 90 Degree Drill Guide | |
|---|---|---|---|---|---|---|
| Material | T316 | T316 | Steel | T316 | T316 | Metal |
| Rust-proof | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| For 1/8” cable | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Indoor / Outdoor | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Fit for | Wood Instructure | All | All | Wood Instructure | Wood Instructure | Wood Instructure |
| Color | Black | Silver | Silver | Silver | Silver | Orange |
