Steel DN Mate

Steel DN Mate 80 Pack T316 Stainless Steel Right&Left Handed Thread Swage Lag Screws for Wood Post of 1/8" Steel Cable Railing Kit, Cable Railing Hardware, DIY Wood Baluster, Wrench Included DM40

Steel DN Mate 80 Pack T316 Stainless Steel Right&Left Handed Thread Swage Lag Screws for Wood Post of 1/8" Steel Cable Railing Kit, Cable Railing Hardware, DIY Wood Baluster, Wrench Included DM40

Regular price $53.99 USD
Regular price $66.99 USD Sale price $53.99 USD
Sale Sold out
Shipping calculated at checkout.
Size

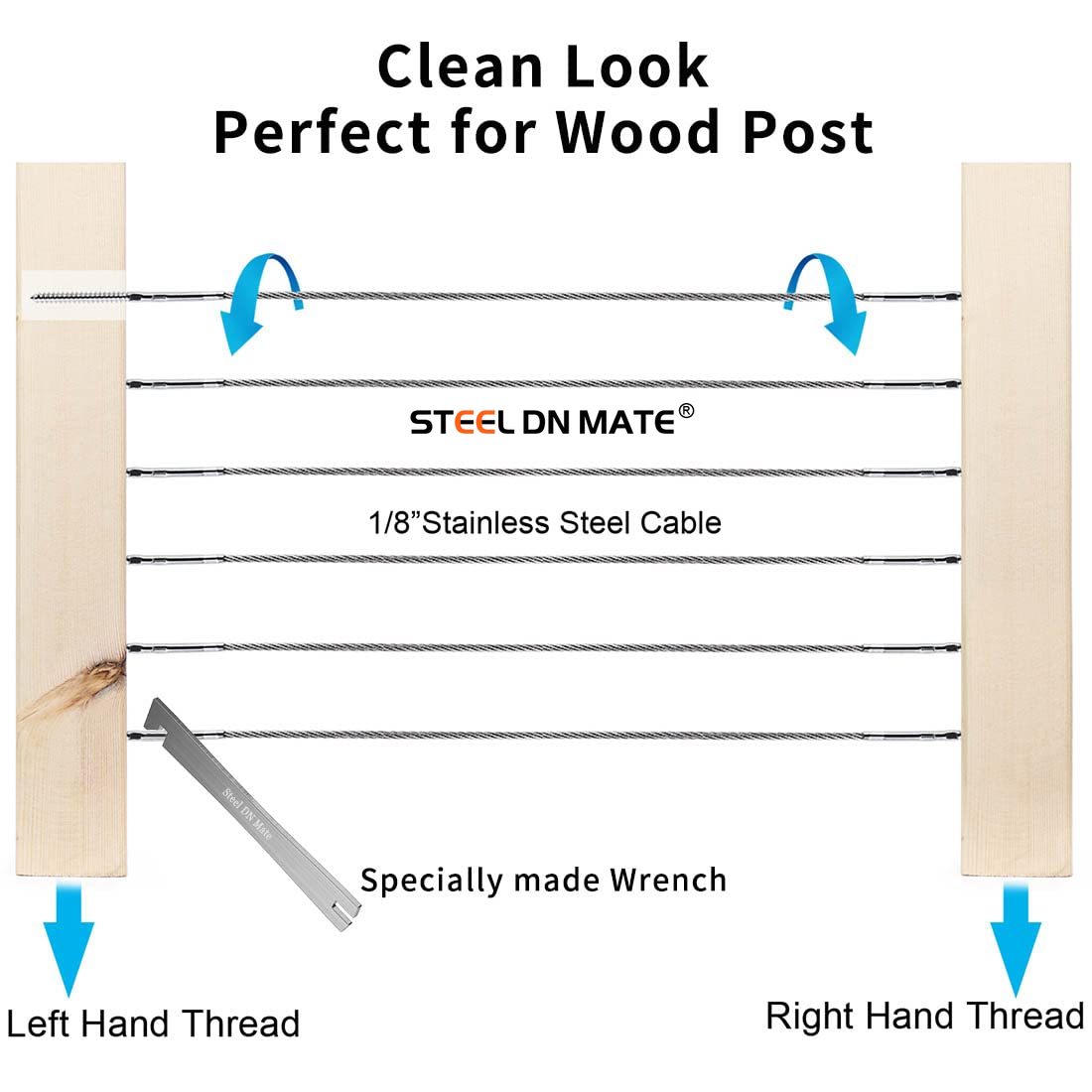

New design of deck cable railing kit, clean and elegant. This deck railing kit made of stainless steel T316 material, anti-rust, water, and corrosion, marine Grade, good for indoor or outdoor usage. It is suitable to DIY your stair railings, terrace railings, and deck railings. With our new made wrench, installation becomes much easier.

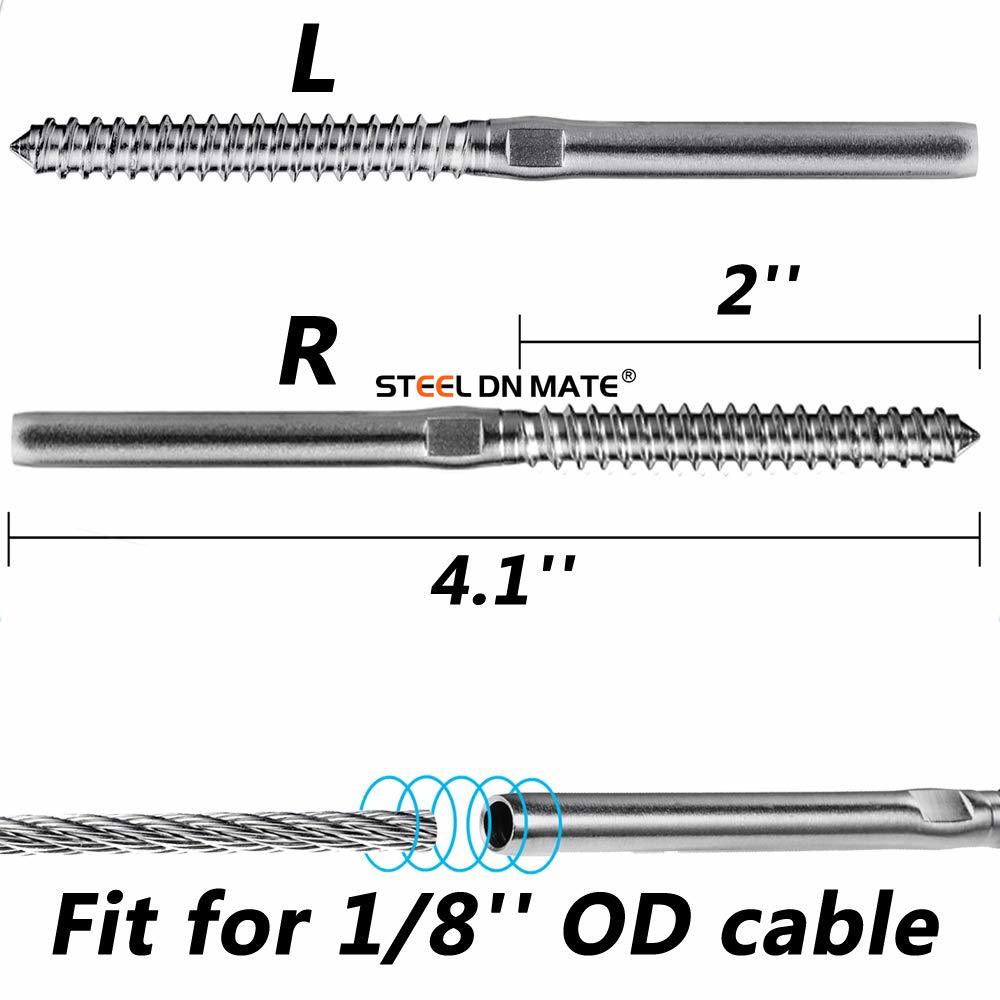

This deck railing hardware fits 1/8" OD cable of the cable deck railing system. The thread lag screws are designed for timber/wood posts. It will rotate the wire rope in the same direction, which resolves the problem of twisting the attached wire. This design can make wire deck railing hardware fits last longer.

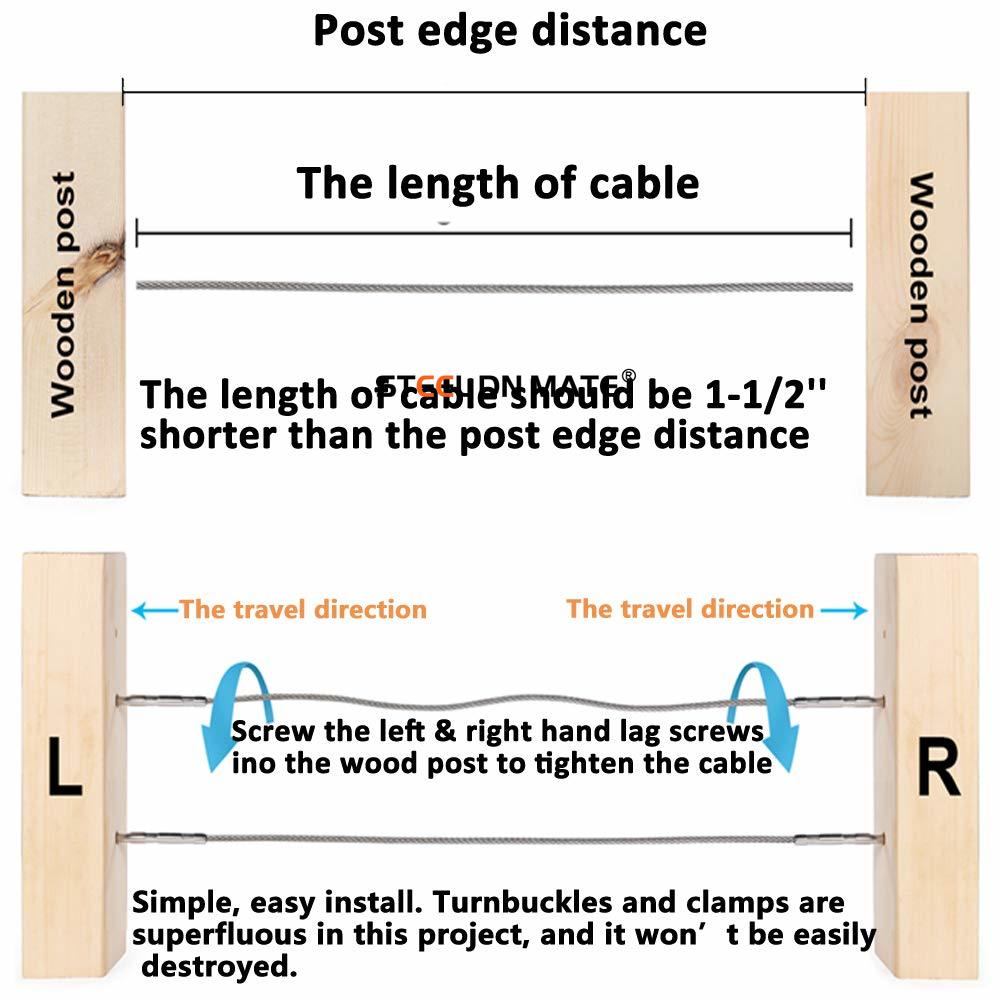

Length of cable should be 1-1/2" shorter than wood surface distance(as shown in pic.5); if you want to build a high-quality cable railing system, standard 1/8" (OD) cable which was made of T316-stainless steel is recommended.

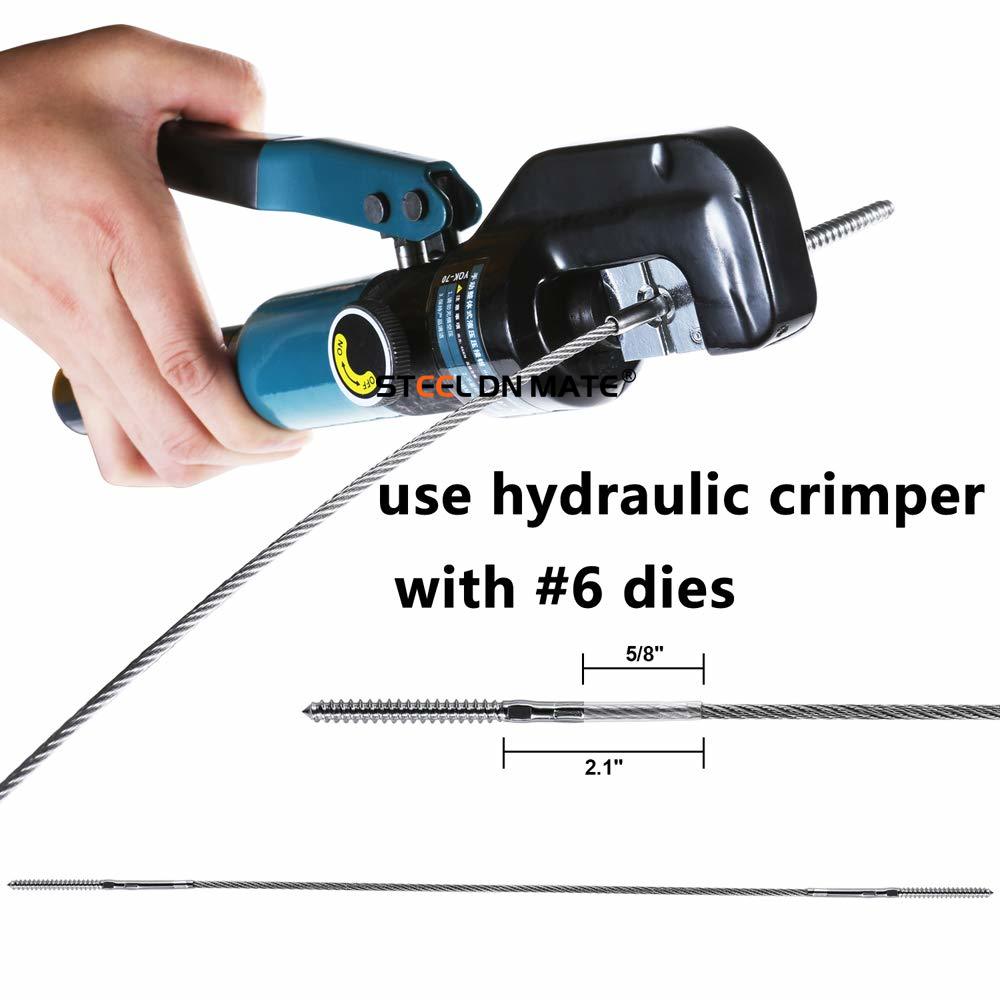

The lag screws could be drilled into wood to adjust the tightness without an extra turnbuckle or tensioner. Deck and Stair Cable railing system is not only simple but also won't block your view. A hydraulic crimper (Search “B08BQVKM2Z” on Amazon) is needed to connect the stainless steel cable to lag screws.
We have perfect after-sale service. Steel DN Mate offers with a 10-year warranty Free Service. --If you are a new beginner or not sure how to do it, please contact us by clicking on "by Steel DN Mate" below "add to cart." Let's help you, then you can follow the shopping list to buy all the items needed in 1 minute.

Product Description

1
1

Left & Right Thread Swage Lag Screws

2
2

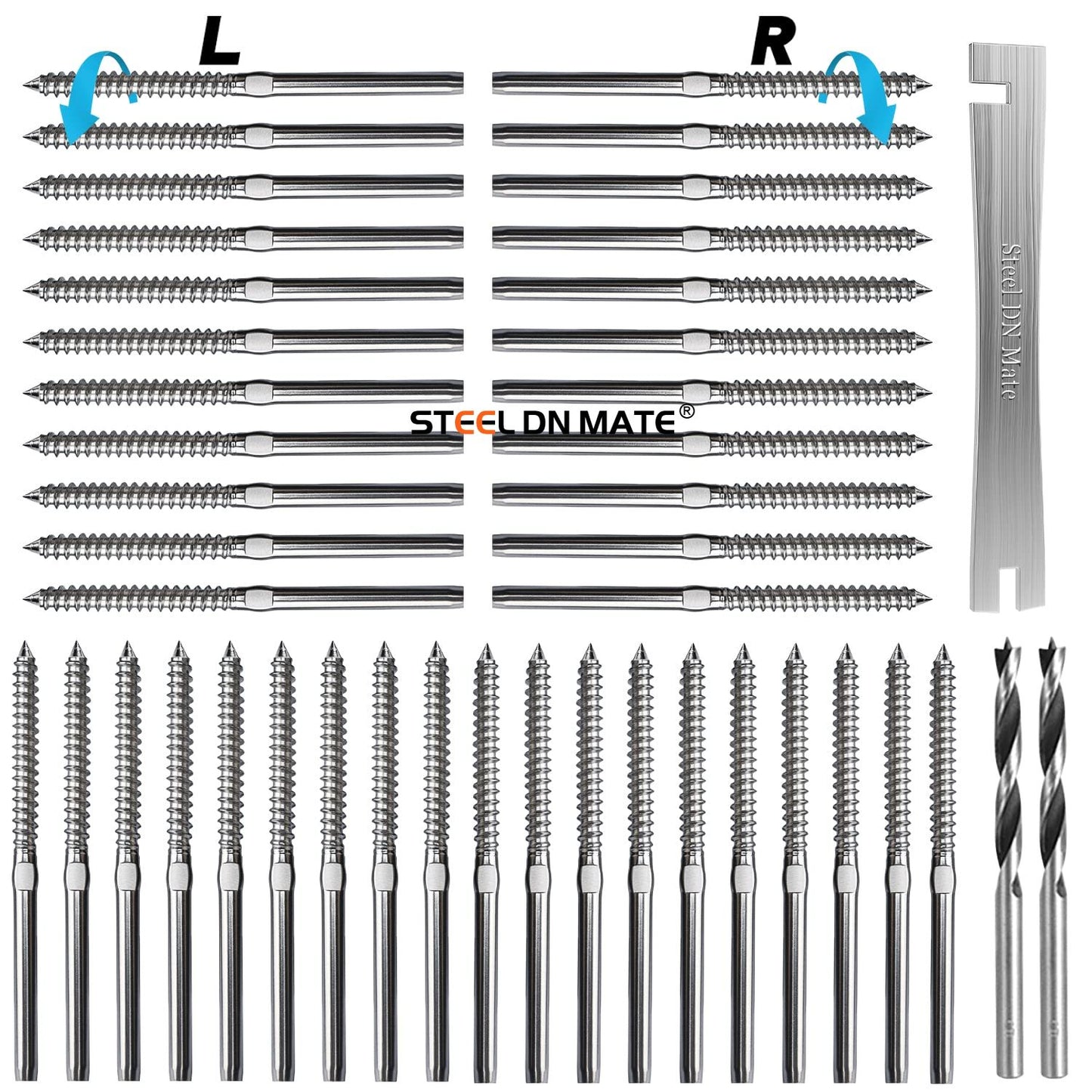

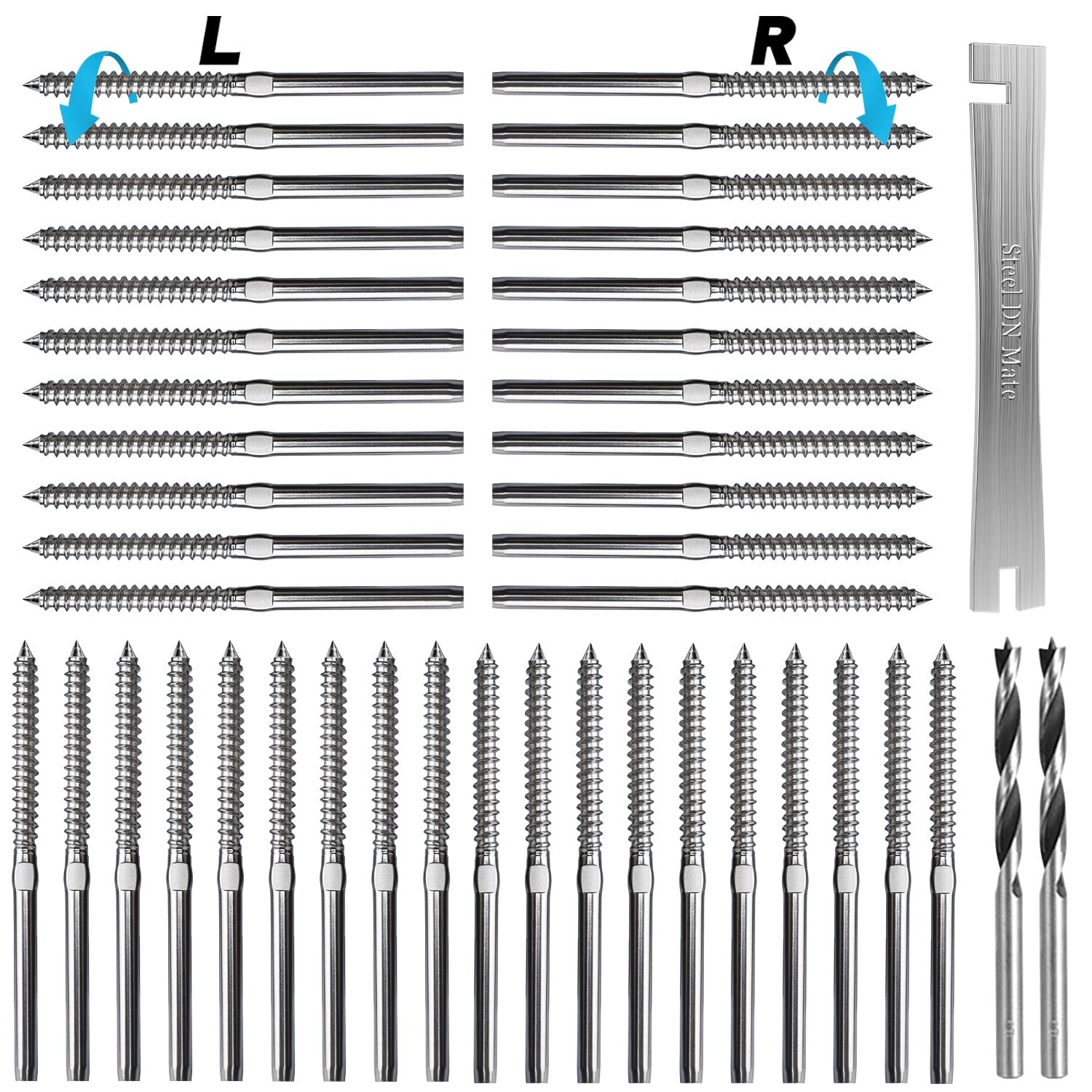

Package includes:



  • left handed thread lag screw:40 Pcs
  • right handed thread lag screw:40 Pcs
  • OD drill bit:2 Pcs
  • Wrench: 1



Steel DN Mate---BEST Quality Metal Handed Thread Swage Lag Screws

T316 Stainless Steel material, anti-rust ,water and corrosion,marine Grade, good for indoor or outdoor usage.

This deck railing hardware fit 1/8" OD cable of railing system.

The thread screws are designed for timber/wood post.

  • Stable and Durable
  • Clear look
  • Easy to install


Installation



1
1





2
2





3
3



Step 1

Measure the distance for the 2 wood post surface twice, and cut once. The length of cable should be 1-1/2 inch shorter than the distance of the two posts;

Step 2

Connect the cable to the lag screws, swaging the screw with Steel DN Mate hydraulic crimper, one end with left hand thread and the other end with right hand thread;

Step 3

Screw the lag screws into the pilot holes in the post which have been drilled by the drill bit to adjust and tighten the cable. Turn the right & left woodscews thread in the same direction.



CONSEQUENT

1
1

1
2
3
2
5
5
  T316 Stainless Steel Lag Screws T316 Stainless Steel 1/8'' Wire Cable T316 Stainless Steel Hardware kit 30 ° Bevel Protector Sleeves T316 Stainless Steel Protector Sleeves Steel DN Mate Hydraulic crimper
Material T316 T316 T316 T316 T316 Steel
Rust-proof
Fit for Wood Instructure All Wood Instructure All Wood Instructure All
For 1/8” cable
Indoor use
Outdoor use
