Steel DN Mate 60 Pack T316 Stainless Steel Left&Right Handed Thread Swage Lag Screws for Wood Post of 1/8" Deck Railing Kit, Cable Railing/Stair Deck Railing, DIY Hardware Kit, Wrench Included DM60

Steel DN Mate 60 Pack T316 Stainless Steel Left&Right Handed Thread Swage Lag Screws for Wood Post of 1/8" Deck Railing Kit, Cable Railing/Stair Deck Railing, DIY Hardware Kit, Wrench Included DM60

$35.55 USD
$47.79 USD $35.55 USD
Sale Sold out
Shipping calculated at checkout.
Color
Size
Number of Items
New deck railing design, clean and elegant. This cable railing kit includes 30 pcs left, 30pcs right hand thread lag screws, 1 patent design wrench, and 2 drill bits. Stainless Steel T316 material, anti-rust ,water and corrosion, marine Grade, good for indoor or outdoor usage. With our new made wrench, installation becomes much easier.
This deck railing hardware fit 1/8" OD cable of railing system. The thread screws are designed for timber/wood post. It will rotate the wire rope in the same direction, which resolves the problem of twisting the attached wire. Products without Left & right will bring you hassle and might damage the cable.

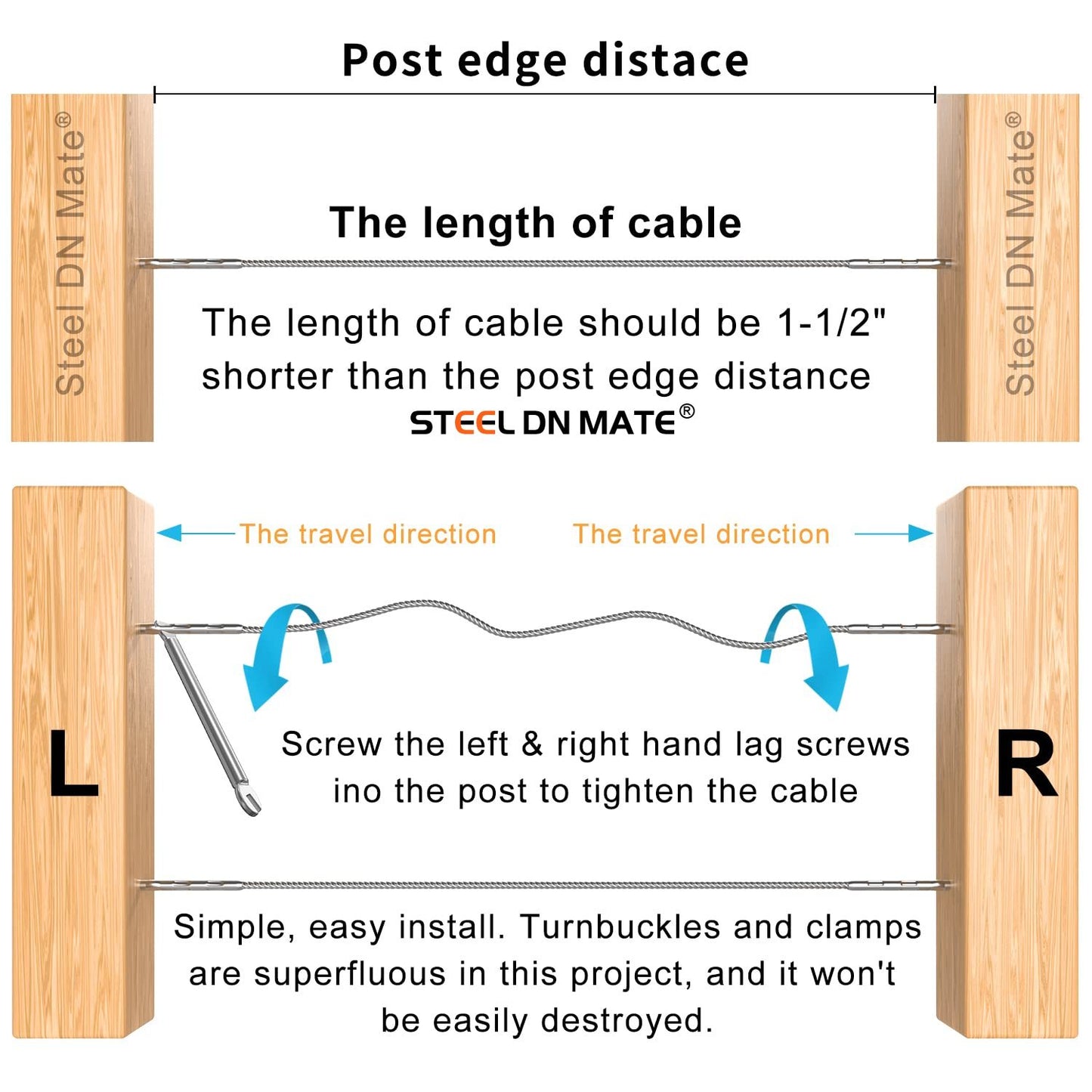

Length of cable should be 1-1/2" shorter than wood surface distance（as shown in pic.4); if you want to DIY a high quality cable railing system, standard 1/8" (OD) cable which was made of T316-stainless steel is recommended.
By the design of Right & left handed thread, of course it can be used to adjust the tension of attached cable, so the turnbuckles are not needed in the railing system. And this cable railing won’t be easily unfixed or destroyeded. We suggest the following cable rail kits for a cost-effective cable railing system: 1/8" lag screw DM60, 1/8" steel cable and cutter DW40, hydraulic Crimper DC01. For angle stair railing, drill jig DG12 is recommended. You can scroll down this page to find them, or search on amazon, steel dn mate+ model number, like steel dn mate DW40.
The lag screws could be drilled into wood to adjust the tightness without extra turnbuckle or tensioner. Deck and Stair Cable railing system is not only simple but also won't block your view. We offer perfect free design before sales, and 10 years warranty and lifetime after sales.

Product Description

木螺丝尺寸1
木螺丝尺寸1

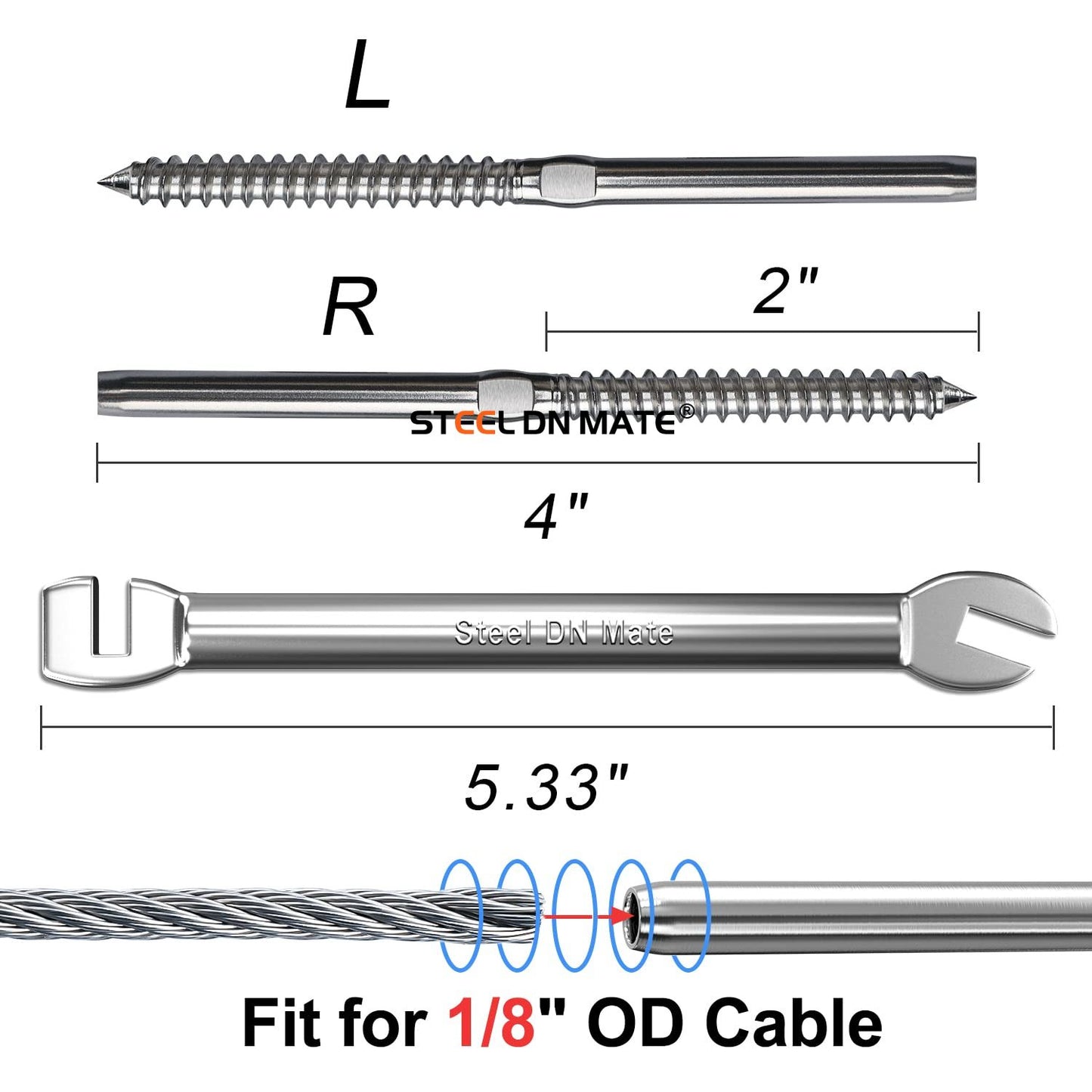

This deck railing hardware fits 1/8" OD cable of railing system

1
1

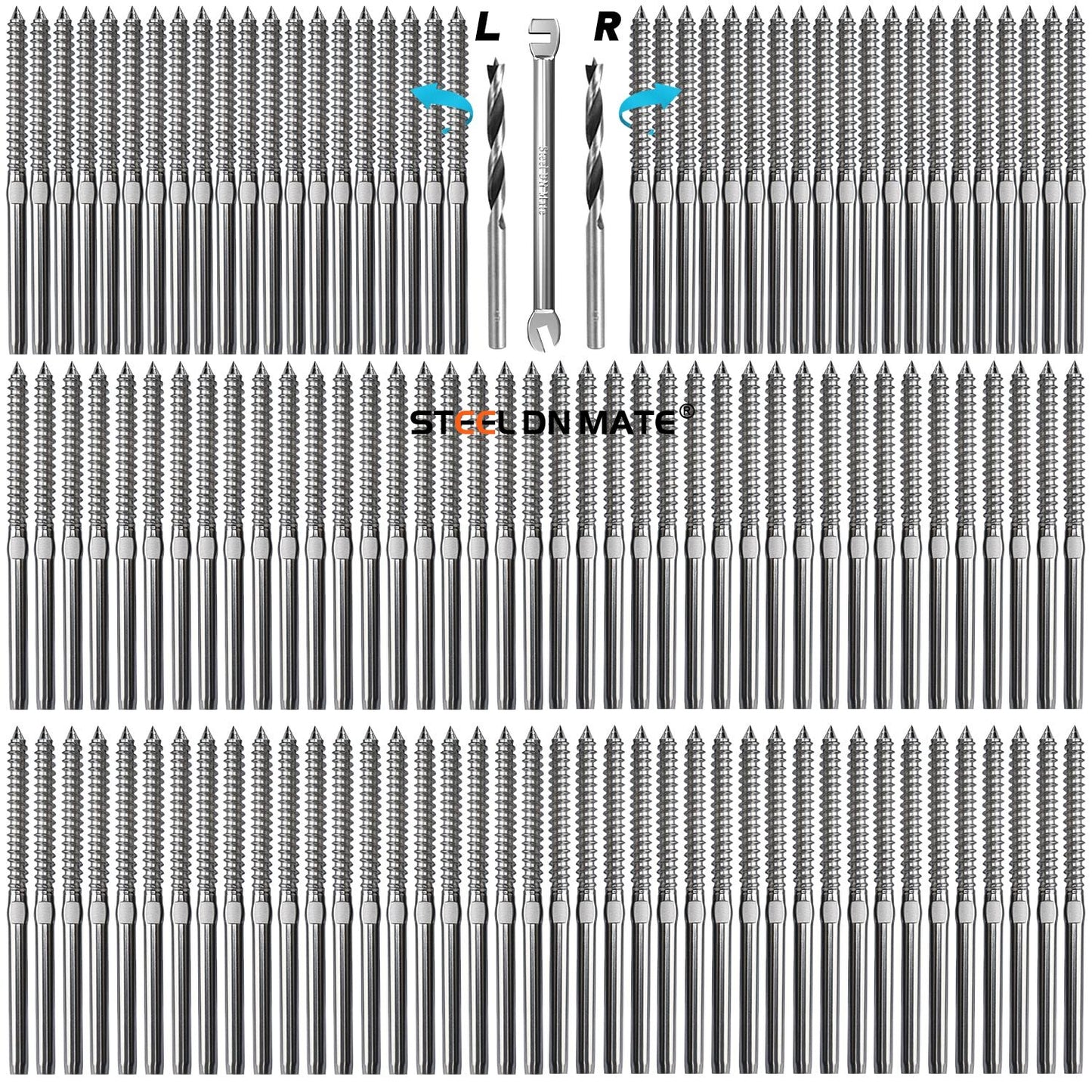

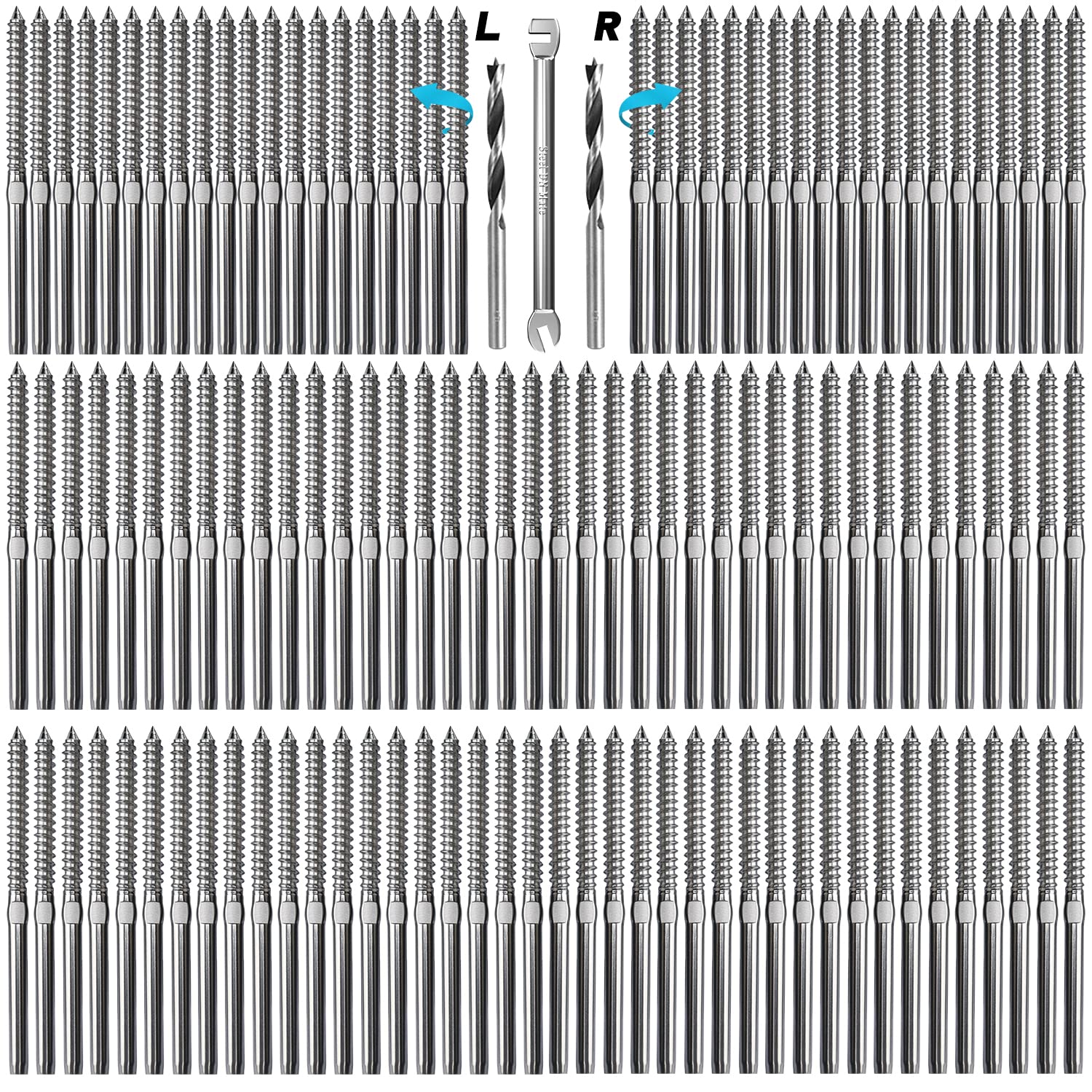

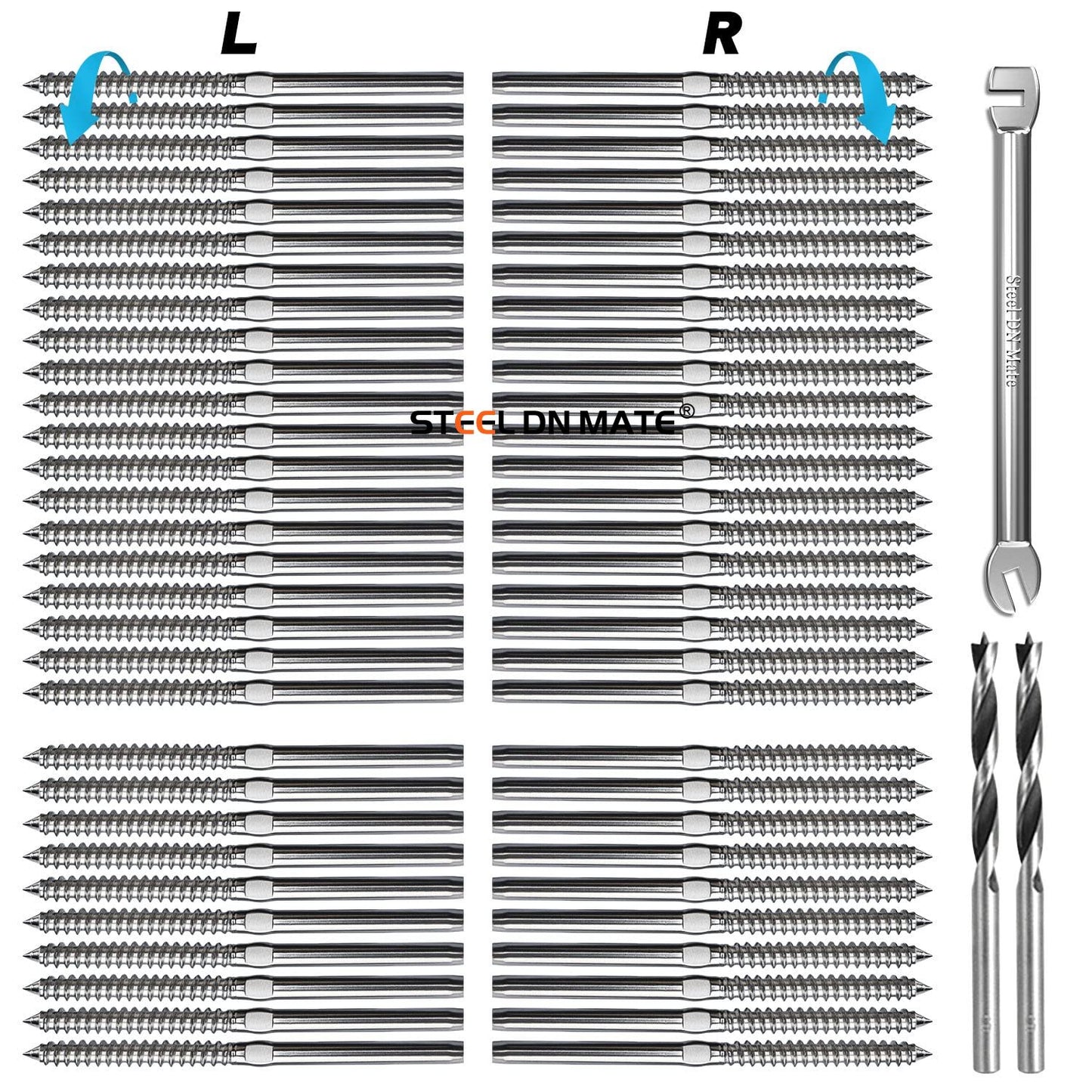

Package includes：



  • left handed thread lag screw：30 Pcs
  • right handed thread lag screw：30 Pcs
  • OD drill bit：2 Pcs
  • Wrench: 1 Piece



  • 10 Years warrant-y
  • Life-time service
  • 30 Cable Runs

Steel DN Mate---BEST Quality Metal Handed Thread Swage Lag Screws

Left & Right Thread Swage Lag Screws

T316 Stainless Steel cable railing kit, anti-rust, water and corrosion, marine grade, it is perfect to use in indoor/outdoor railing projects, even coastal areas, fit for level, angled and vertical cable railing for homeowners and contractors.

The 2 swage screws replace the complex turnbuckles to make it sturdy, inexpensive, aesthetically sleek look, the best cable railing solution!

Only 3 railing kits you must have:

1) Hydraulic Crimper DC01

2) 1/8" Steel Cable DW40

3) Swage lag screws DM30

  • Stable and Durable
  • Elegant clear Look
  • Easy to install
  • The thread screws are designed for timber/wood post with 1/8 stainless steel cable

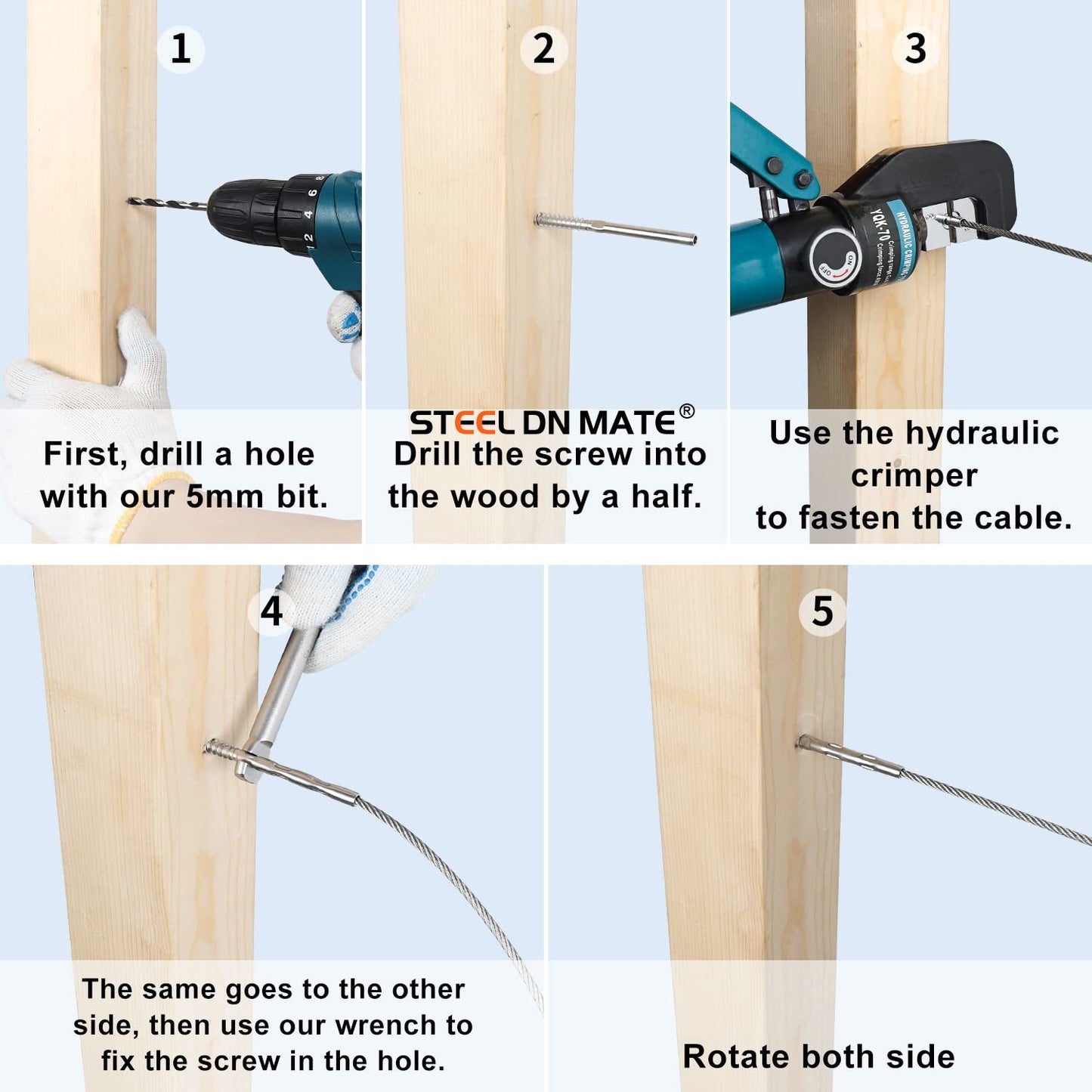

Installation Tips



1
1





2
2





3
3



Step 1

Drill half threads of the Left & right lag screws into the pilot holes in the posts which have been drilled; then swage the cable to the screws. Note, leave half threads outside of the post. Crimp with Die NO.4 or No.6.

Step 2

Turn the left lag screws thread in to the left post; Steel DN Mate develop a specially Wrench to make this job very easy and save strength.

Step 3

Turn the right lag screws into the right post in the same direction at the pretty the same time. This way is to avoid cable twisted.


FEASTURES



4
4





5
5





3
3



Easy installation-Deck Railing Kit

It is very easy and simple with our tools and user guide to build steel cable railing kit by your own self . One man could DIY the project.

You may be not skillful, but you will end up with a professional look.

Weatherproof-Cable Railing Hardware

The material is Marine Grade T316, excellent resistance to rust, ideal for porch, stair,decks, patios, and balconies etc, withstand exposure to saltwater, costal and other harsh weather conditions.

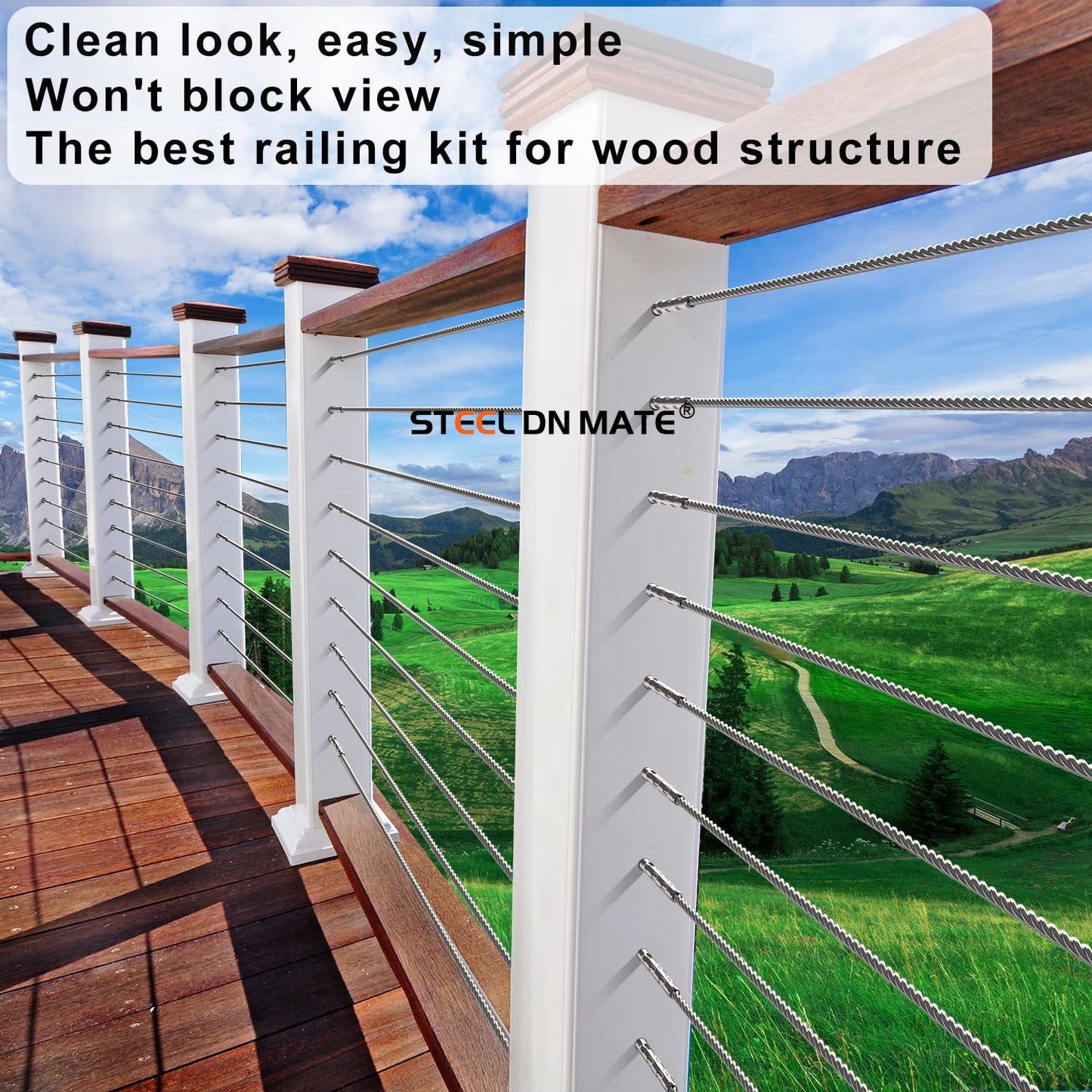

Elegant Cleanest Look-Stair Railing Kit

Clear look, it won't block your view, the best inexpensive cable railing system, fits for stair, level, vertical cable railing system. This system is not only inexpensive, but also it won’t be easily unfixed or destroyed.

3
3

Frequently bought together for a Cost Effective Cable railing System

One stop shopping from Steel DN Mate. Material list for cable railing system:

Left&right swage lag screws -- DM50

Level protector sleeves --DE05

Angle protector sleeves -- DT03

Drill jig guide -- DG12

Steel wire cable and cutter --DW01

Hydraulic crimping tool -- DC01

Woodpost cable railing is a simplified cable railing system with a terrific nice look. It replaces the complex turnbuckle with 2 lag screws, which not only make it easier install but also inexpensive.

FAQ



  • Cable Length could range from1-1/8"（tight) to 1-1/2"（tightest） shorter than wood distance.
  • Recommend the maximum distance between two end posts is 16 Feet.
  • Recommend that the post spacing between two posts is 3 to 4feet.
  • Recommend that the spacing between the cable space (upper and lower screw holes) is 4".



Note: Some states may have special regulations, check with your local administration for building codes.


10对
20对
25对
30对
40对
50对
  1/8” Swage Lag Screws 1/8” Swage Lag Screws 1/8” Swage Lag Screws 1/8” Swage Lag Screws 1/8” Swage Lag Screws SDNM T316 Stainless Steel Lag Screws
Quantity 30 Packs 40 Packs 50 Packs 60 Packs 80 Packs 100 Packs
Color Silver Silver Silver Silver Silver Silver


black
2
斜坡套筒小图点
11
5
5
  Black Lag Screws T316 Steel T316 Stainless Steel 1/8'' Wire Cable 30 Degree Angle Stair Protector Sleeves 30 45 90 degree Angle Drill Jig Guide Level Protector Sleeves Steel DN Mate Hydraulic crimper
Material T316 T316 T316 Metal T316 Steel
Rust-proof
Fit for Wood Instructure All Wood Instructure Wood Instructure Wood Instructure All
For 1/8” cable
Indoor use
Outdoor use
Color Black Silver Silver Orange Silver
