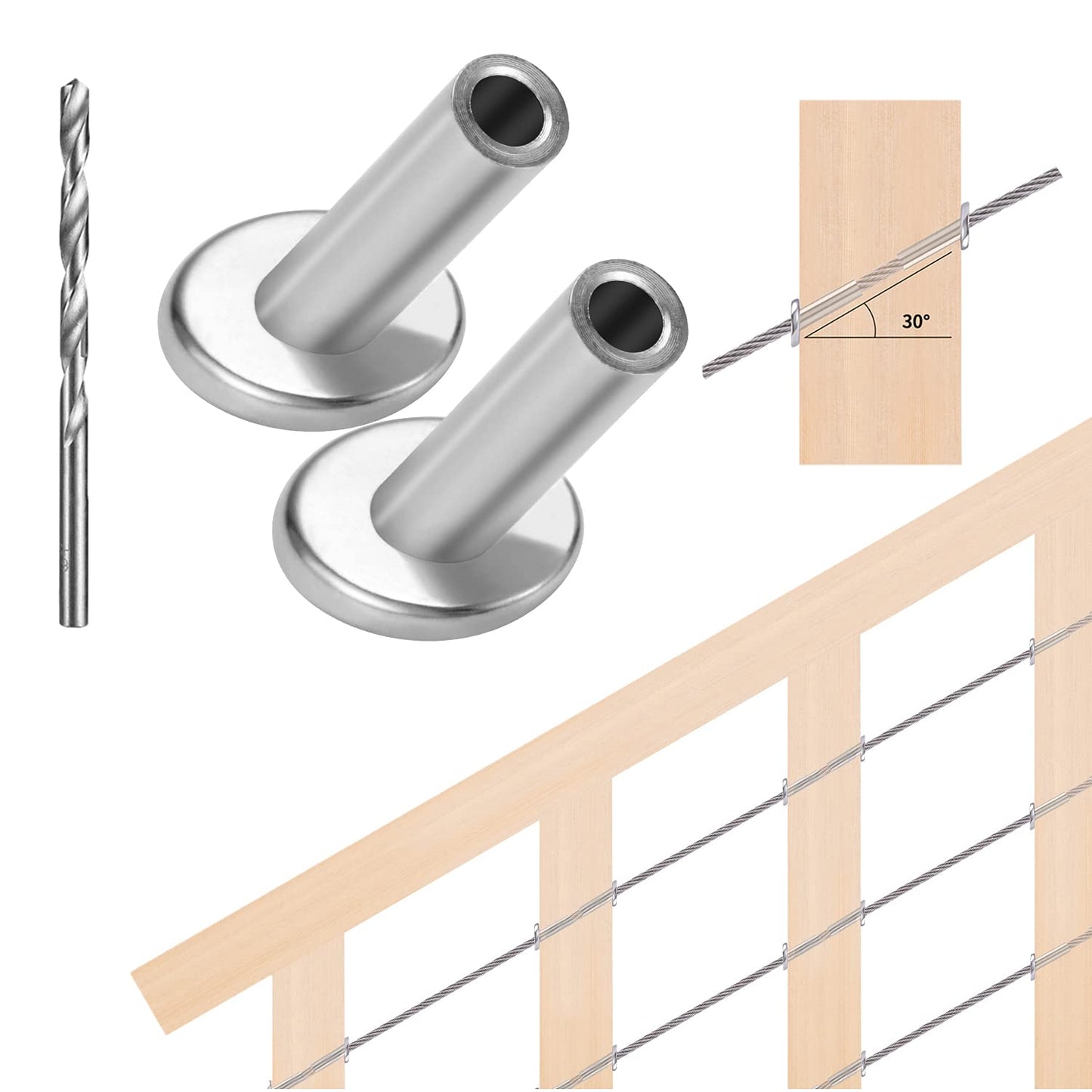

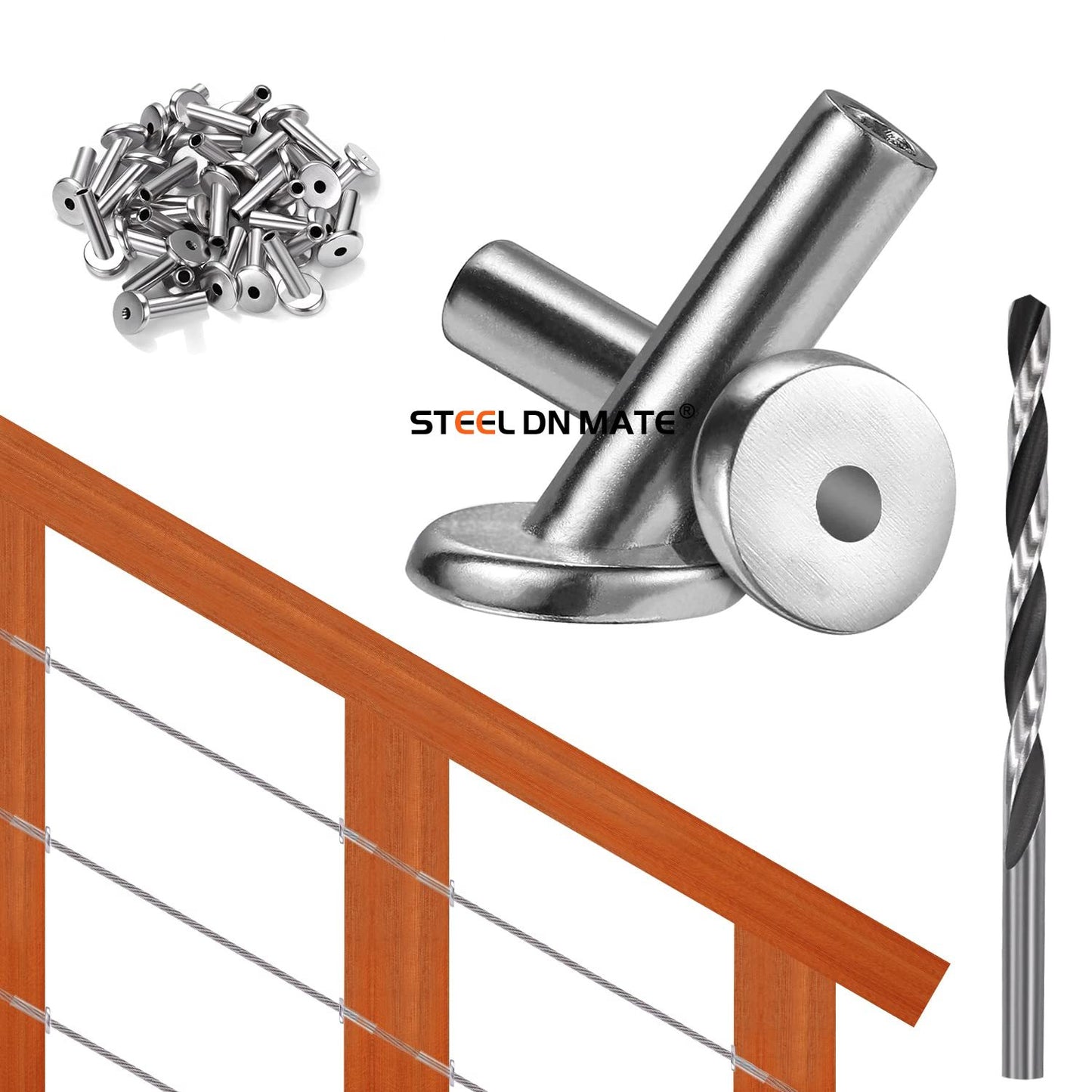

Steel DN Mate 30 Pack T316 Stainless Steel Cable Protector 45 Degree Angle Beveled Protector Sleeves, Protector Sleeve for 1/8 Cable Railing Hardware with a Drill Bit, Stair Railing Kit for Wood Post
Steel DN Mate 30 Pack T316 Stainless Steel Cable Protector 45 Degree Angle Beveled Protector Sleeves, Protector Sleeve for 1/8 Cable Railing Hardware with a Drill Bit, Stair Railing Kit for Wood Post
Couldn't load pickup availability
Design: The design of 45° protector sleeves can replace the combination of straight sleeves + 45° beveled washer, it can insert into the hole perfectly. It is a hole fitting for 1/8" wood post Cable runs, where the hole is drilled at an angle about 45 degrees in the wooden post. Sleeve Inner diameter:5/32 inch, fits for 1/8” cable railing.

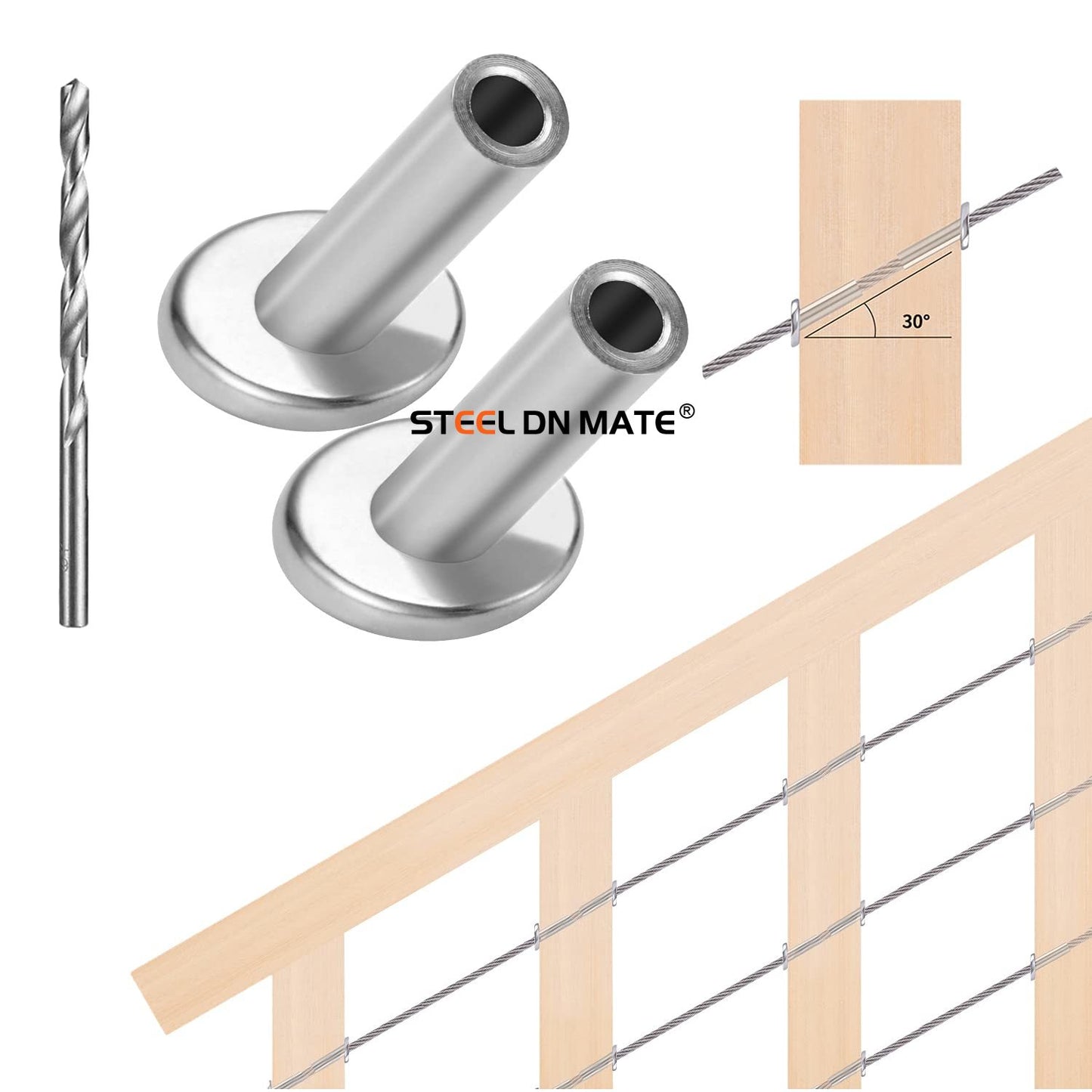

Application: This fitting is ideal for cleanly finishing drilled holes on intermediate angled posts used on stairways and ramps. In addition, protective sleeves can be used to prevent the holes in the wood from collapsing under the tension of steel wire. The fitting can be installed on both sides of intermediate posts as well as the inner side of terminal posts.

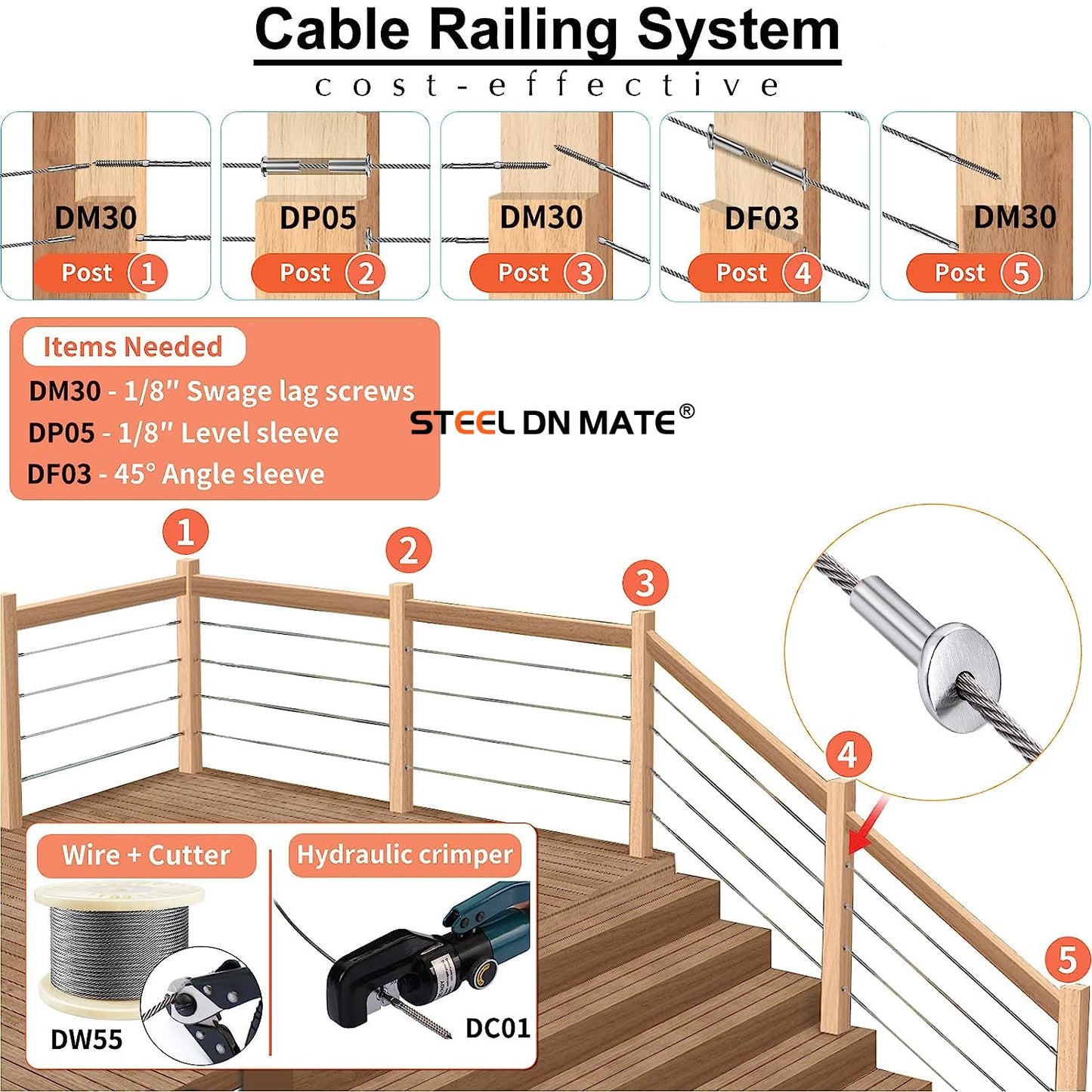

See picture 5 for a cost-effective cable railing system. Scroll down the page to quickly access the matching products and get a complete set of railing system components, including 1/8" swage lag screw (DM30), 1/8" wire rope with cutter (DW55), hydraulic crimper (DC01), and level protector sleeve (DP05).
Product Description

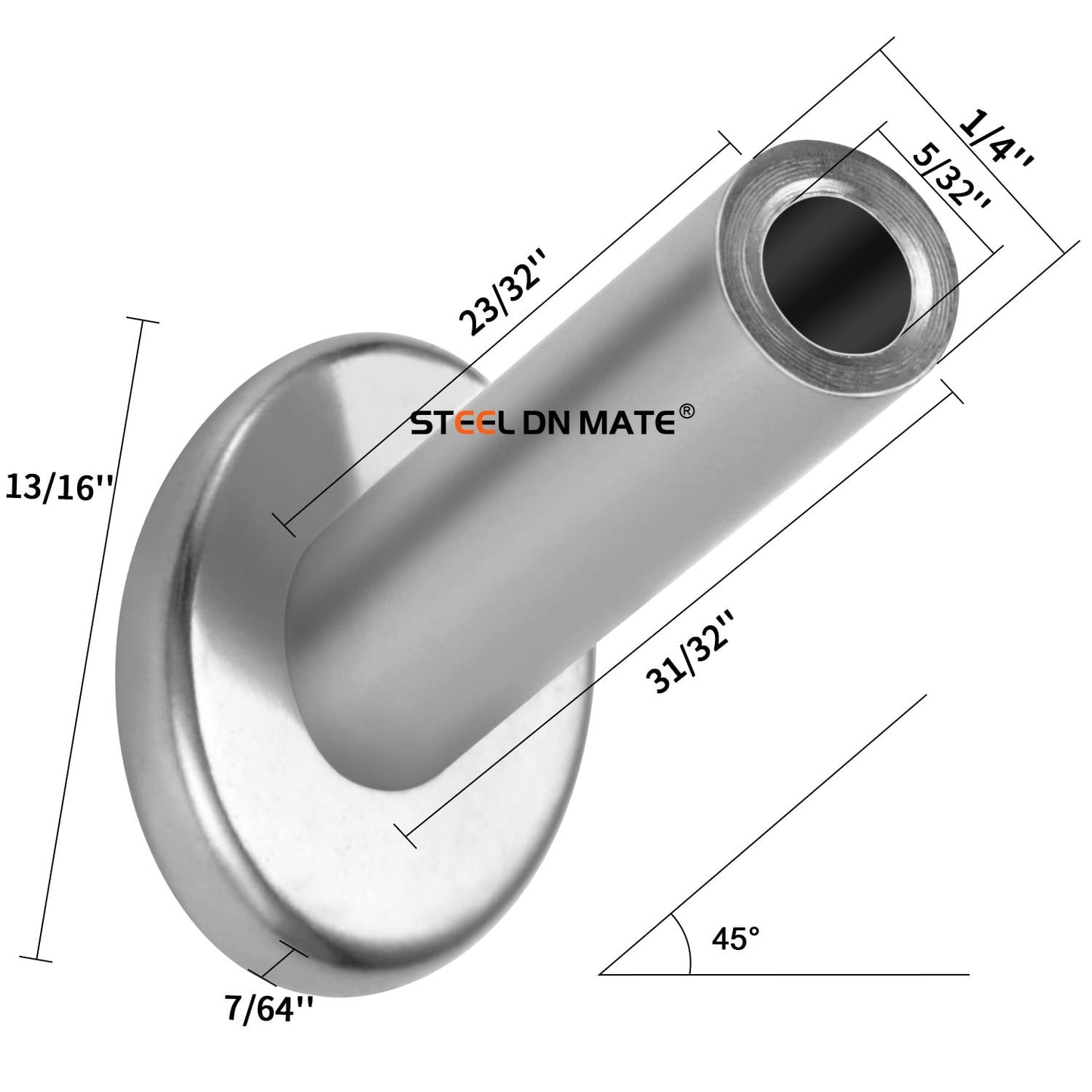

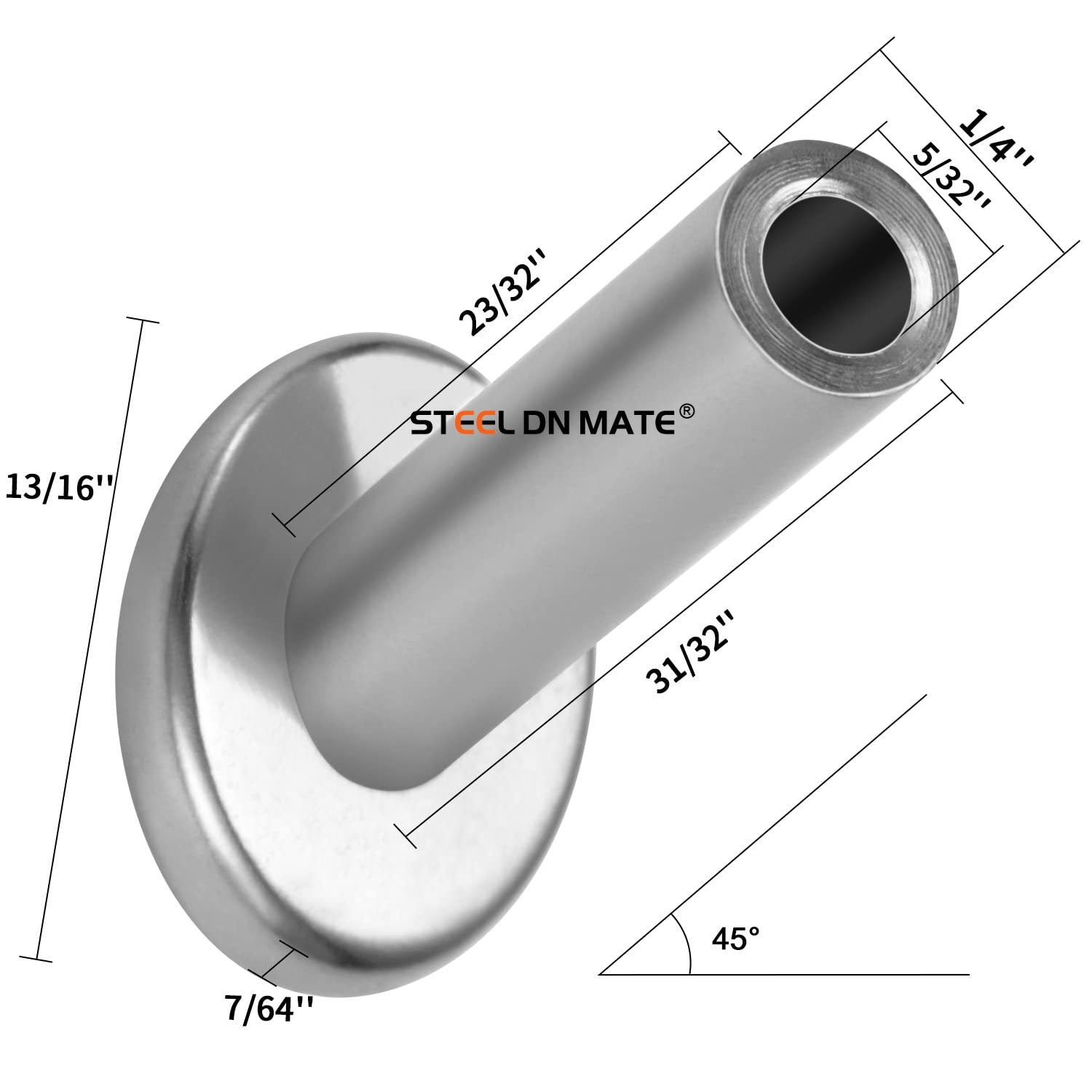

Specification
- = 0.6''
- = 0.78''
- = 0.94''
- = 0.25''
- = 0.15''
- = 0.12''
- = 0.25''
- = 4''

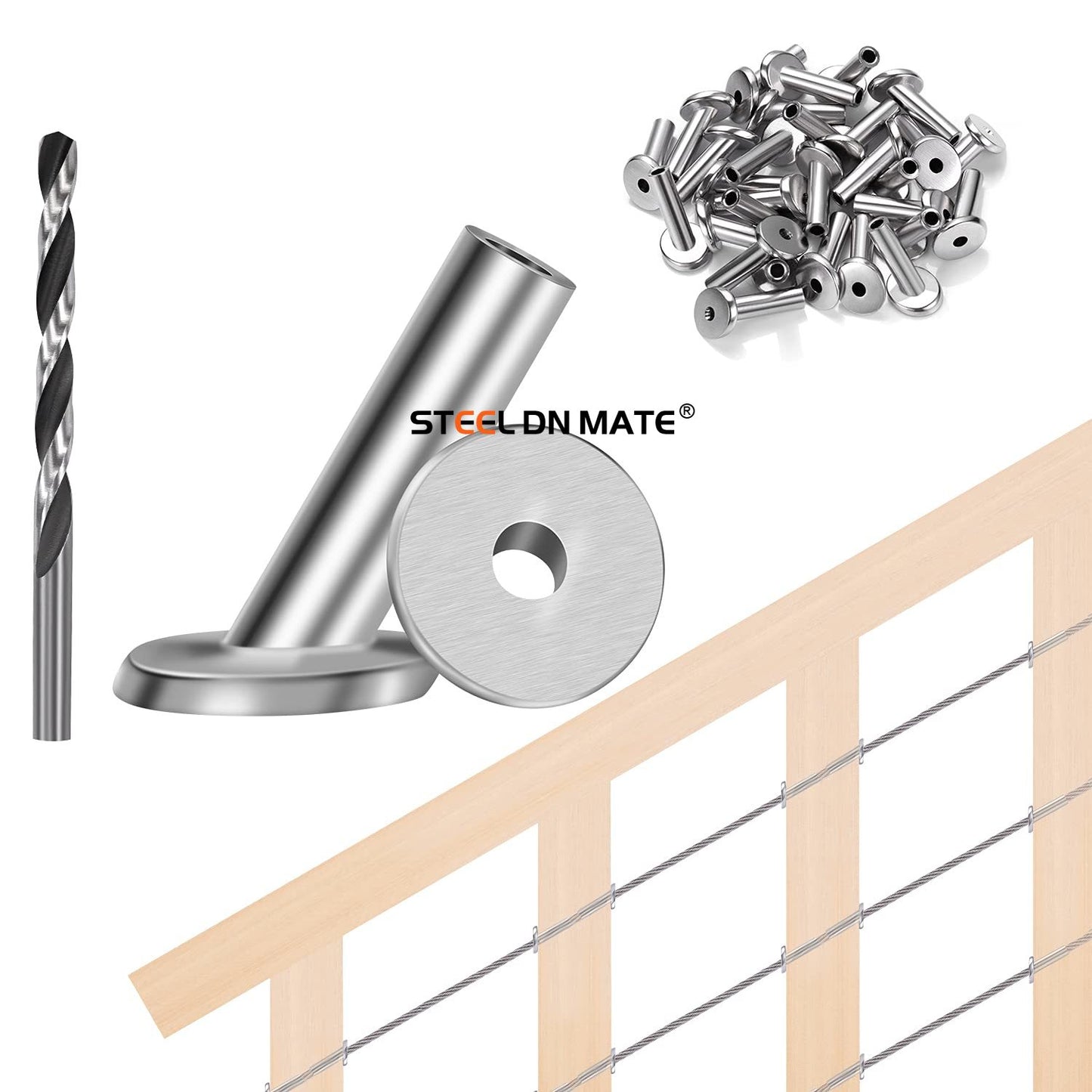

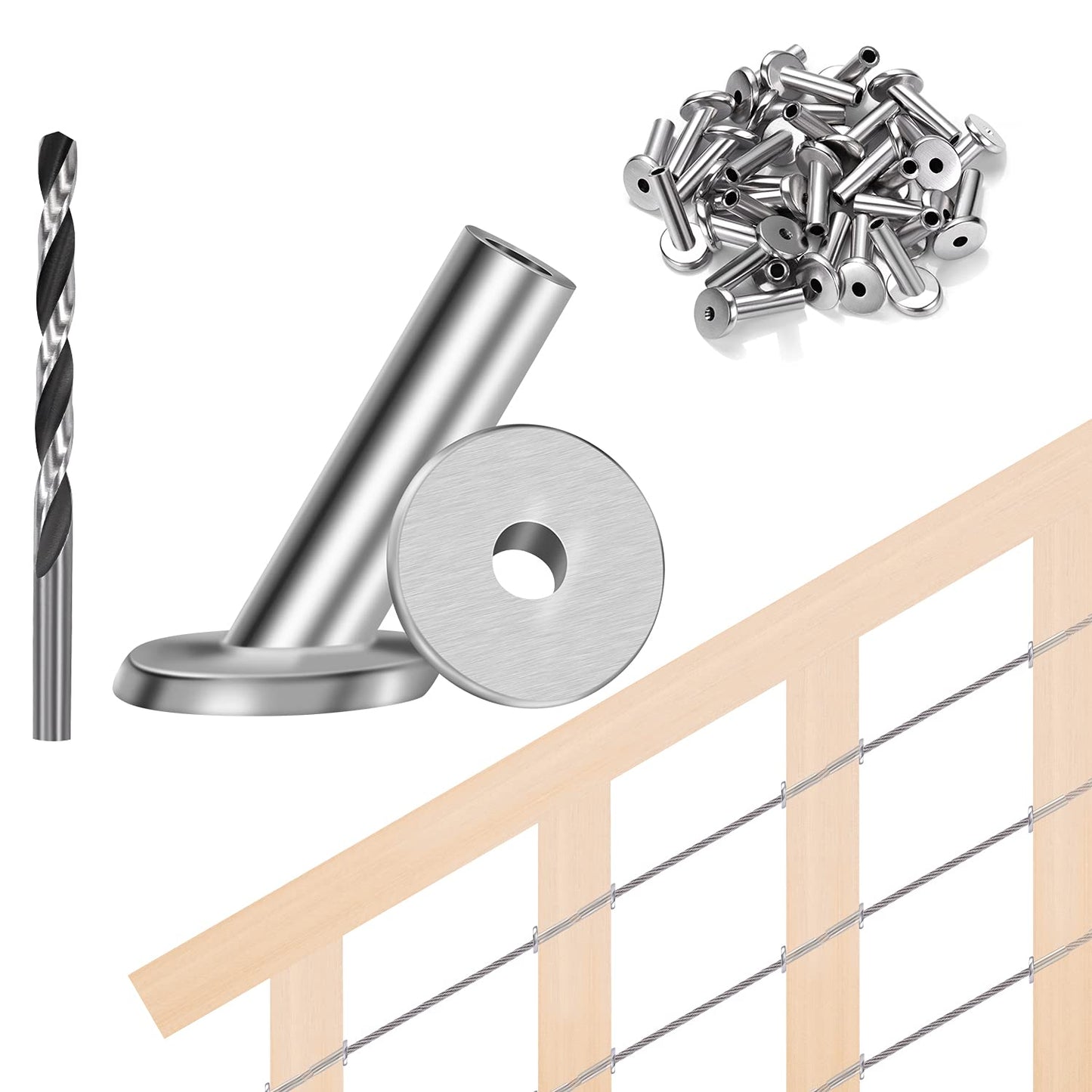

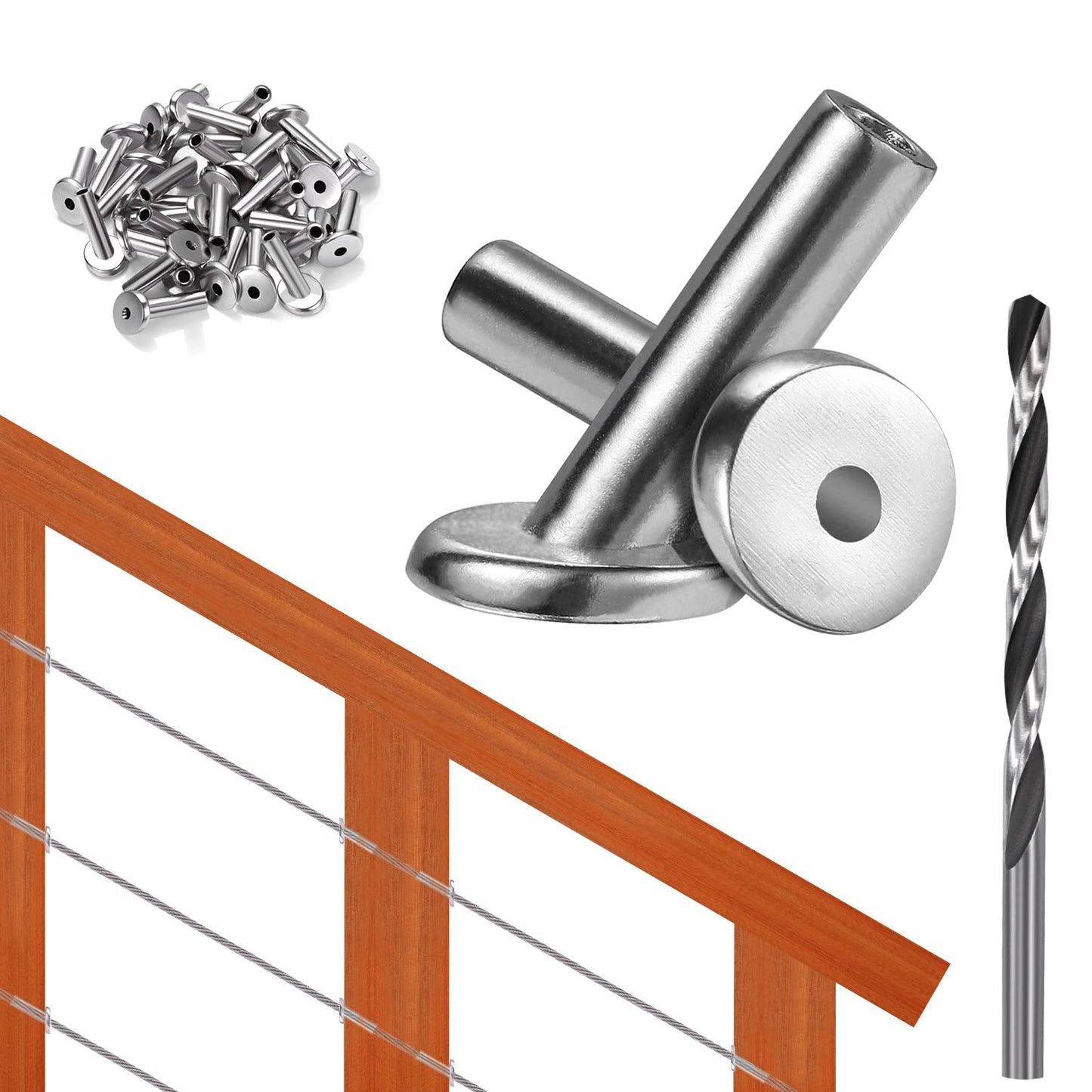

What you get

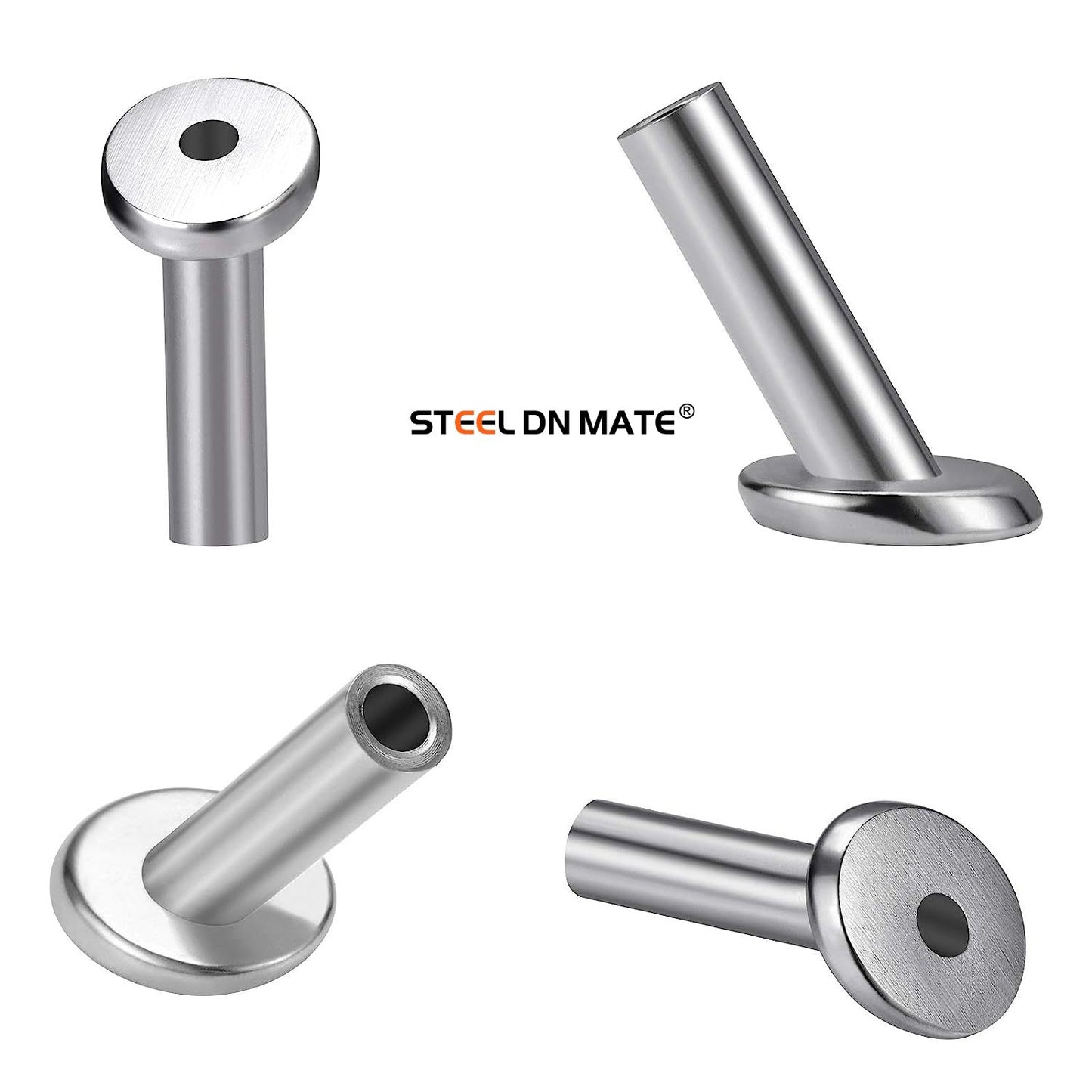

Made of T316 Marine Grade Stainless Steel
- Anti-rust
- Durable
- Stable
- Wear-resistant
Contrast

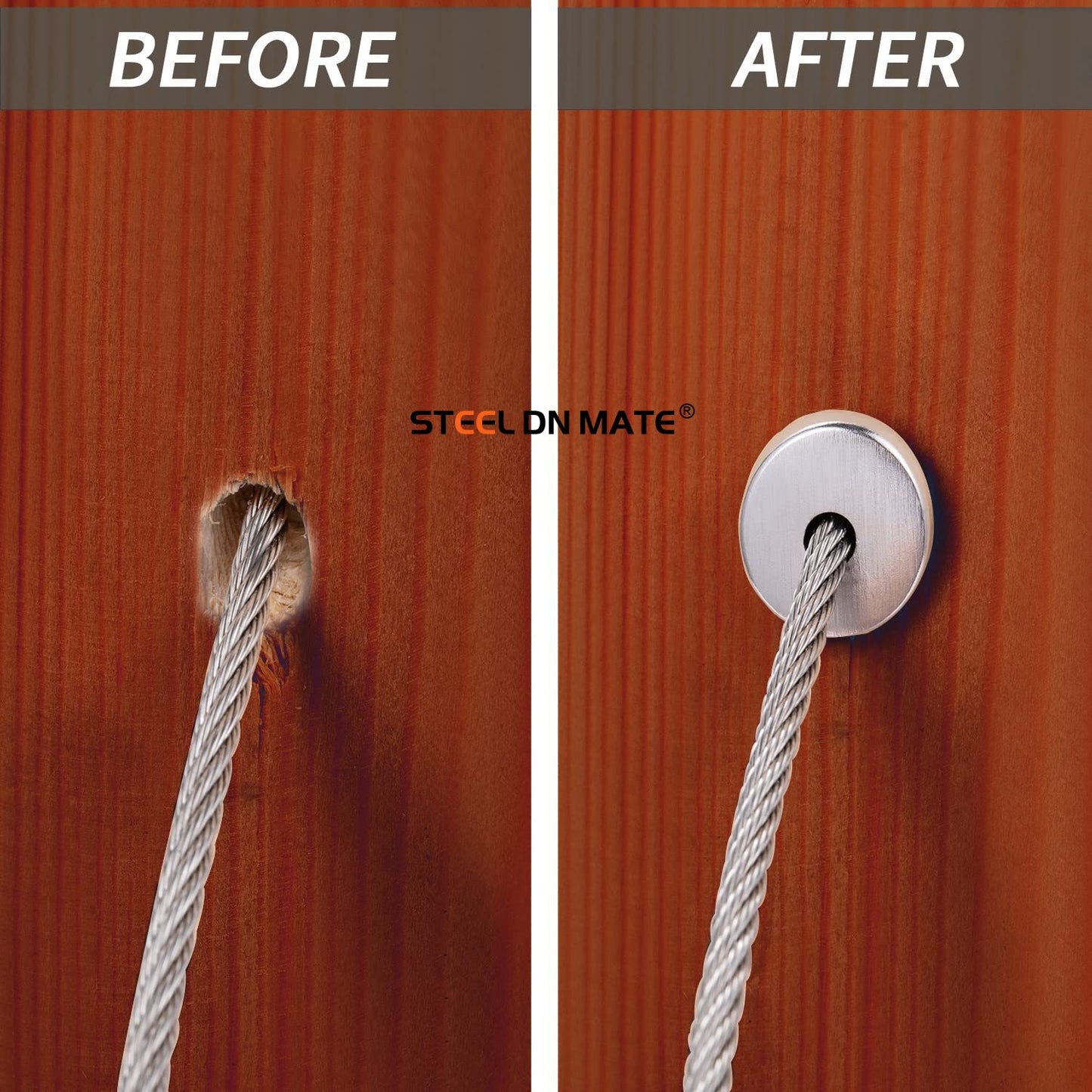

The 45 degree bevel protector sleeves can perfectly plug the hole.
Preventing corner and stair transition posts from cable abrasion.
Make the wire rope look more smooth and clear look!
FAQ:
1. The angle sleeves can be only installed in the intermediate posts, not in the terminal.
2. For terminal fitting, Steel DN Mate DH10 is recommended.
3. The maximum span between the two end posts is 30 Feet;
4. The near 2 post space is recommended to be 3-4 ft, and cable space is 3 inch to pass the 4 inch sphere test;

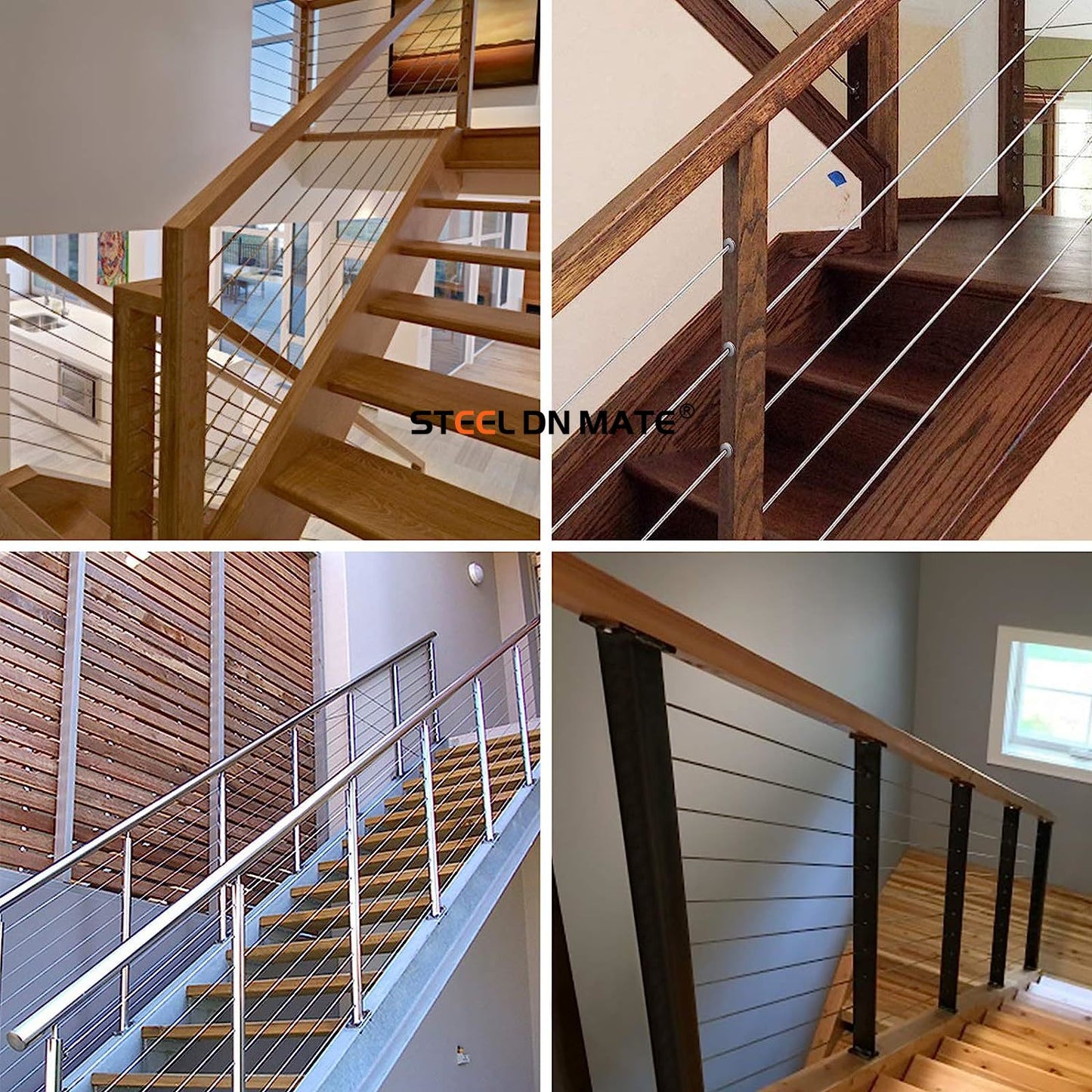

Great for indoor and outdoor
The Stainless Steel 45 Degree protective sleeve is designed for working with 1/8" diameter wire rope on wood posts,steel post etc.
What you must have for the above project, you can find it in our store, on search it on amazon:
1. Steel Cable DW40;
2) Hydraulic crimper and cutter DC02;
3. Adjustable Turnbuckle DH10;
4. Level protective sleeves DE05;
5. Angle protective sleeve DF05;
6. Drill Guide DG12.
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| This item | 50Pcs Protector Sleeves | 220 Feet 1/8'' Wire Rope with cutter | 45 30 90 Degree Drill Guide | 10Pcs Swage Turnbuckle Hardware kits | Hydraulic Hand Crimper | |
| Material | T316 | T316 | T316 | Metal | T316 | metal |
| Rust-proof | ||||||
| Fit for wood/metal | ALL | ALL | ALL | wood | wood | ALL |
