Steel DN Mate
Steel DN Mate 120 Pack T316 Stainless Steel Left&Right Handed Thread Swage Lag Screws for Wood Post of 1/8" Deck Railing Kit, Cable Railing Hardware, DIY Baluster Hardware, Wrench Included DM60
Steel DN Mate 120 Pack T316 Stainless Steel Left&Right Handed Thread Swage Lag Screws for Wood Post of 1/8" Deck Railing Kit, Cable Railing Hardware, DIY Baluster Hardware, Wrench Included DM60
Couldn't load pickup availability
This deck railing hardware fit 1/8" OD cable of railing system. The thread screws are designed for timber/wood post. It will rotate the wire rope in the same direction, which resolves the problem of twisting the attached wire. Products without Left & right will bring you hassle and might damage the cable.

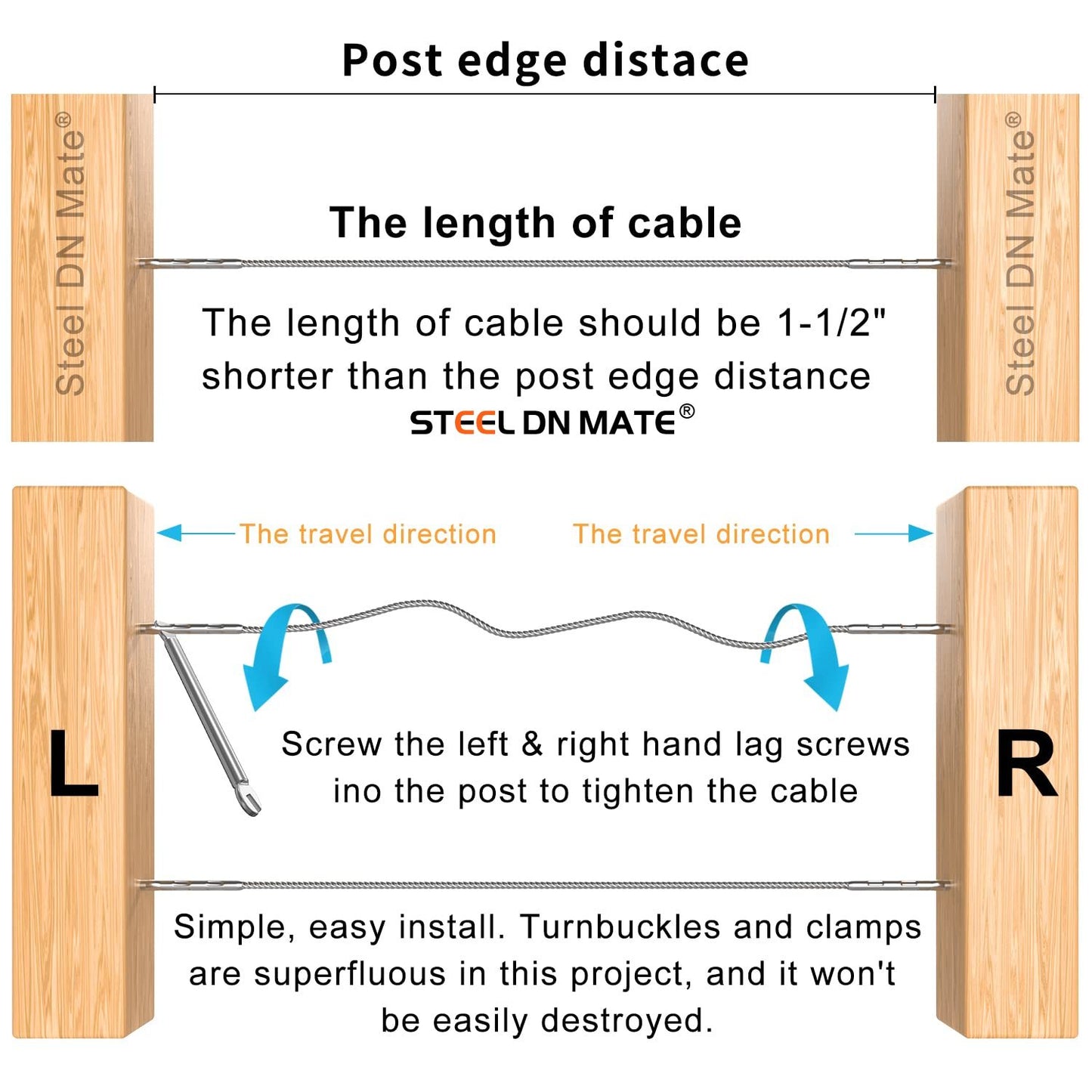

Length of cable should be 1-1/2" shorter than wood surface distance（as shown in pic.4); if you want to DIY a high quality cable railing system, standard 1/8" (OD) cable which was made of T316-stainless steel is recommended.
By the design of Right&left handed thread, of course it can be used to adjust the tension of attached cable, so the turnbuckles are not needed in the railing system. And this cable railing won’t be easily unfixed or destroyeded. The lag screws could be drilled into wood to adjust the tightness without extra turnbuckle or tensioner. Deck and Stair Cable railing system is not only simple but also won't block your view.
We suggest the following items for a cost-effective cable railing system: 1/8" lag screw DM60, 1/8" steel cable and cutter DW40, hydraulic Crimper DC01. Drill guide DG12 can help you with drilling. You can scroll down this page to get them, or find them by search on amazon, steel dn mate+ model number, like steel dn mate DW40. We offer perfect free design before sales, and 10 years warranty and lifetime after sales, any question just contact us.
Product Description
Fits 1/8" cable railing system

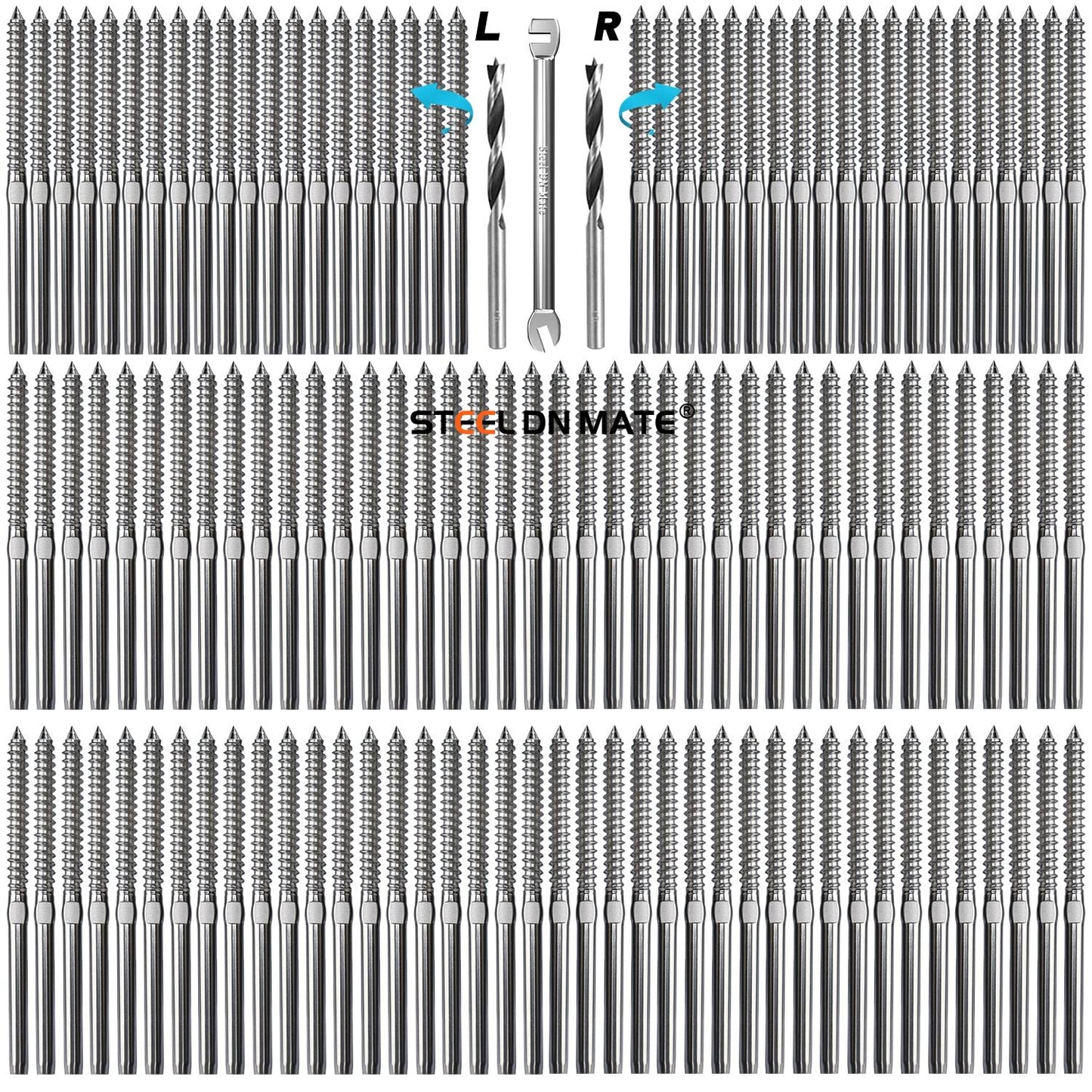

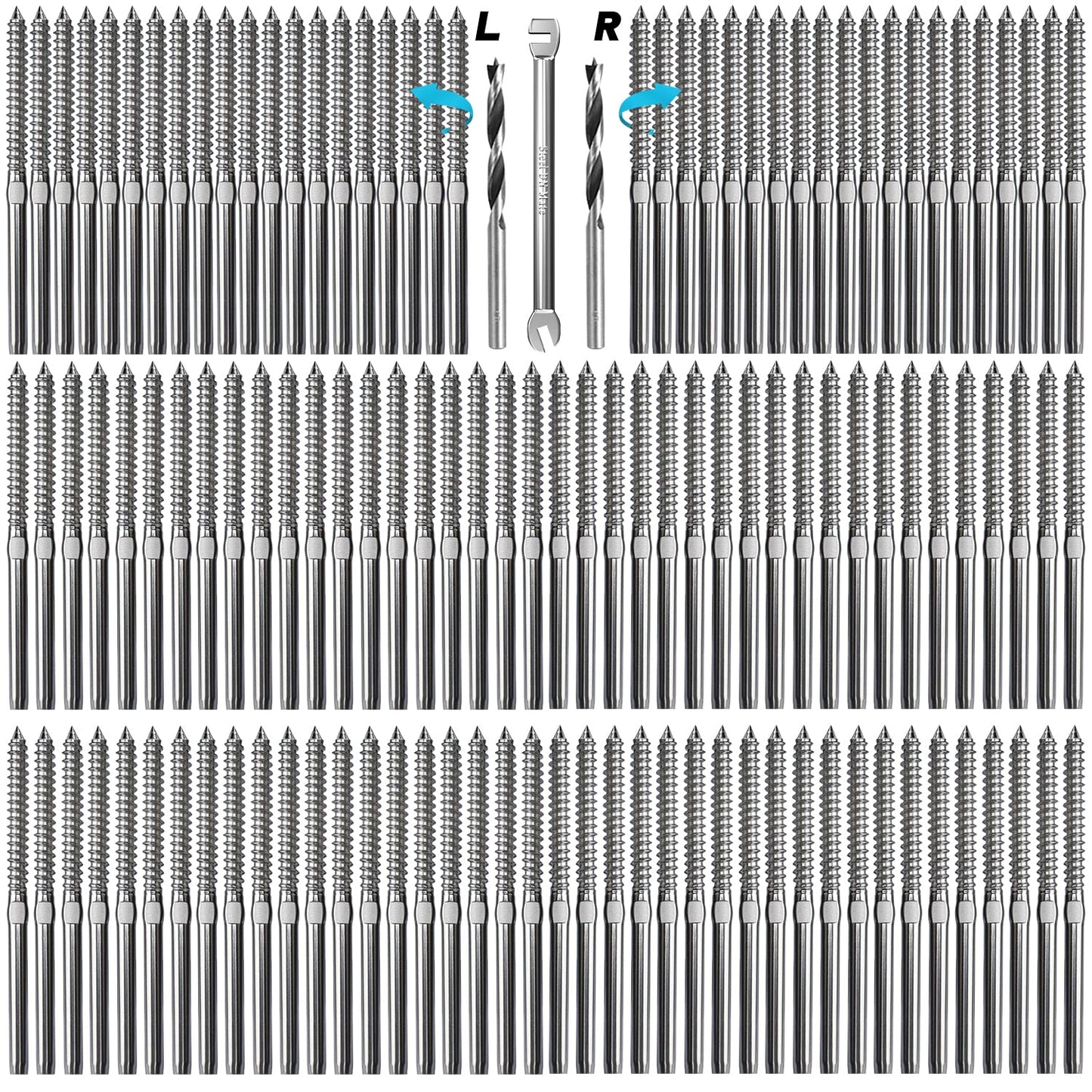

Package includes：
- left handed thread lag screw：60 Pcs
- right handed thread lag screw：60 Pcs
- OD drill bit：2 Pcs
- Wrench: 1 Piece
- 10 Years warrant-y
- Life-time service
- 30 Cable Runs
Steel DN Mate---BEST Quality Metal Handed Thread Swage Lag Screws
Left & Right Thread Swage Lag Screws
T316 stainless steel cable railing kit, anti-rust, water and corrosion, marine grade, good for outdoor/indoor railing system, fits for level, angled and vertical cable railing system.
You may be not skillful, but if you take the steps to make this simple and foolproof, you'll end up with the professional cleanest look.
One stop shopping from Steel DN Mate.
- DM60 Lag screw
- DW40 1/8 steel cable T316 with cutter
- DC01Hydraulic Crimper
- DF05 Angle protector sleeve
- DE05 Level protector sleeve
- Drill jig DG12
- Stable and Durable
- Clear look
- Easy to install
- For wood post with 1/8" stainless steel cable

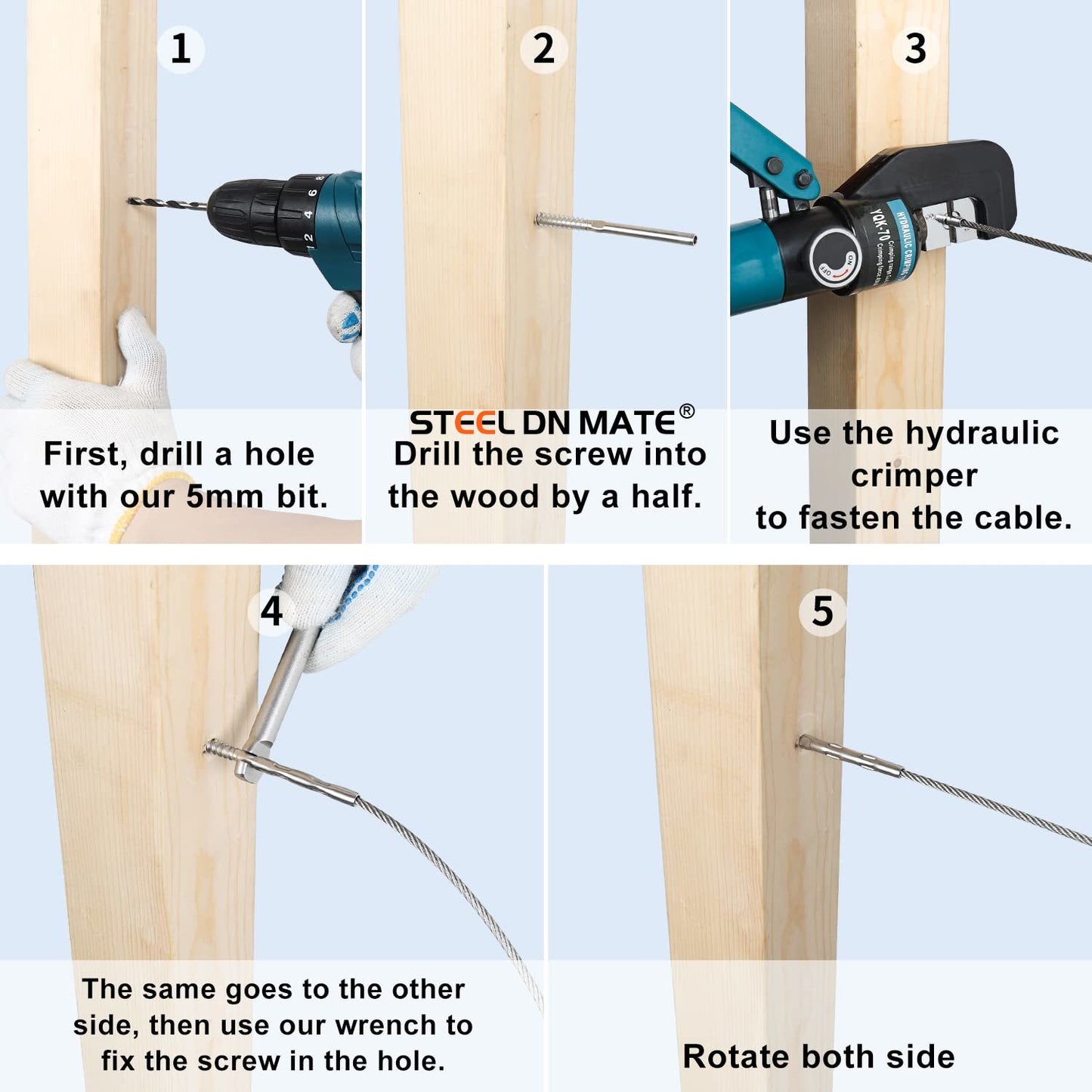

Installation Tips
|
|
|
|
|---|---|---|
Step 1Drill half threads of the Left & right lag screws into the pilot holes in the posts which have been drilled; then swage the cable to the screws. Note, leave half threads outside of the post. Crimp with Die NO.4 or No.6. |
Step 2Turn the left lag screws thread in to the left post; Steel DN Mate develops a specially Wrench to make this job very easy and save strength. |
Step 3Turn the right lag screws into the right post in the same direction at the pretty the same time. This way is to avoid cable twisted. |
FEASTURES
|
|
|
|
|---|---|---|
Easy installation-Deck Railing KitIt is very easy and simple with our tools and user guide to build steel cable railing kit by your own self . One man could DIY the project. |
Weatherproof-Cable Railing HardwareThe material is Marine Grade T316, excellent resistance to rust, ideal for porch/stair/deck etc, withstand exposure to saltwater, costal and other harsh weather conditions. |
Elegant Cleanest Look-Stair Railing KitClear look, it won't block your view, the best inexpensive cable railing system, fits for stair, level, vertical cable railing system, indoor or outdoor. |
Frequently bought together for a Cost Effective Cable railing System
Woodpost cable railing is a simplified cable railing system with a terrific nice look. It replaces the complex turnbuckle with 2 lag screws, which not only make it easier install but also inexpensive.
FAQ
- Cable Length could range from1-1/8"（tight) to 1-1/2"（tightest） shorter than wood distance.
- Recommend the maximum distance between two end posts is 16 Feet.
- Recommend that the post spacing between two posts is 3 to 4feet.
- Recommend that the spacing between the cable space (upper and lower screw holes) is 4".
Note: Some states may have special regulations, check with your local administration for building codes.
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| 1/8” Swage Lag Screws | 1/8” Swage Lag Screws | 1/8” Swage Lag Screws | 1/8” Swage Lag Screws | 1/8” Swage Lag Screws | SDNM T316 Stainless Steel Lag Screws | |
| Quantity | 30 Packs | 40 Packs | 50 Packs | 60 Packs | 80 Packs | 100 Packs |
| Color | Silver | Silver | Silver | Silver | Silver | Silver |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Black Lag Screws T316 Steel | T316 Stainless Steel 1/8'' Wire Cable | 30 Degree Angle Stair Protector Sleeves | 30 45 90 degree Angle Drill Jig Guide | Level Protector Sleeves | Steel DN Mate Hydraulic crimper | |
| Material | T316 | T316 | T316 | Metal | T316 | Steel |
| Rust-proof | ||||||
| Fit for | Wood Instructure | All | Wood Instructure | Wood Instructure | Wood Instructure | All |
| For 1/8” cable | ||||||
| Indoor use | ||||||
| Outdoor use | ||||||
| Color | Black | Silver | Silver | Orange | Silver |
