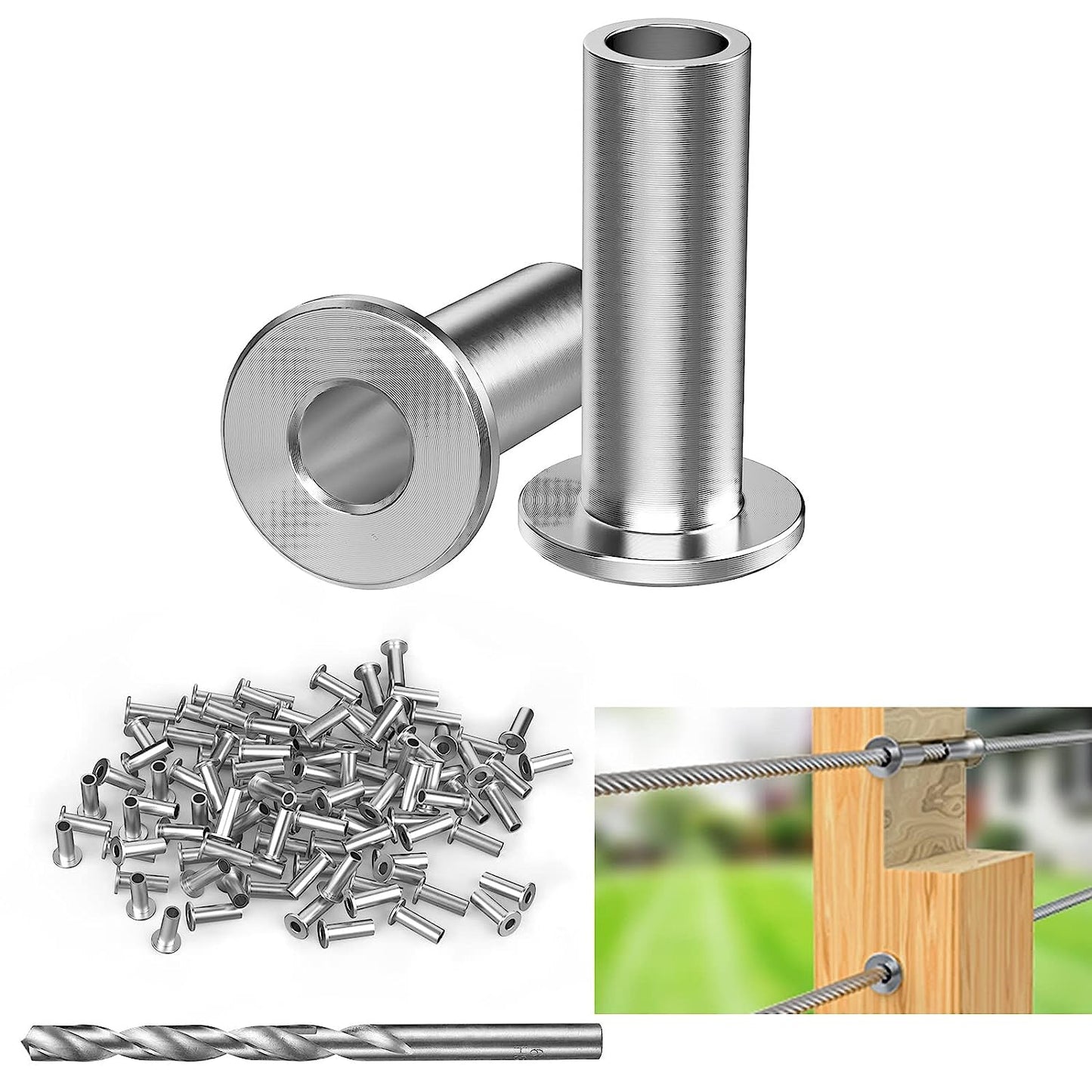

Steel DN Mate 110 Pack T316 Stainless Steel Protector Sleeves for 1/8" Cable Railing, Cable Protector Sleeves for Cable Railing System, Deck Railing Hardware with a Drill Bit DE11

Steel DN Mate 110 Pack T316 Stainless Steel Protector Sleeves for 1/8" Cable Railing, Cable Protector Sleeves for Cable Railing System, Deck Railing Hardware with a Drill Bit DE11

$19.99 USD
$48.99 USD $19.99 USD
Sale Sold out
Shipping calculated at checkout.
Size
Number of Items
Material：The cable railing kit is made of T316 stainless steel marine grade, which is strong tensile strength, very sturdy and durable. It is rust and corrosion resistant, designed to install indoor and outdoor deck railing, even in coastal areas. Refund guarantee if the sleeves rust. Please download the“User Manual (PDF)”under Product guides and documents
Stylish clean appearance but the most cost effective. This cable railing kit covers the rough holes after drilling, provides a stylish clean. This cable railing system won’t block your view when you rest on deck. Also nearly no maintenance required. Unlike turnbuckle systerm, this simple deck cable system, (protectors+ lag screw) cuts down the cost by 1/4. We think it combines of strength, light weight, appearance and cost effectiveness, perfect for residential or commercial.

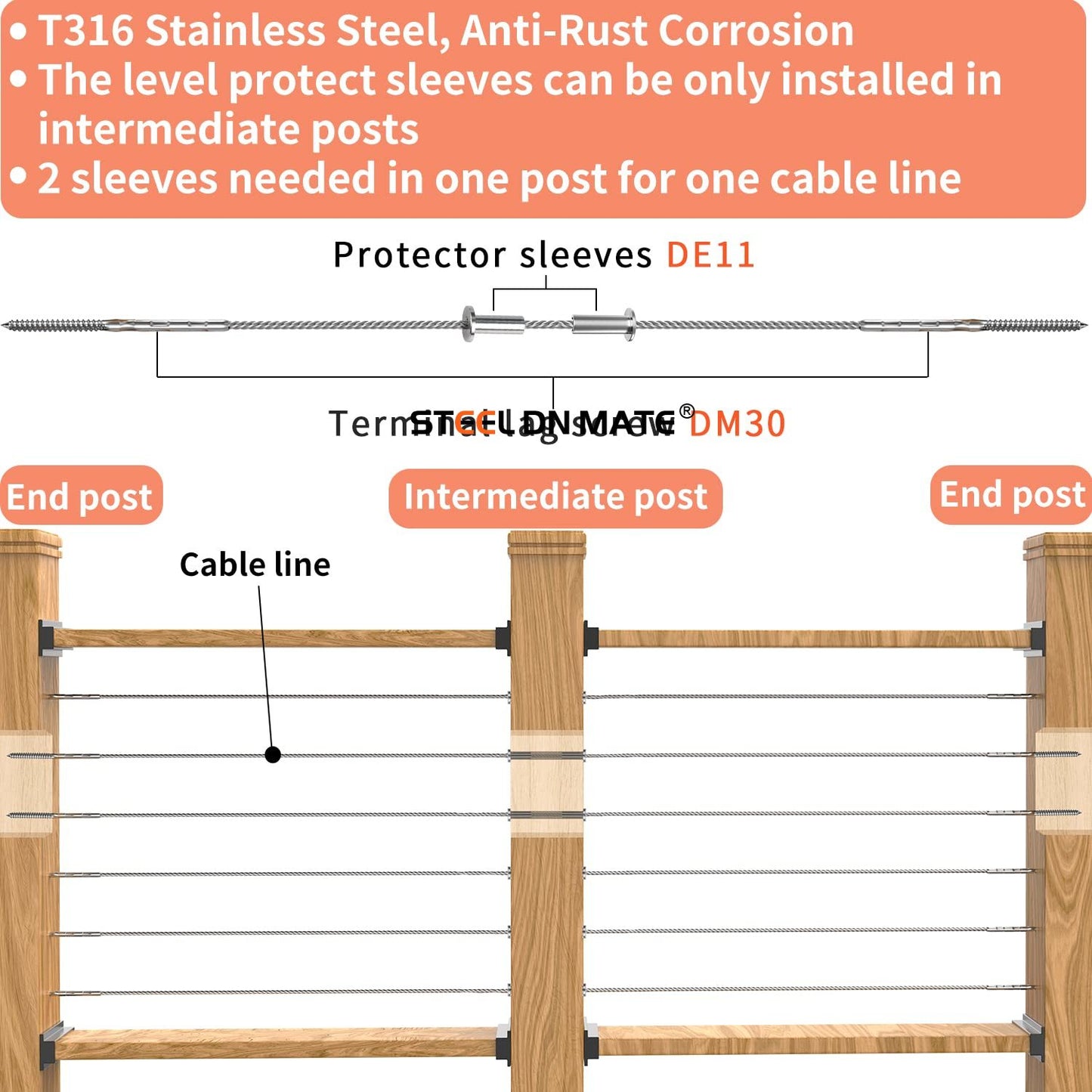

Protect posts and maintain cable tension. This stainless steel protective sleeve is designed to prevent damage to the relatively soft wood posts from friction wear. It can maintain the cable tension to prevent vibration. Important Note, this level cable railing hardware can only be used in intermediate wood posts, not suitable for metal or angle posts.

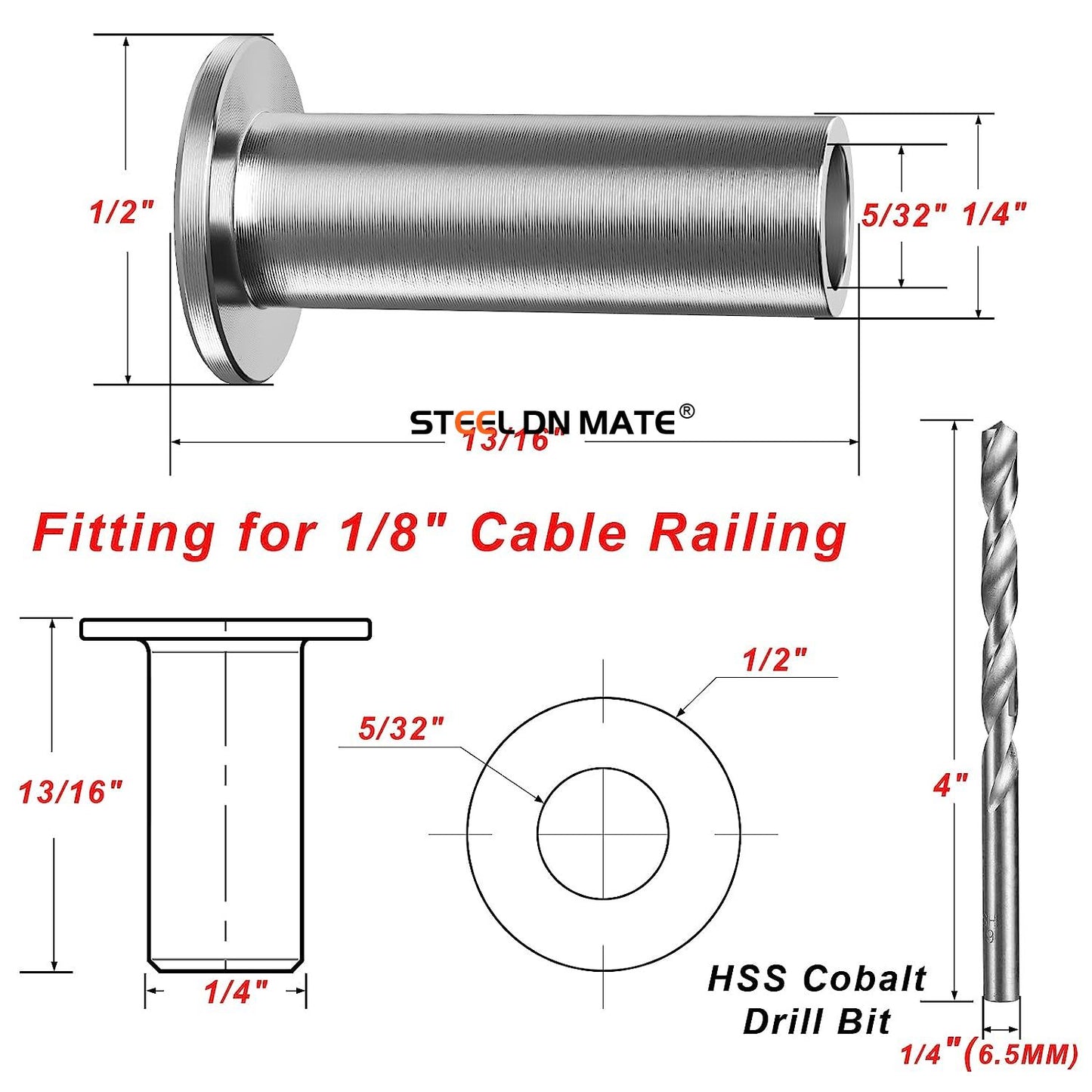

Size: inner diameter: 5/32 inch; total length: 13/16 inch; Drill Bit Diameter: 6.5MM. These T316 protector sleeves fit for 1/8" cable railing system. Calculation of sleeves quantity needed: 2 × QTY of intermediate posts × QTY of cable runs.

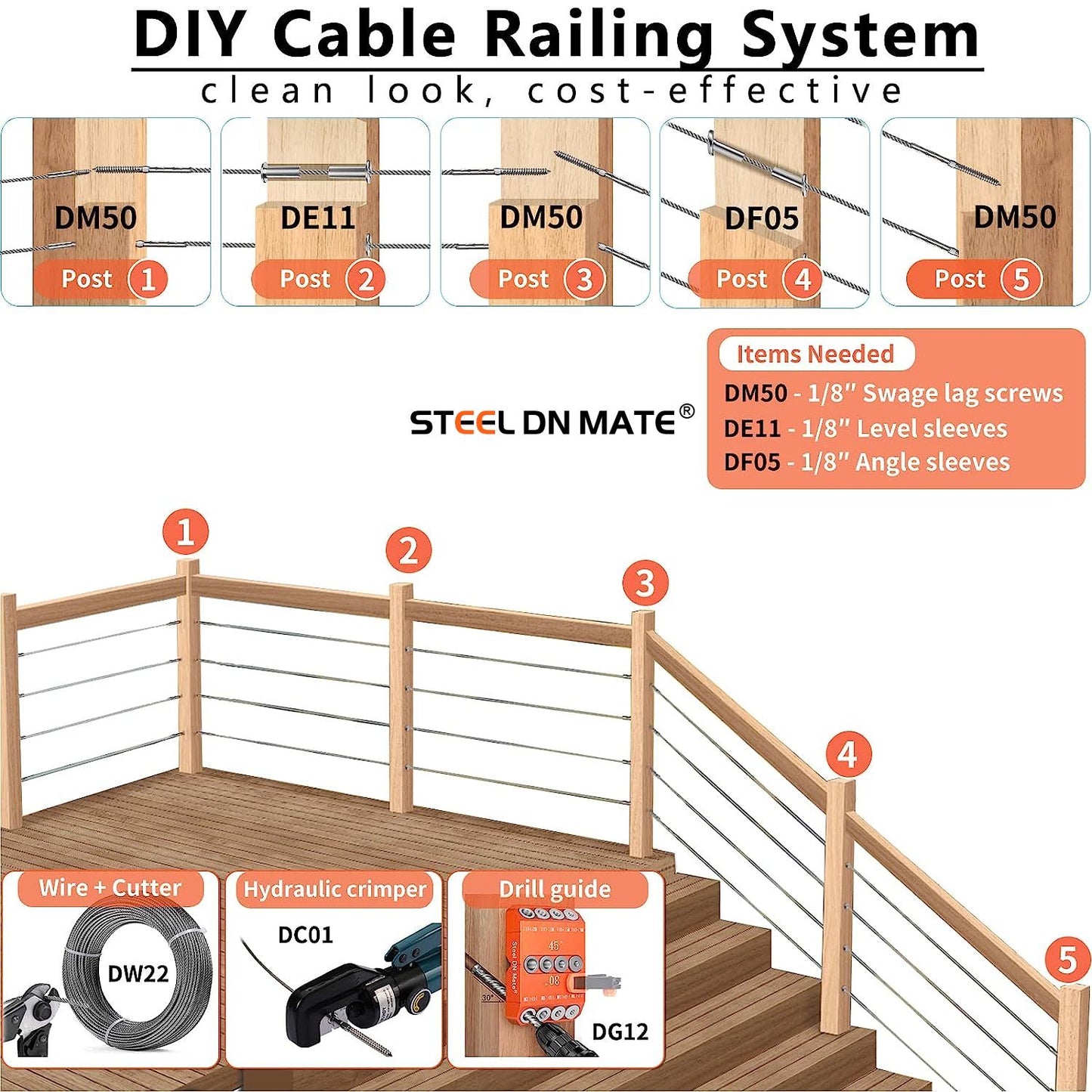

DIY a 1/8” cost-effective cable railing project, refer to Picture NO. 6: Protector sleeves DE05, 1/8" steel cable with cutter DW22, hydraulic crimper DC01, swage lag screw DM30, drill jig DG12. For the angle stair balustrade hardware, angle protector sleeve DF05 is recommended. You can scroll down this page to buy them all from Steel DN Mate in 2 minutes.

Product Description

sleeves
sleeves

High quality cable railing kit

4
4
Features



  1. Rust, Corrosion Resistance
  2. High temperature Resistance
  3. Weather Resistance
  4. Strong durability
  5. Scratch resistance
  6. Easy install



It combines of strength, light weight, appearance and cost effectiveness, perfect for residential or commercial.

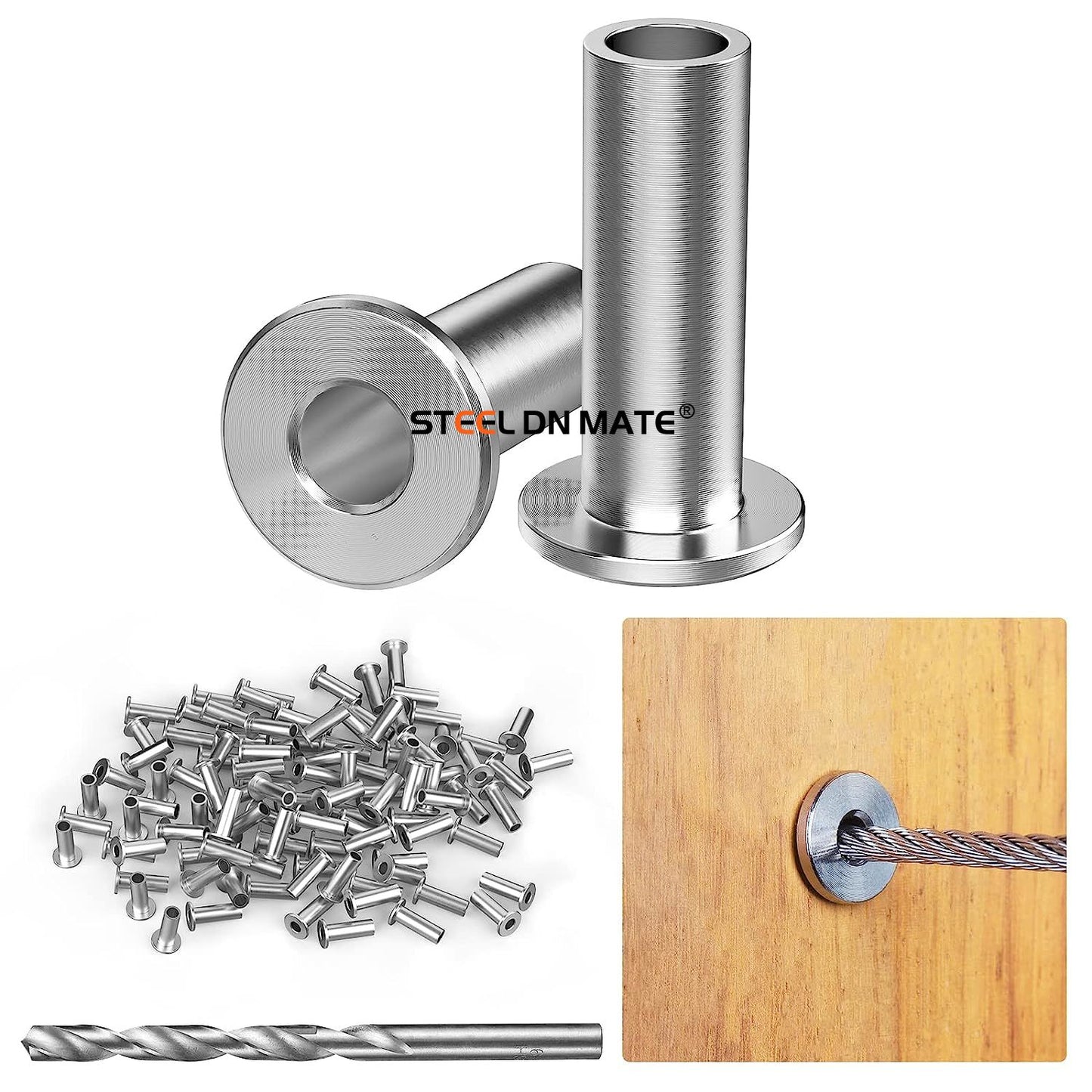

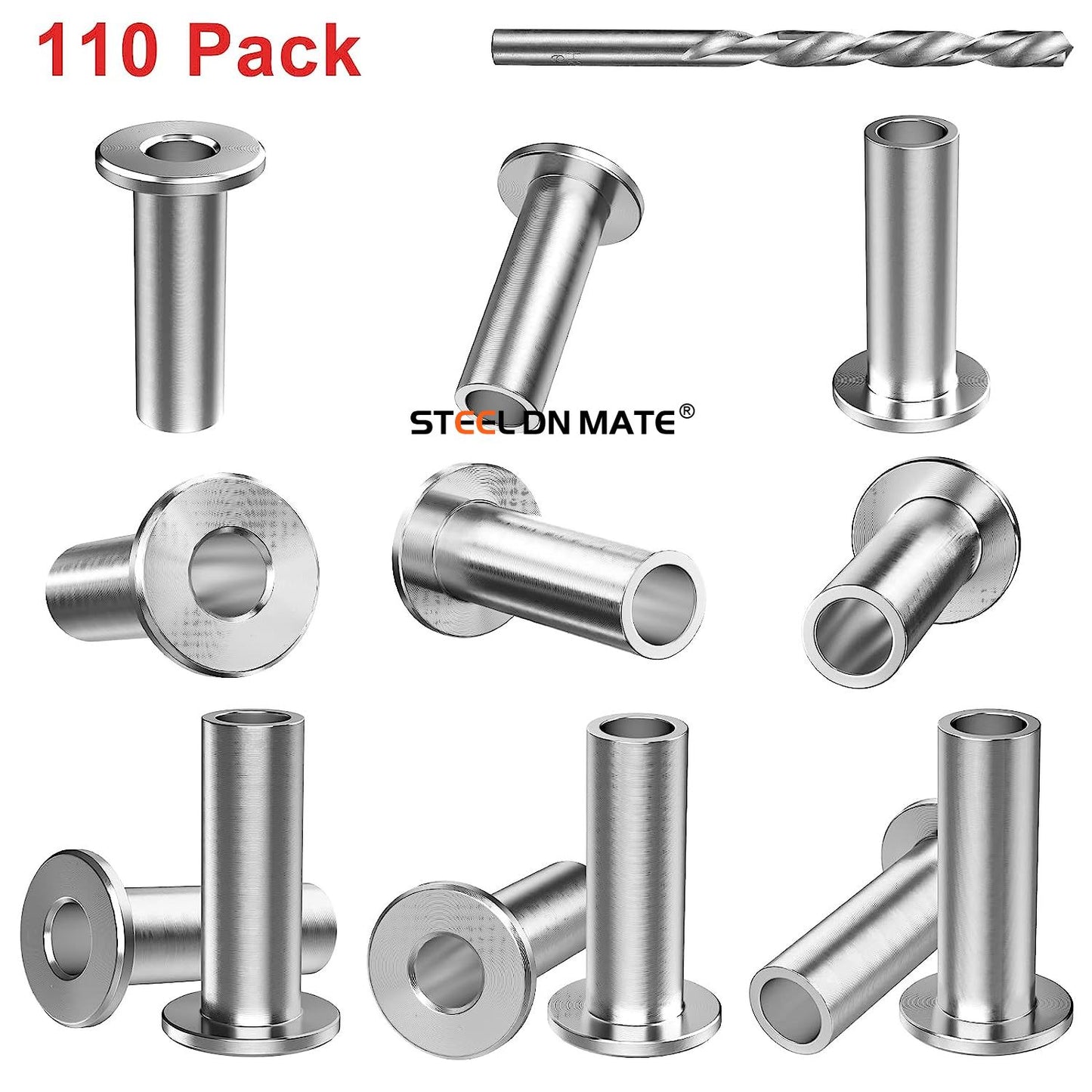

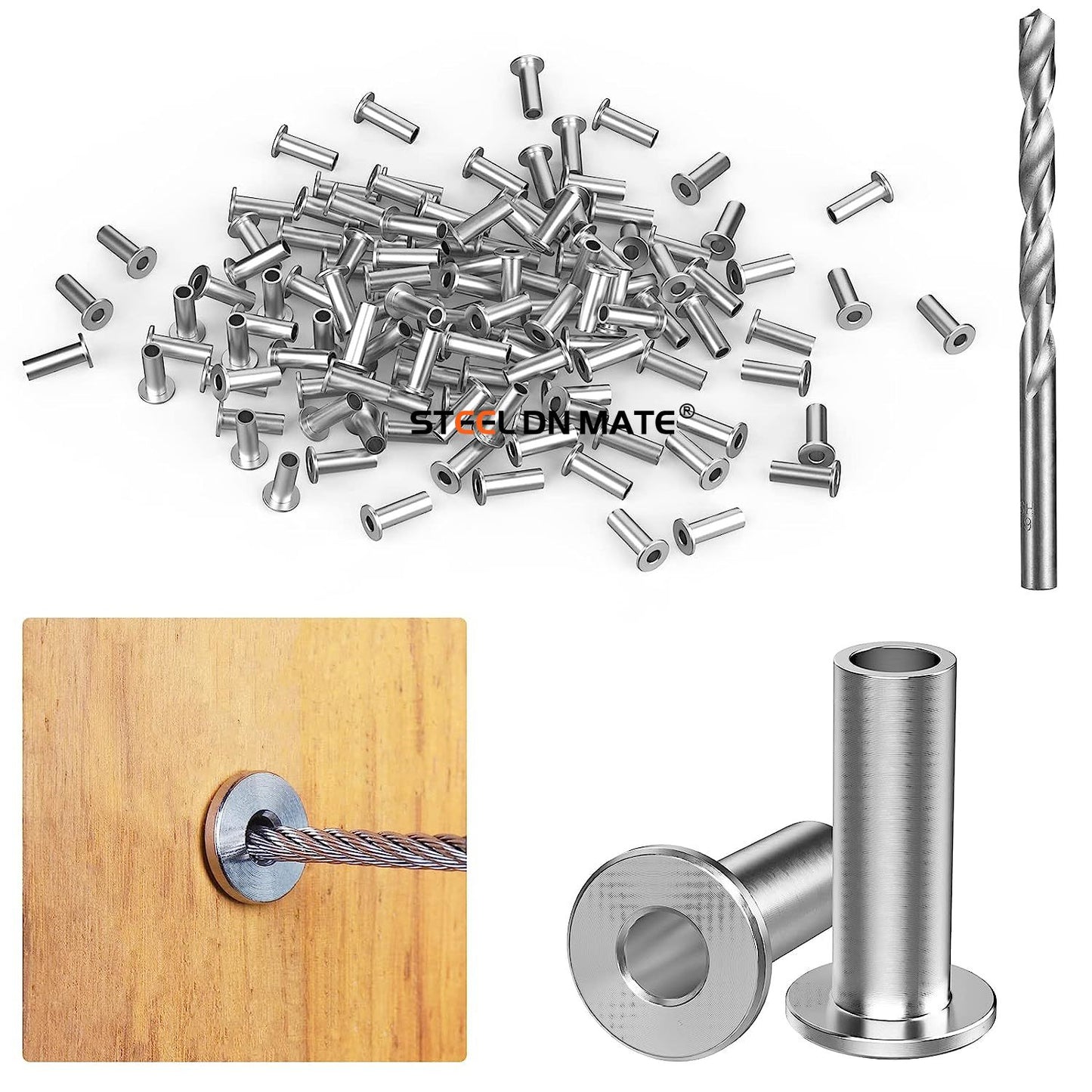

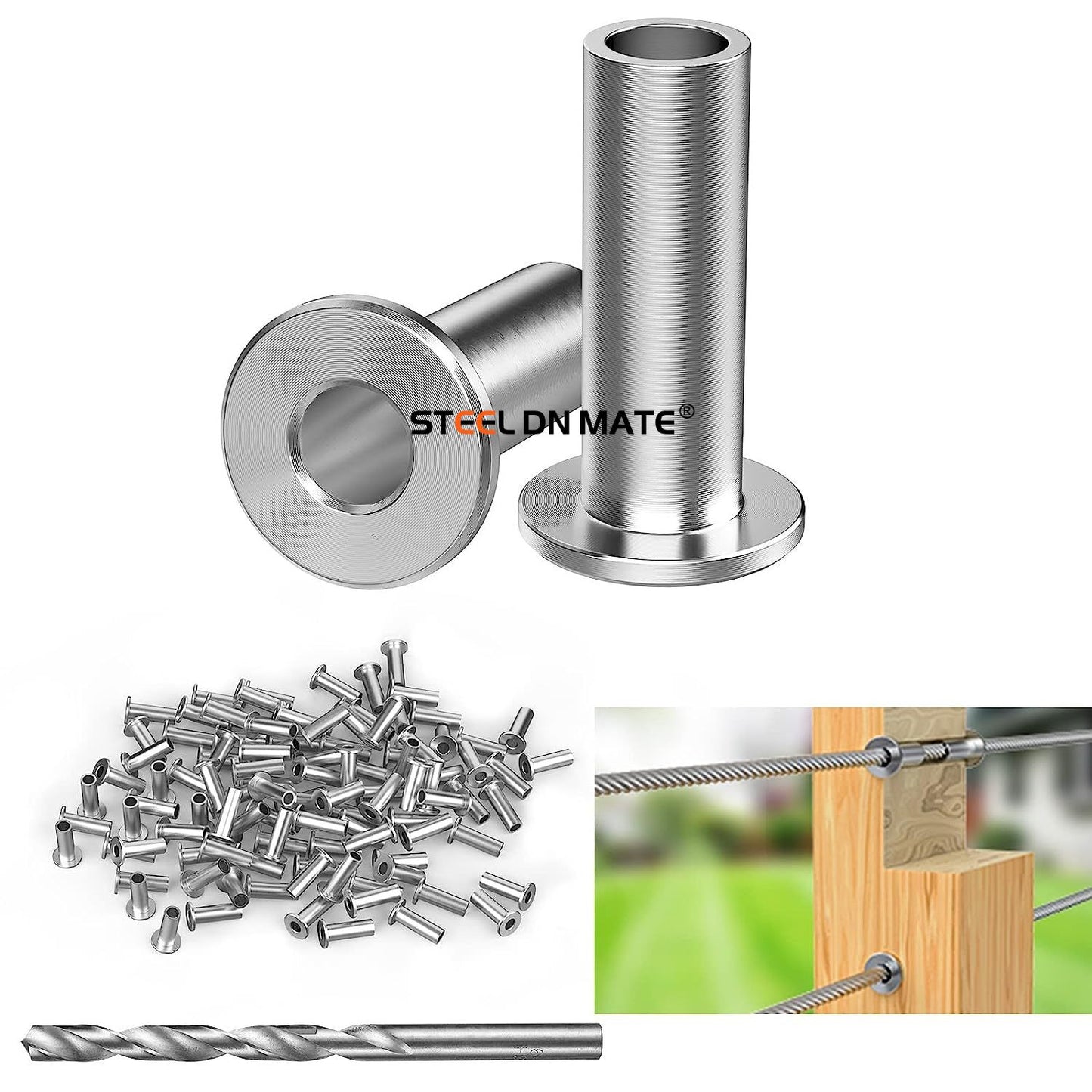

  • 110 packs cable railing sleeves
  • A drill bit

Steel DN Mate---the BEST Quality T316 SS protective sleeve

This cable railing hardware is simple but elegant, clean look

Unlike complext turnbuckle system, this system uses swage lag screw and protectors, makes it fairy simple to install and clean appearance after finish.

This deck railing hardware fits 1/8" OD cable of railing system.

It is designed for timber/wood post.

Cost-Effective



  1. It is make of stainless steel T316 marine grade, featured by a long longevity.
  2. This lag screw system save 25% cost than turnbuckle’s.
  3. Nearly no maintenance required.





Easy Installation



套筒1 300 300
套筒1 300 300





套筒2 300 300
套筒2 300 300





套筒3 300 300
套筒3 300 300



Step 1



  1. Measure and mark holes
  2. Drill holes on the mark, a wood drill bit is included in the package.



Step 2

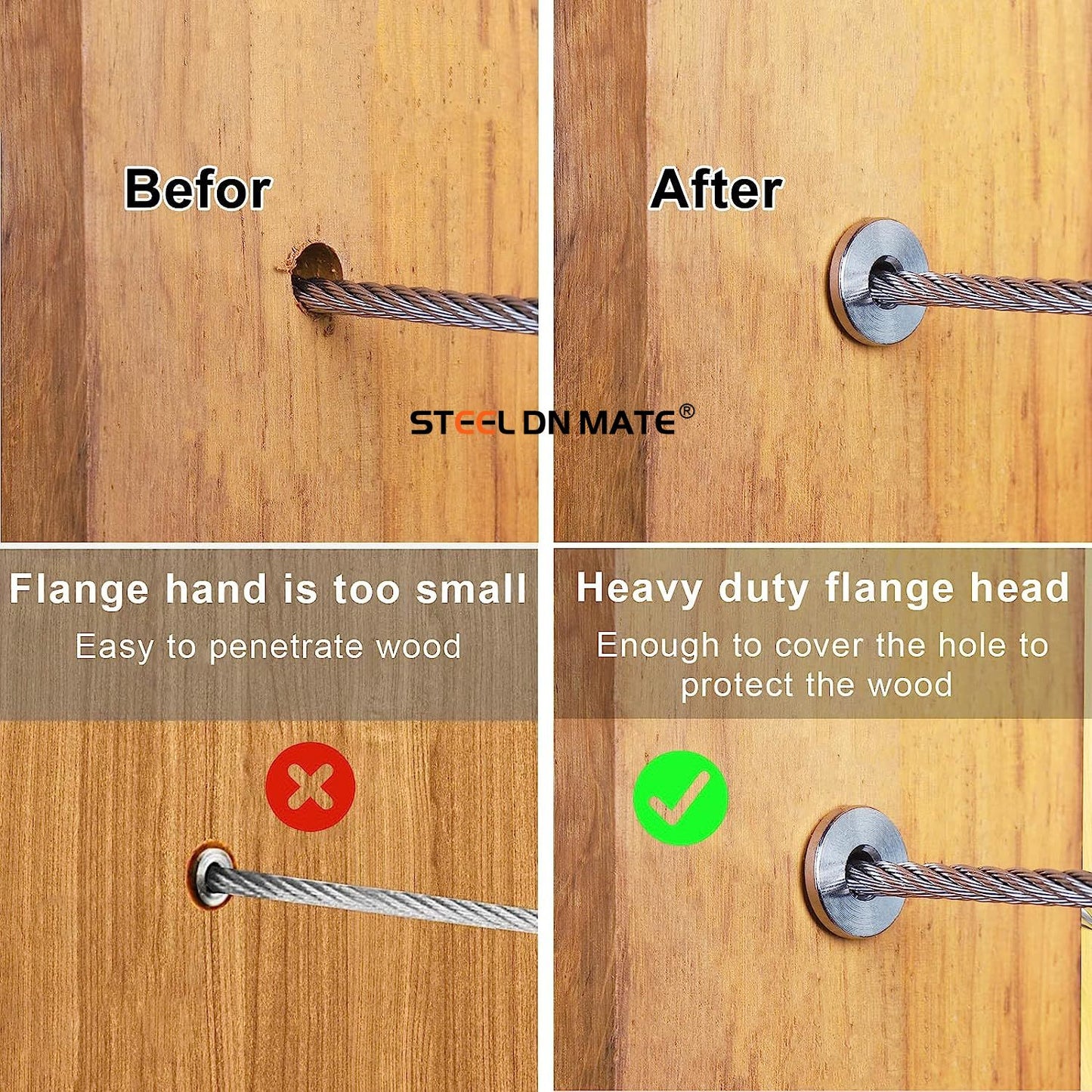

Put the straight protectors into the wood post, pass the 1/8" cable wire through. It is very easy and smooth. The steel protective sleeves will cover the rough holes, make it beautiful, also protect the wood.

Finish

After a simple installation, the level wood post protector brings a nice elegant look to your cable railing system. It never blocks your view when you rest on the deck.




protector sleeves
protector sleeves





sleeves
sleeves





sleeves
sleeves



Caculate QTY of sleeves you'l need

Here is the fomular: 2 × QTY of intermediate posts × QTY of cable runs

We have a complete range of railing system accessories for your project.

Fit for indoor, outdoor; angle sleeve required for Stairway

Whether indoor or outdoor, residential or commercial, our railing kits never get rusty, always provide stylish and modern decoration for railing projects. Angle protector sleeve is recommended for angle stair balustrade.

Work with Swage lag screw in the end posts

Steel DN Mate 1/8" swage lag screw is recommended to work with these stainless protectors, this combines the most cost-effective railing project.


You could install this cable railing hardware on stairs, balconies and decking areas. It is widely used for indoor or outdoor.

de05
de05

Hardware Options

For the above cost-effective Level and Stair cable railing system, material required



  • Swage lag screw DM30 (terminal fitting)
  • 1/8" cable with cutter DW22
  • Hydraulic Crimper DC01----to swage the cable to tube
  • Level protector sleeve DE05 ---install in the middle posts
  • Angle protector sleeve DT05--install in the middle posts ( angle stair balustrade required)
  • Drill jig DG12, help drilling the correct angle, speed up the job



Glass railings and traditional fences require a lot of time to wipe to maintain clean appearance.

In contrast, the cable railing system requires nearly no maintenance.

Scroll down this page to get them from Steel DN Mate

dk11
dk11

FAQ:



  • Install in the intermidiate posts, staight/level lines
  • The maximum distance between two end posts is 16 Feet.
  • That the post spacing between two posts max 4 feet
  • The cable spacing between the 2 cable runs (upper and lower ) is 3"



Note: Some states may have special regulations, check with your local administration for building codes.

Please download the “User Manual (PDF)” under Product guides and documents


3/16
小图 直套筒
mini
小图 斜坡套筒
45度
  Straight Protector Sleeve Wood Protector Sleeve Mini Protector Sleeve 30 degree Angle Protector Sleeve 45 degree Angle Protector Sleeve
Material T316 Marine Grade T316 Marine Grade T316 Marine Grade T316 Marine Grade T316 Marine Grade
What size cable fits 3/16 1/8 1/8 1/8 1/8
Anti-rust
Quality 110 PCS 50 PCS 30 PCS 50 PCS 30 PCS
Degree 30° 45°


小图 钢丝绳
木螺丝小图
小图 液压钳
小图 定位器
  SS316 Steel Cable 1/8" DW22 Swage Lag Screws DM30 Hydraulic Crimper DC01 Drill Guide DG12
Material T316 Marine Grade T316 Marine Grade Metal Aluminium Alloy
What size cable fits 1/8 inch 1/8 inch multiple All
Anti-rust
