Steel DN Mate 100 Pack T316 Stainless Steel Right&Left Handed Thread Swage Lag Screws for Wood Post of 1/8" Steel Cable Railing Kit, Cable Railing Hardware, DIY Wood Baluster, Wrench Include, DM50
Steel DN Mate 100 Pack T316 Stainless Steel Right&Left Handed Thread Swage Lag Screws for Wood Post of 1/8" Steel Cable Railing Kit, Cable Railing Hardware, DIY Wood Baluster, Wrench Include, DM50
Couldn't load pickup availability
This deck railing hardware fits 1/8" OD cable of the cable deck railing system. The thread lag screws are designed for timber/wood posts. It will rotate the wire rope in the same direction, which resolves the problem of twisting the attached wire. This design can make wire deck railing hardware fits last longer.

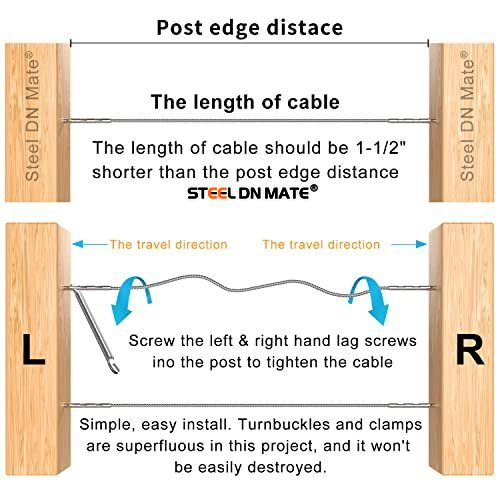

Length of cable should be 1-1/2" shorter than wood surface distance（as shown in pic.4); if you want to build a high-quality cable railing system, standard 1/8" (OD) cable which was made of T316-stainless steel is recommended.

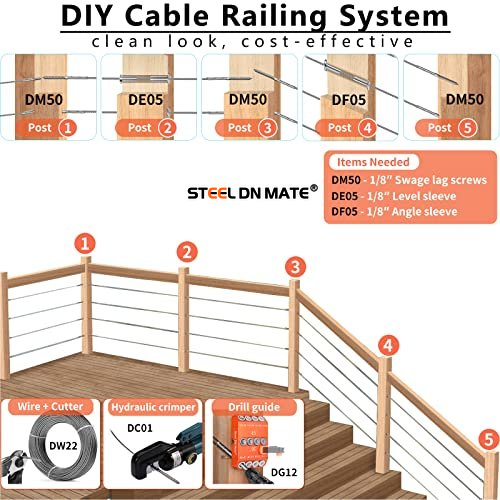

The lag screws could be drilled into wood to adjust the tightness without an extra turnbuckle or tensioner. Deck and Stair Cable railing system is not only simple but also won't block your view. A simple cost-effective cable railing system usually includes 1/8" lag screw DM60, 1/8" steel cable and cutter DW40, hydraulic Crimper DC01.For angle stair railing, drill jig DG12. You can You can scroll down this page to get them.
We have perfect after-sale service. Steel DN Mate offers with a 10-year warranty Free Service. --If you are a new beginner or not sure how to do it, please contact us by clicking on "by Steel DN Mate" below "add to cart." Let's help you, then you can follow the shopping list to buy all the items in 1 minute.
Product Description
Cable Raililng Hardware for level or vertical railings-- All in One Stop Shopping station by Steel DN Mate
Steel DN Mate
Offers different installation cable railing tools:
Must have:
1) 1/8 Stainless Steel Cable, search it : steel dn mate DW40, we have different length from 110ft to 1000ft.

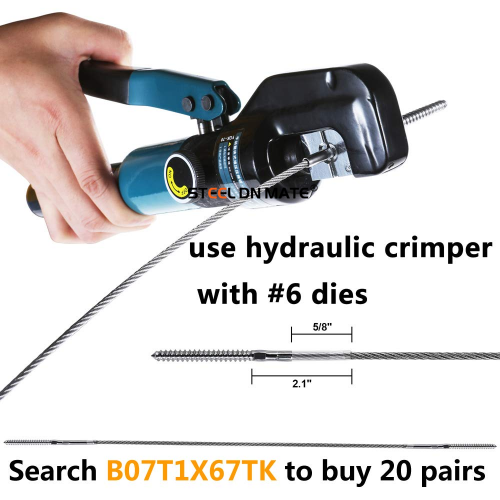

2) Hydraulic crimper: steel dn mate DC01, to connect the steel cable to lag screws
3) Swage lag screw
This swage lag screws system is not only inexpensive, but also it is simple with elegant look, and won’t be easily unfixed or destroyed....

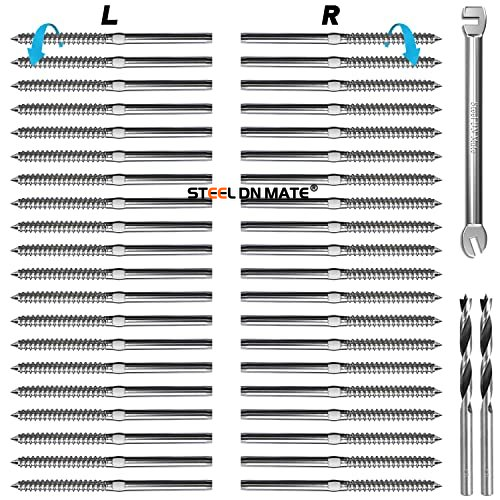

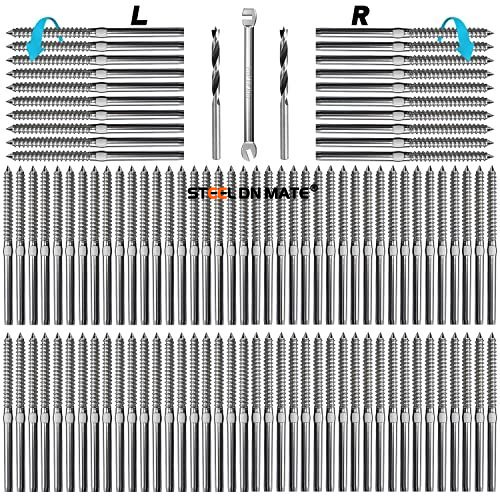

Package includes：
- Left handed thread lag screw：50 Pcs
- Right handed thread lag screw：50 Pcs
- OD drill bit：2 Pcs

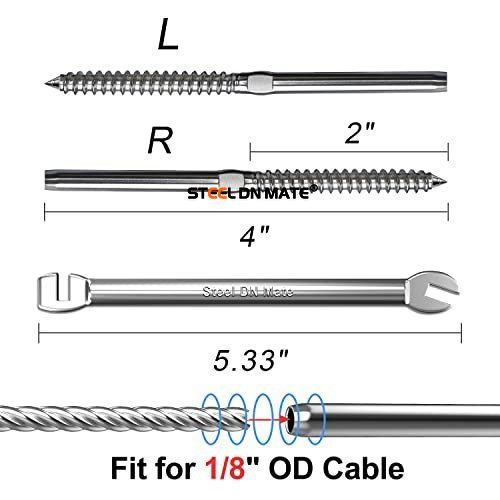

- Steel DN Mate Wrench: 1 Piece
- 50 Cable Runs
- 10 Years warrant-y
- Life-time service
Steel DN Mate---the BEST Quality Handed Thread Swage Lag Screws

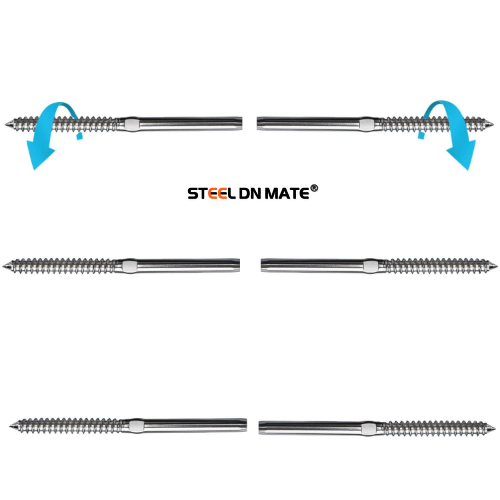

Left & Right Thread Swage Lag Screws
T316 Stainless Steel material, anti-rust ,water and corrosion，marine Grade, good for indoor or outdoor usage.

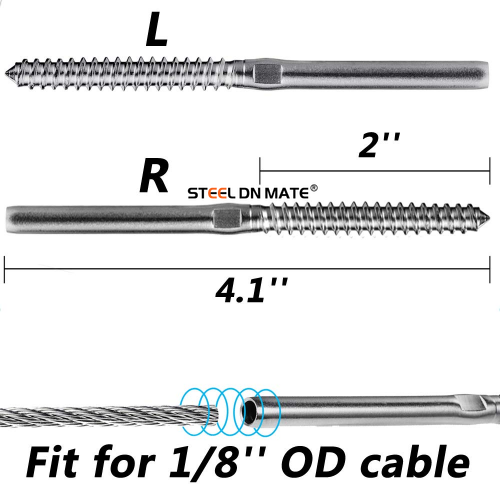

This deck railing hardware fit 1/8" OD cable of railing system.
The thread screws are designed for timber/wood post.
- Stable and Durable
- Clear look
- Easy to install
- Marine Grade waterproof, rust-free, anti-corrosion

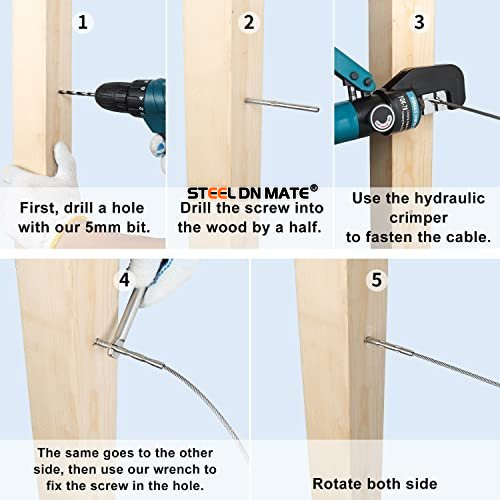

INSTALLATION TIPS
|
|
|
|
|---|---|---|

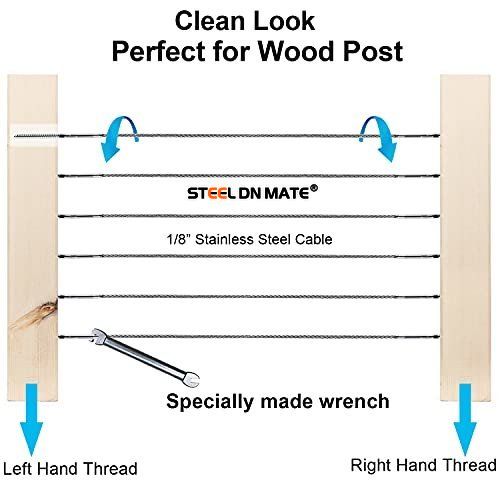

Step 1Drill half threads of the Left & right lag screws into the pilot holes in the posts which have been drilled; then swage the cable to the screws. Note, leave half threads outside of the post. |
Step 2Turn the left lag screws thread in to the left post; Steel DN Mate develop a specially Wrench to make this job very easy and save strength. |
Step 3Turn the right lag screws into the right post in the same direction at the pretty the same time. This way is to avoid cable twisted. |
FEASTURES
|
|
|
|
|---|---|---|
Easy installation-Deck Railing KitIt is very easy and simple with our tools and user guide. One man could DIY the project. |
Marine Grade-Cable Railing HardwareSteel DN Mate deck Railing Kit is made of T316 Marine Grade, it is rust-free, weather-proof. |

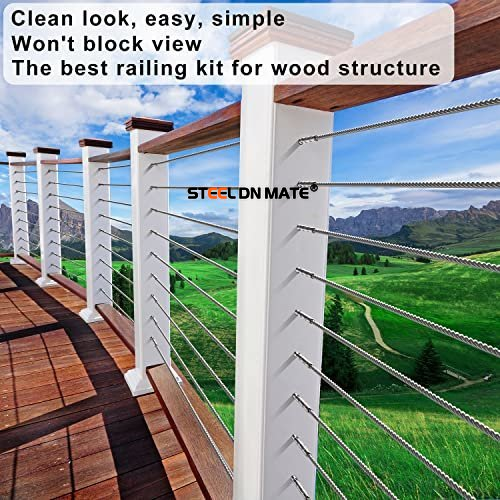

Elegant Look-Deck Railing SystemClear look, it won't block your view, the best inexpensive cable railing. |
Cable Raililng Hardware for wood, posts, level or vertical railings, stair railings-- All in One Stop Shopping station by Steel DN Mate
- The cable length could range from 1-1/8"（tight） to 1-1/2"（tightest) shorter than the post edge distance.
- Recommend the maximum distance between two end posts is 16 Feet.
- Recommend that the post spacing between two posts is 3 to 4feet.
- Recommend that the spacing between the cable space (upper and lower screw holes) is 4".
Note: Some states may have special regulations, check with your local administration for building codes.
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| SDNM T316 Stainless Steel Lag Screws | SDNM T316 Stainless Steel Lag Screws | SDNM T316 Stainless Steel Lag Screws | SDNM T316 Stainless Steel Lag Screws | SDNM T316 Stainless Steel Lag Screws | Black T316 Stainless Swage Lag Screws | |
| Quantity | 20 Packs | 40 Packs | 50 Packs | 60 Packs | 80 Packs | 100 Packs |
| Color | Silver | Silver | Silver | Silver | Silver | Black |
| Material | T316 | T316 | T316 | T316 | T316 | T316 |
| Fit for | Wood | Wood | Wood | Wood | Wood | Wood |
| Fit for Cable Diameter | 1/8” | 1/8” | 1/8” | 1/8” | 1/8” | 1/8” |
| Rust-proof |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Swage Tensioner and Terminal Invisible | T316 Stainless Steel 1/8'' Wire Cable | T316 Stainless Steel Hardware kit | 30 Degree Angle Bevel Protector Sleeves | Cable protector sleeves in post | Steel DN Mate Hydraulic crimper | |
| Material | T316 | T316 | Steel Alloy | T316 | T316 | Metal |
| Rust-proof | ||||||
| For 1/8” cable | ||||||
| Outdoor use | ||||||
| Indoor use | ||||||
| Fit for | Wood/Metal Post | Wood/Metal Post | Drilling Guide | Wood/Metal Post | Wood/Metal Post |
