Steel DN Mate 100 Pack Black T316 Stainless Steel Left&Right Handed Thread Swage Lag Screws for Wood Post of 1/8" Black Cable Railing Kit, Deck Railing/Stair Railing, DIY Baluster kit, Wrench Included

Steel DN Mate 100 Pack Black T316 Stainless Steel Left&Right Handed Thread Swage Lag Screws for Wood Post of 1/8" Black Cable Railing Kit, Deck Railing/Stair Railing, DIY Baluster kit, Wrench Included

$99.99 USD
$132.99 USD $99.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Size
Number of Items
● New design of BLACK deck cable railing kit, clean and elegant. This cable railing hardware is made of stainless steel 316 material, anti-rust, waterproof, and corrosion-resistant, marine Grade, good for indoor or outdoor usage. It is suitable to DIY your stair railings, porch railing, terrace railings, and deck railings, both horizontal /vertical and angle applications. With our specially made wrench, installation becomes much easier.
●This stainless steel cable railing kit fits 1/8" cable railing system. The black swage lag screws are designed for wood posts. It will rotate the wire rope in the same direction, which resolves the problem of twisting or damaging the attached wire. This design can make the wire railing kit for decks last longer. And this cable railing won’t be easily unfixed or destroyed.

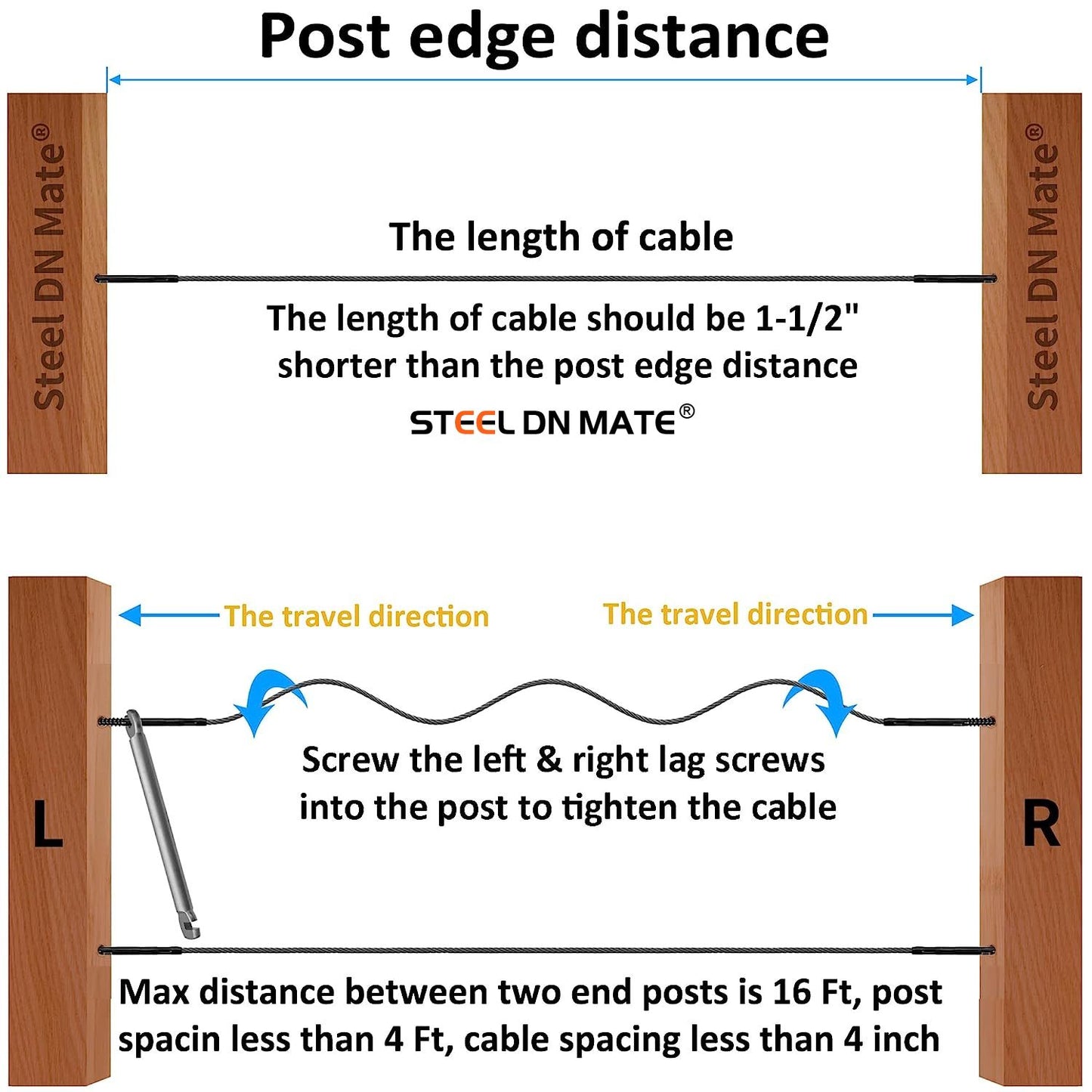

●Length of cable should be 1-1/2" shorter than wood surface distance（as shown in pic.4); if you want to build a high-quality cable wire railing, standard 1/8"(OD) cable which was made of T316-stainless steel is recommended. Maximum distance between the 2 end posts should be within 16Ft, post space less than 4ft, cable spacing less than 4inch.
●The lag screws could be drilled into wood to adjust the tightness without an extra turnbuckle or tensioner. Cable deck railing system is not only simple but also won't block your view. A hydraulic crimper (Search “B08BQVKM2Z” or Model number “DC01” on Amazon) is needed to connect the cable to the thread screws.
●We have perfect before and after-sale service. Steel DN Mate offers a 10 years warranty / Free Service. --If you are a new beginner or not sure how to make it, please contact us by clicking on "by Steel DN Mate" below "add to cart." Let's help you, then you can follow the shopping list to buy all the items in 1 minute. This black cable railing kit includes 50 pcs left, 50 pcs right hand thread lag screws, 1 wrench and 2 drill bits.

Product Description

logo
logo

Cable Raililng Hardware for level or vertical railings-- All in One Stop Shopping station by Steel DN Mate

Are you looking for a concise railing project system?

Look here! It is clean look, easy to install and maintain;

In addition, it is a simple structure with less problem to happen.

size
size

Size

1
1

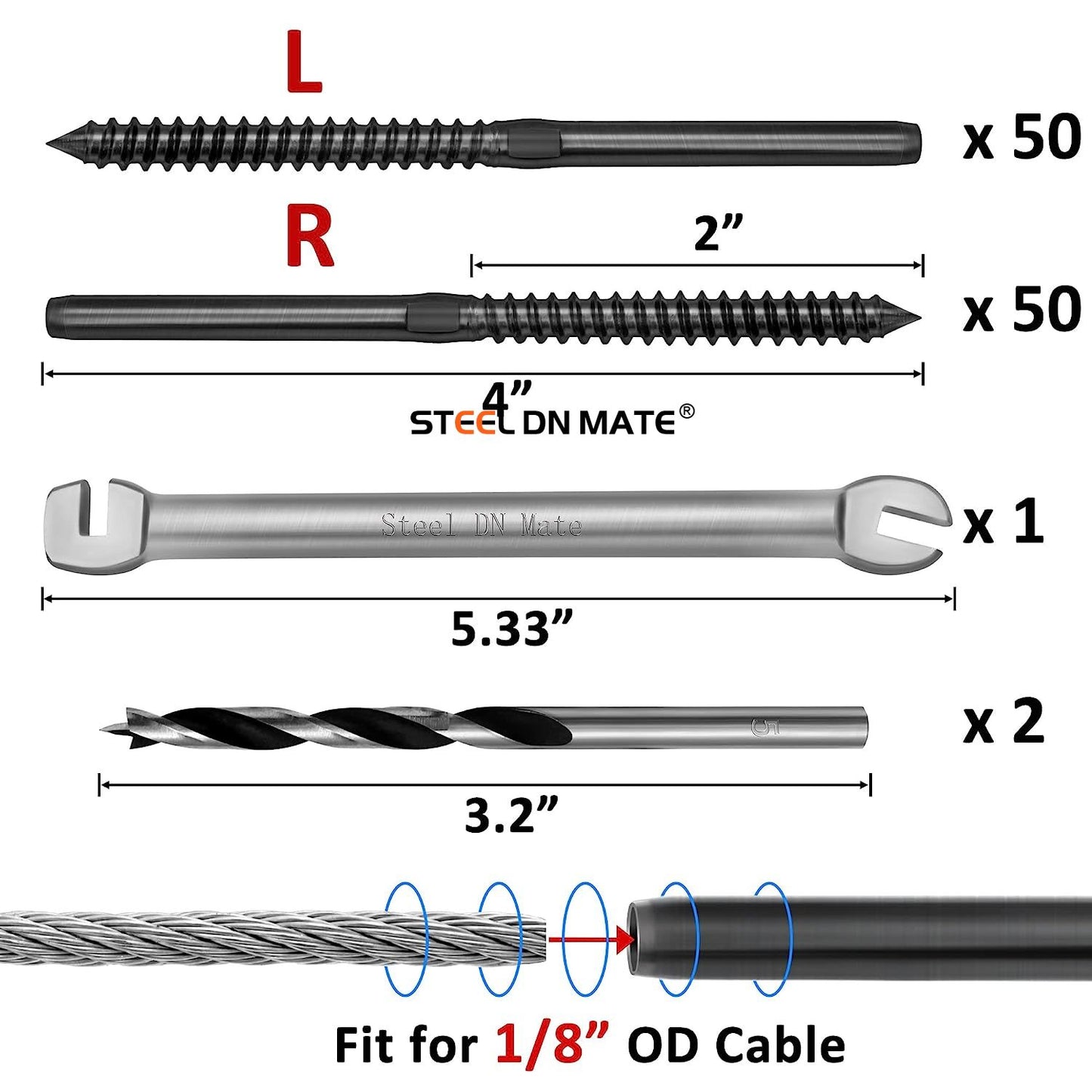

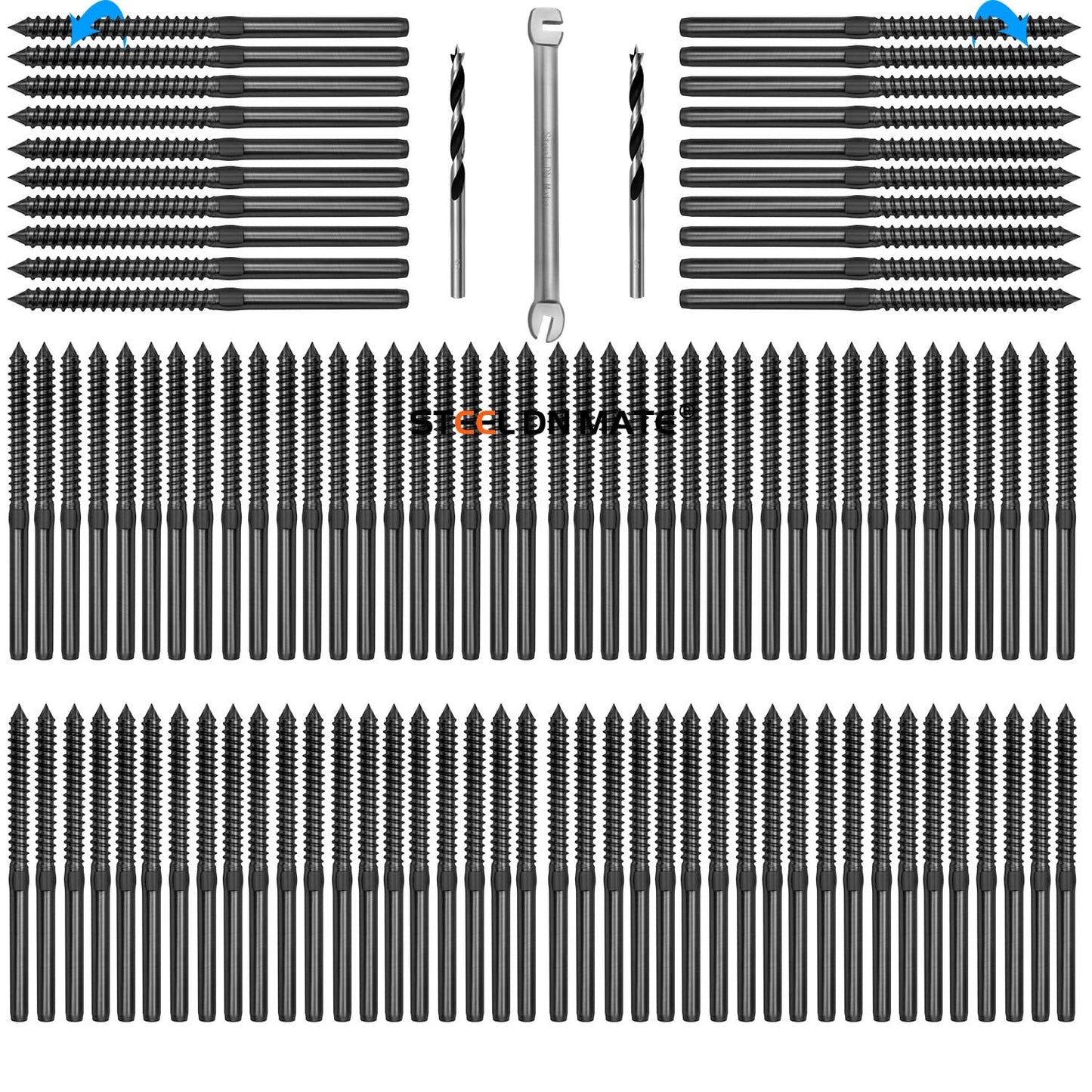

Package includes



  • L - screws：50 Pcs
  • R - screws：50 Pcs
  • Wood drill bit：2 Pcs
  • Wrench: 1 Piece



  • 50 Cable Runs
  • 10 Years warrant-y
  • Life-time service

Best quality Swage Lag Screws

fits for 1/8" cable railing system

T316 Stainless Steel material, anti-rust, water and corrosion, marine grade, good for outdoor/indoor cable railing;

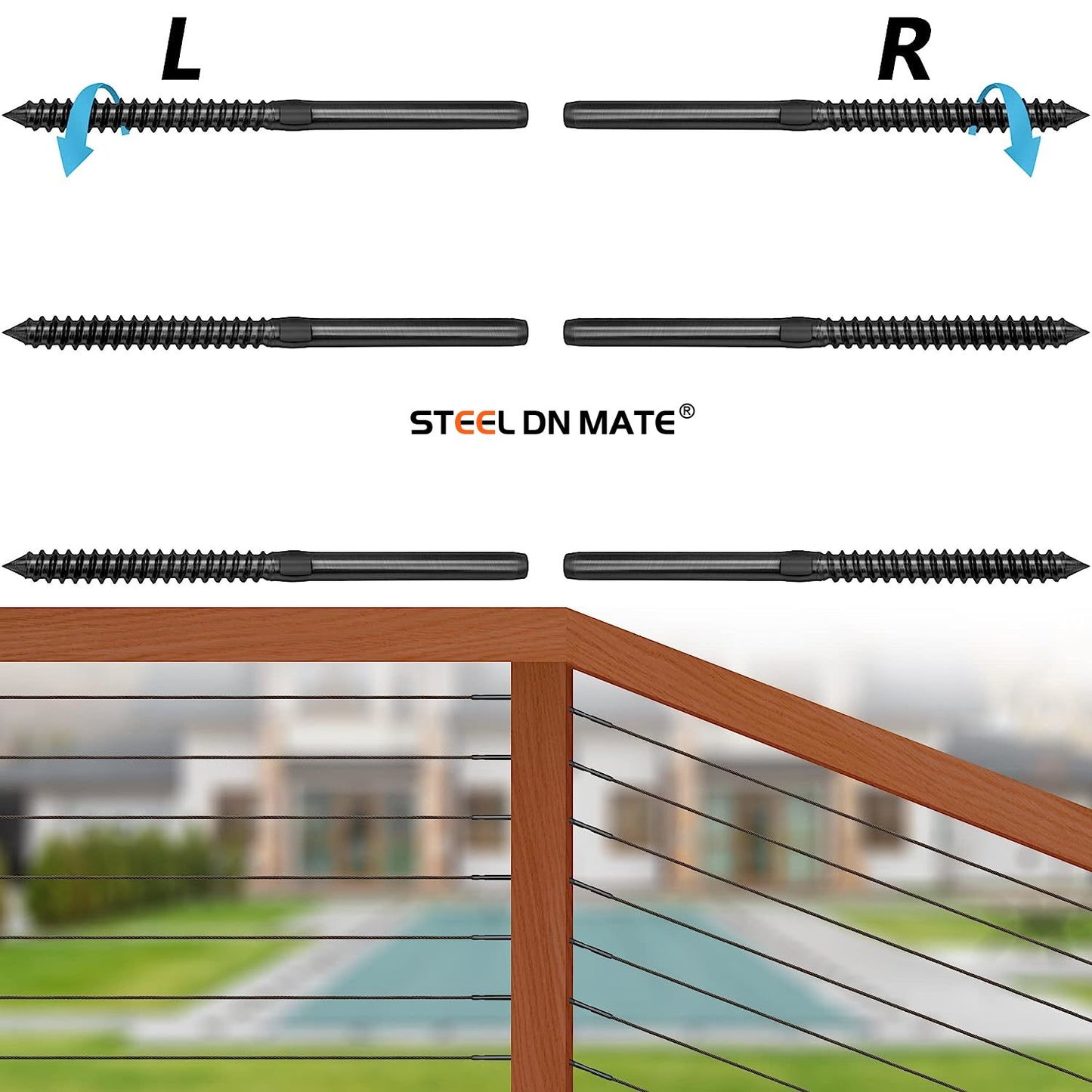

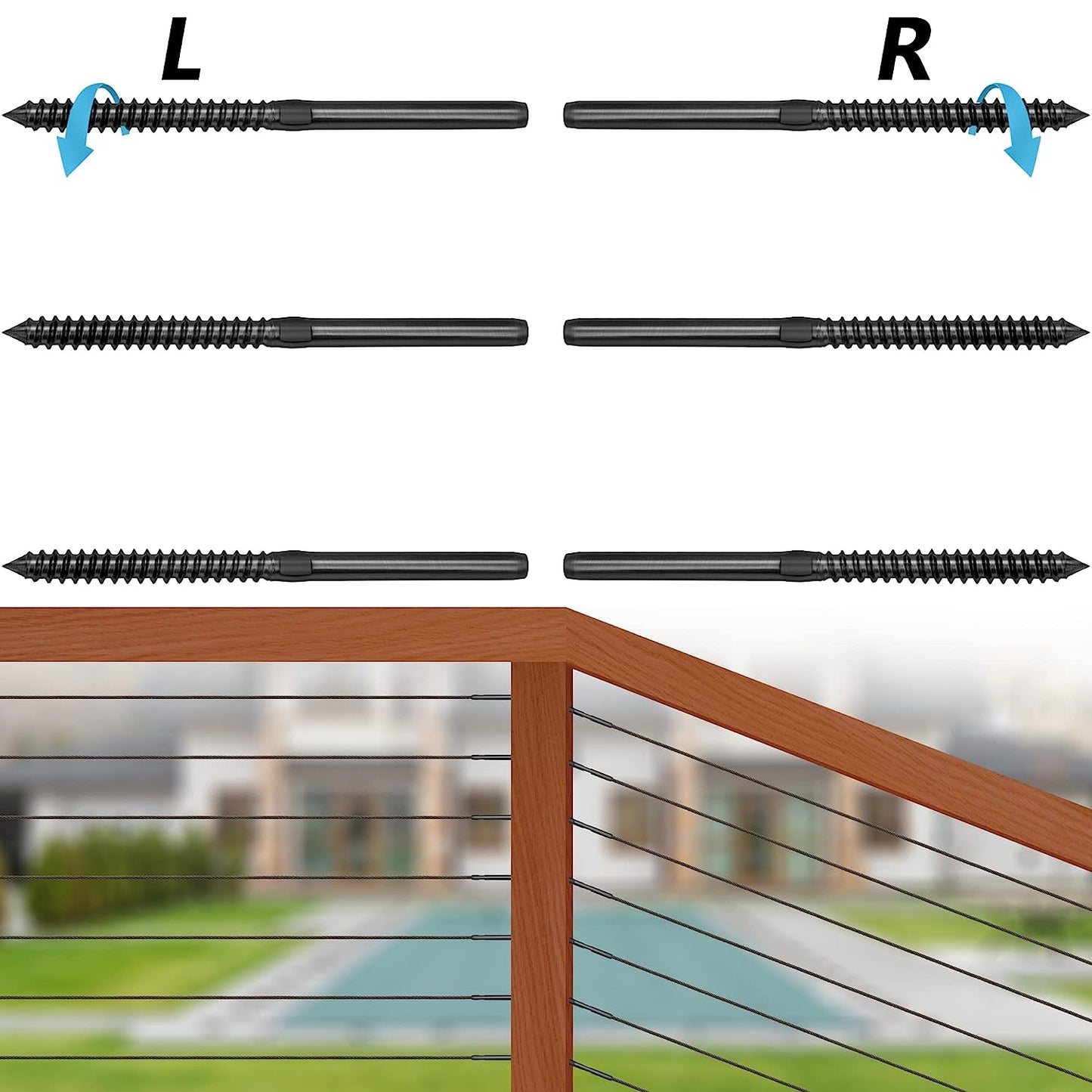

The Left & Right handed thread swage lag screws are simple fittings for cable railing system, very easy to install.

  • Stable and Durable
  • Clear look
  • Never rust
  • Easy to install
  • Designed for timber/wood post

screws
screws

Installation Tips:



  • Cable Length could range from1-1/8"（tight） to 1-1/2"（tightest） shorter than wood distance.
  • Recommended the maximum distance between two end posts is 16 Ft.
  • Recommended that the post spacing between two posts is 4ft.
  • Recommended that the spacing between the upper and lower screw holes is 4".



Note: Some states may have special regulations, check with your local agency for building codes.

Easy to install--deck cable railing system



1-1
1-1





1-2
1-2





1-3
1-3

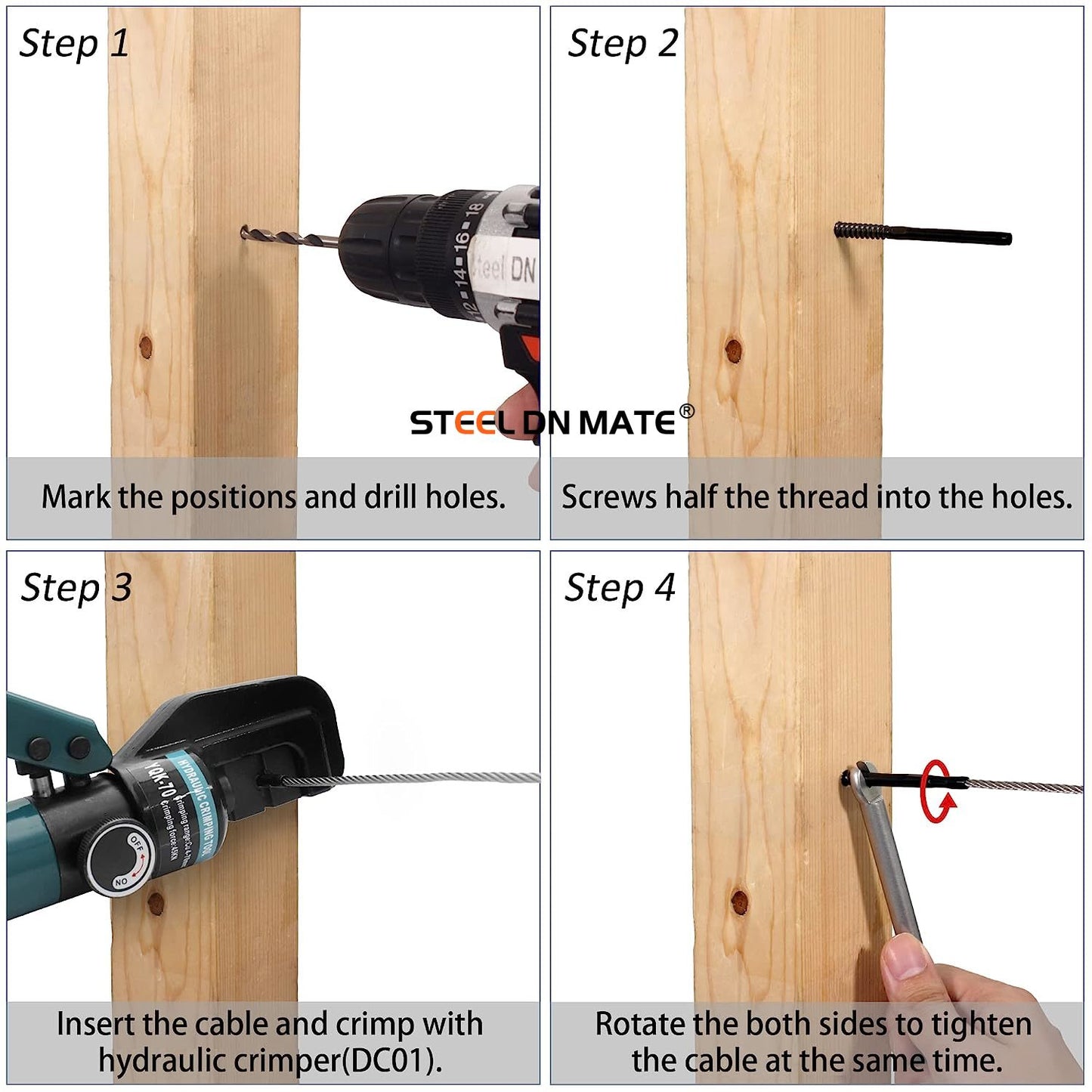

Step 1

Drill holes, then screws half threads of the Left & right lag screws into the holes to wood posts which have been drilled. Note, leave half threads outside of the post.

Step 2

Insert the measured wire rope, then swage the cable to the screws with the crimping tool. To make it more stable, it is recommended to swage each screw twice.

Step 3

Use our specially Wrench, turn the right lag screws into the right post in the same direction at the same time. This way is to avoid cable twisted.


FEASTURES



3-2
3-2





clean look
clean look





stair
stair



Cost effective--Deck Cable Railing System

It is simple fittings, it can replace the complicated turnbuckle and other cable kits. Very easy to install and build cable railing system by your own self.

Elegant Look-Stair Railing Kit

Clear look, it won't block your view, the perfect inexpensive cable railing system, fit for stair, level, vertical cable railing project. A great choice for minimalist style.

Special Tool-Easy Installation

Thickness of other wrenchs opening doesn’t fit lag screws well, so we develop a specially Wrench to make this job very easy and save strength.


One-stop shopping store

end
end

Must have:

1) 1/8 Stainless Steel Cable, search it : B07YY46T7M, or Model number DW40, we have different length from 110ft to 1000ft.

2) Hydraulic crimper: B08BQVKM2Z, or Model number DC01

In the above picture, it is a level cable railing with stair angle cable railing, we use black swage lag screws, level protecor sleeves, search: B09F6B7SGZ or Model number DP10; and angle 30 degree protector sleeves, search B08L3H69R6 or Model number DT05.

We can also use just swage lag screws only to complete this cable railing systm without the sleeves.

This swage lag screws system is not only inexpensive, but also it is simple with elegant look, and won’t be easily unfixed or destroyed....

To build your own cable railing project

We offers different installation cable railing tools, please scroll down to get other items from Steel DN Mate that you need:


black
钢丝绳
液压钳
angle 小图
1/8 小图
11
  Swage Lag Screws 1/8" Steel Cable Hydraulic Crimper Angle Beveled Protector Sleeves Level Protector Sleeves 45 30 90 Degree Drill Guide
Material T316 T316 Steel T316 T316 Metal
Rust-proof
For 1/8” cable
Indoor / Outdoor
Fit for Wood Instructure All All Wood Instructure Wood Instructure Wood Instructure
Color Black Silver Silver Silver Silver Orange
